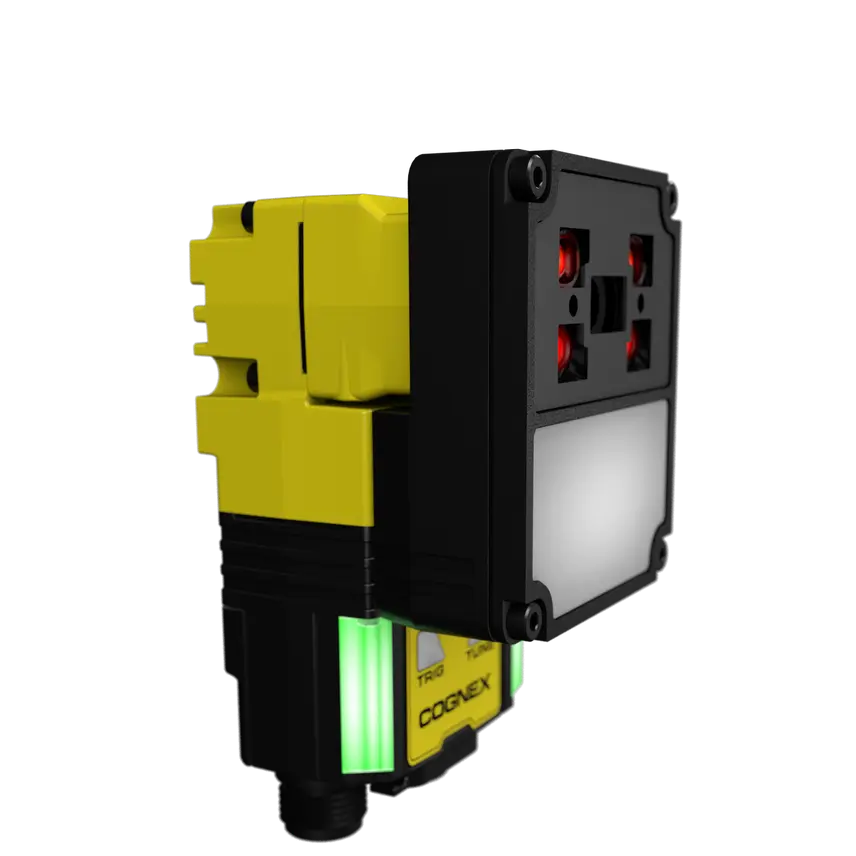

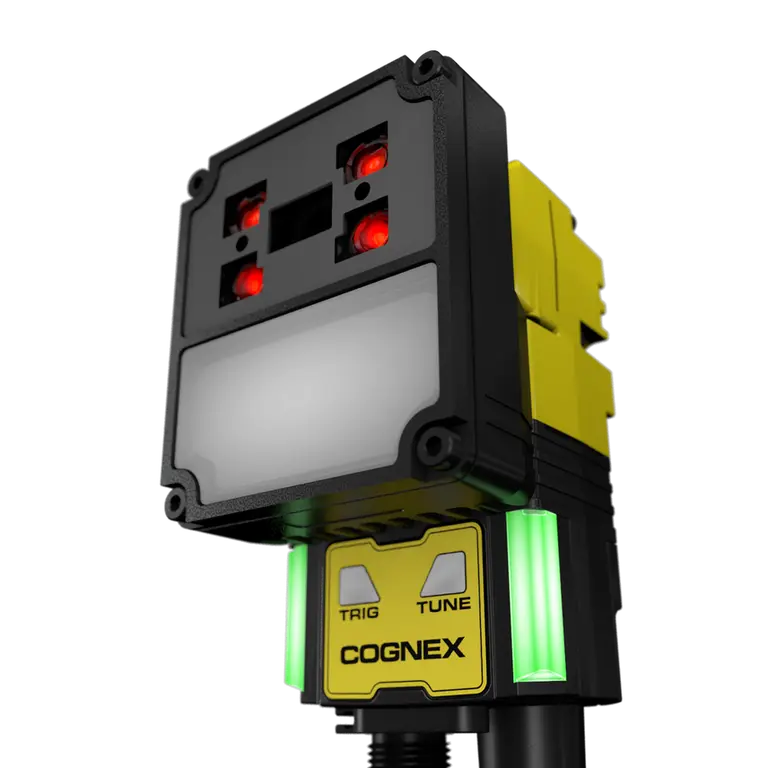

Cognex DataMan 290
Çok çeşitli barkod okuma zorluklarının üstesinden gelmek için tasarlandı
- Üstün Teknoloji ile Lider Performans: Yerleşik yapay zeka, gelişmiş kod çözme algoritmaları ve güçlü aydınlatma sistemi sayesinde her türlü ortamda sektör lideri okuma oranları sunar.
- Koşulsuz Uyumluluk: Sektörünüz, barkod kaliteniz veya uygulama karmaşıklığınız ne olursa olsun, tüm zorlu şartlarda sorunsuz çalışır.
- Maksimum Operasyonel Verimlilik: Bu yeni nesil sabit montajlı tarayıcı; güvenilir, doğru ve verimli bir tarama süreci sağlayarak operasyonlarınızın kesintisiz ilerlemesini garanti eder.
Doğru seçim için destek olabiliriz: +90 533 049 96 24
08:30 – 17.30 | Pazartesi – Cumartesi
08:30 – 17.30 | Pazartesi – Cumartesi
Ürün Özellikleri
Açıklama
Optimize your read rates with AI at every step
Find: AI-guided positioning and tuning
Real-time positioning feedback ensures the reader is at the best distance from the code. Then the AI helps you easily find the right settings with automated tuning.
Enhance: AI-enhanced decoding
Increase image quality and decode damaged or low-quality codes for more reliable code reading.
Read: AI-powered analysis
Read all code types, including obscured, distorted, or challenging codes with factory-proven decoding algorithms.
Go from unboxing to scanning in minutes
The intuitive web-based UI for the DataMan 290 guides you step-by-step through setup, and AI positioning and tuning save time, reduce errors, and ensure accurate results. If you need additional help, customized training and startup resources are immediately available when you first connect.
Note: For advanced use cases or existing installations, use the DataMan Setup Tool to customize the solution to your specific needs and maintain continuity with your current setup.

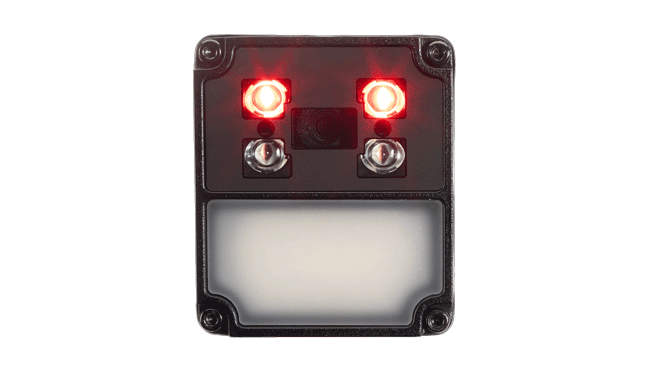

Unified design offers flexible performance
Fully integrated, all-in-one light
Illuminate every code, even in the hardest-to-see environments, for more reliable scanning.
Proprietary image-based decoding
Achieve industry-leading read rates for all code types, even damaged or incomplete codes, maximizing efficiency and throughput.
Compact, space-saving form factor
Seamlessly deploy in any manufacturing environment, including crowded machines and space-constrained production lines.
Multiple communication options
Ensure fast, easy integration with the factory floor.

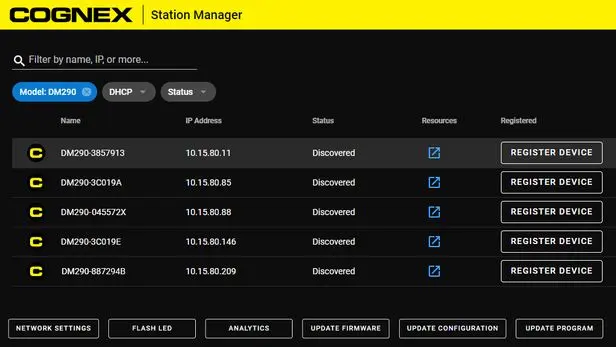

Easily manage devices and access support, all in one place
Connect and manage multiple devices, set up your application, and enhance your performance with Cognex Station Manager.
Teknik Özellikler
Teknik Özellikler
Imaging and Performance
| Specifications | DataMan 290 |
|---|---|
| Image Resolution (MP) | 1.6 |
| Lens Mount Type | Integrated |
| Acquisition Speed (fps) | 45 |
| Light Type | Multi-Purpose Integrated Light: 4 LED lights (red), and 1 Diffused light (white) for 6.2 mm and 16 mm lens. Front cover options: (2) polarized, (2) direct and diffuse. Mini Light: 4 LED high-powered lights (red) for 6.2 mm and 16 mm lens. Front cover options: polarized, half-polarized and clear |
Connectivity and Communications
| Specifications | DataMan 290 |
|---|---|
| Discrete Inputs | 4 opto-isolated |
| Discrete Outputs | 2 opto-isolated |
| Status Outputs | Lights |
| Connectors | M12 8 Pin X-Coded, USB-C, M12 12 Pin A-Coded |
| Network Communications | 1 Ethernet port, 1 USB-C port |
| Communication Protocols | SLMP, SFTP, MRS, NTP, FTP, Modbus TCP, PROFINET, Ethernet/IP, TCP/IP |
Power and Electrical
| Specifications | DataMan 290 |
|---|---|
| Average Power Consumption (W) | 7.5 |
Physical and Environmental
| Specifications | DataMan 290 |
|---|---|
| Maximum Operating Temperature (°C) | 45 |
| Minimum Operating Temperature (°C) | 0 |
Reliability and Compliance
| Specifications | DataMan 290 |
|---|---|
| Certifications | TÜV SÜD NRTL, IEC 61010, CE, EU RoHS, UL, BIn-Sight, KCC |
