Cognex DataMan 8700
Çok çeşitli barkod okuma zorluklarının üstesinden gelmek için tasarlandı
- Üstün Teknoloji ile Lider Performans: Yerleşik yapay zeka, gelişmiş kod çözme algoritmaları ve güçlü aydınlatma sistemi sayesinde her türlü ortamda sektör lideri okuma oranları sunar.
- Koşulsuz Uyumluluk: Sektörünüz, barkod kaliteniz veya uygulama karmaşıklığınız ne olursa olsun, tüm zorlu şartlarda sorunsuz çalışır.
- Maksimum Operasyonel Verimlilik: Bu yeni nesil sabit montajlı tarayıcı; güvenilir, doğru ve verimli bir tarama süreci sağlayarak operasyonlarınızın kesintisiz ilerlemesini garanti eder.
Doğru seçim için destek olabiliriz: +90 533 049 96 24
08:30 – 17.30 | Pazartesi – Cumartesi
08:30 – 17.30 | Pazartesi – Cumartesi
Ürün Özellikleri
Açıklama
Patented decoding technology and powerful features deliver unmatched read rates
Robust decoding algorithms
DataMan 8700 is equipped with the latest decoding algorithms, high-resolution imaging, autofocus technology, and a multi-core processor to read codes in under 150 milliseconds. Integrated diffuse, polarized, and direct lighting enables superior image formation to read dot peen, laser-etched, and label-based codes on challenging surfaces.
Oil- and water-resistant housing
DataMan 8700 readers are built tough to stand up to harsh manufacturing environments. With IP67-rated housing, handheld DataMan 8700 readers meet ISO oil-resistance standards, function in up to one meter of water, and withstand multiple drops from 2.5 meters onto concrete.
Intuitive design for optimal efficiency

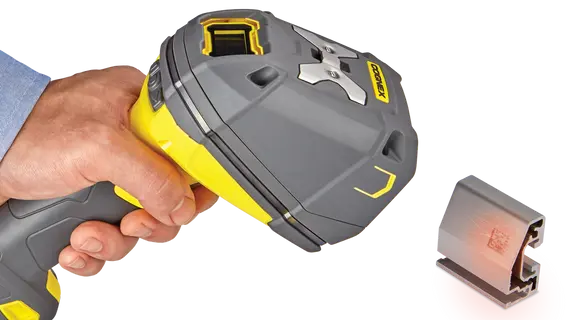

The DataMan 8700 features an OLED display and on-device controls for PC-free setup, a Web UI for quick configuration, and a data dashboard displaying IP, signal strength, and battery life. Operators benefit from clear feedback via audio, visual, and haptic signals, ensuring optimal scanning performance.
Easy connectivity with Wi-Fi and Bluetooth
The DataMan 8700 offers seamless connectivity with on-board industrial protocols and flexible options: Wi-Fi for mobility, Bluetooth for smart devices or base stations, and corded connections via USB, RS-232, or Ethernet. These features ensure reliable integration with PLCs and networks for efficient barcode scanning in any environment.

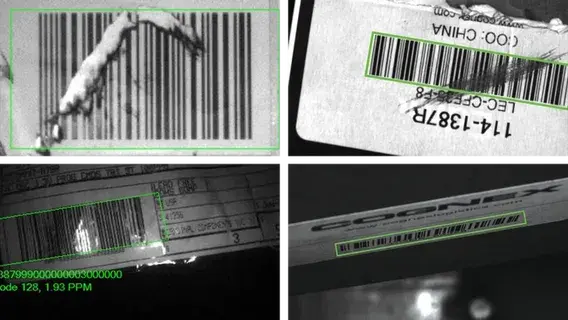

Premium features capture codes in milliseconds for higher throughput
Omnidirectional 1D barcode reading
Decode low-resolution codes up to 10X faster than conventional barcode readers.
Advanced 2D code scanning
Read damaged 2D codes, even those missing finder patterns, clocking patterns, or quiet zones.
High dynamic range (HDR) technology
Accurately read low-contrast codes using an advanced image sensor that minimizes noise, improves saturation, and captures clear images even in low light.
High-speed, multi-core processor
Achieve ultra-fast decode times, allowing operators to scan codes more quickly and efficiently.

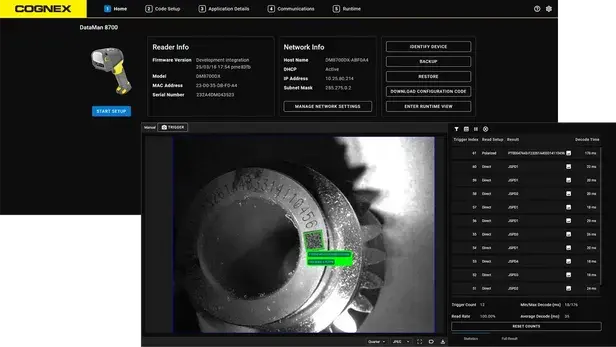

Go from unboxing to scanning barcodes in minutes, no software needed
The intuitive browser-based DataMan Web UI guides you step-by-step through setup and configuration to save time, reduce errors, and ensure accurate results. If you need additional help, customized training and startup resources are immediately available when you first connect.
Note: For advanced use cases or existing installations, use the DataMan Setup Tool to customize the solution to your specific needs.
Three options for seamless connectivity
Bluetooth Direct Connect
Pair your reader to a phone, PC, or tablet to view and populate codes on a smart device.

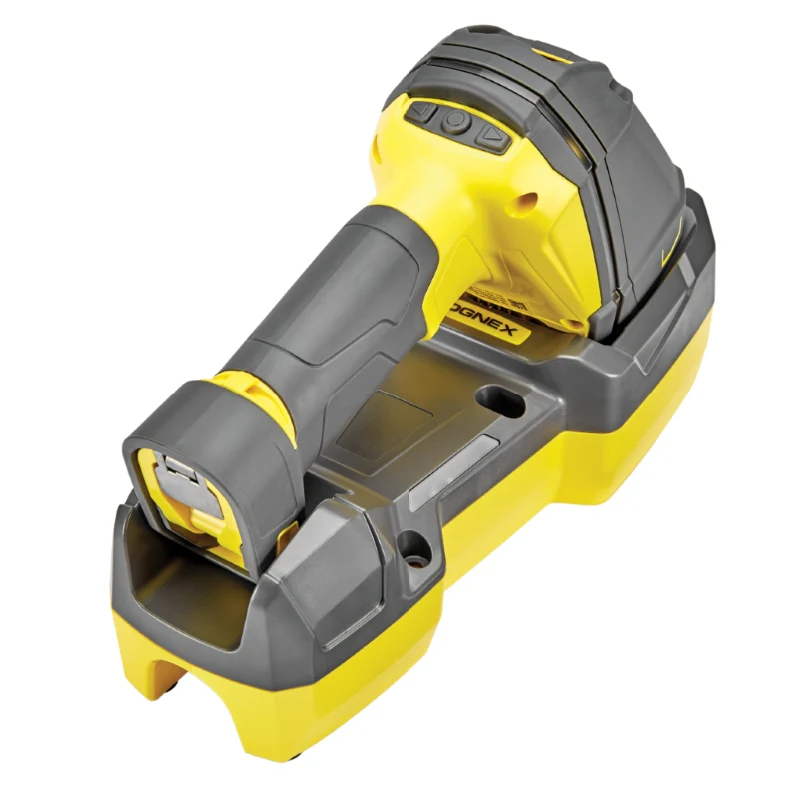

Bluetooth to Intelligent Base Station
Communicate with a PLC or PC via Ethernet with industrial protocols, serial RS-232, or USB.

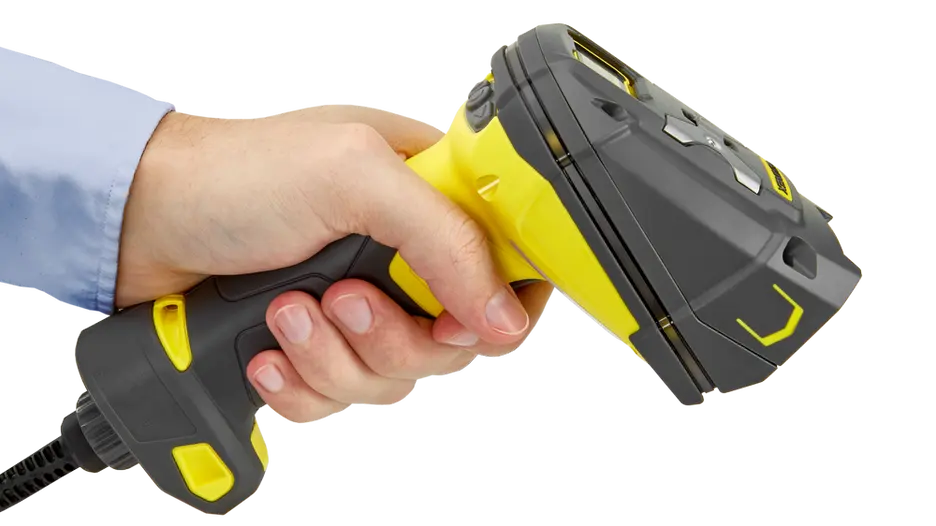

Corded
Continuously communicate with USB, RS-232, and Ethernet with industrial protocols.
Teknik Özellikler
Teknik Özellikler
Imaging and Performance
| Specifications | DataMan 290 |
|---|---|
| Image Resolution (MP) | 1.6 |
| Lens Mount Type | Integrated |
| Acquisition Speed (fps) | 45 |
| Light Type | Multi-Purpose Integrated Light: 4 LED lights (red), and 1 Diffused light (white) for 6.2 mm and 16 mm lens. Front cover options: (2) polarized, (2) direct and diffuse. Mini Light: 4 LED high-powered lights (red) for 6.2 mm and 16 mm lens. Front cover options: polarized, half-polarized and clear |
Connectivity and Communications
| Specifications | DataMan 290 |
|---|---|
| Discrete Inputs | 4 opto-isolated |
| Discrete Outputs | 2 opto-isolated |
| Status Outputs | Lights |
| Connectors | M12 8 Pin X-Coded, USB-C, M12 12 Pin A-Coded |
| Network Communications | 1 Ethernet port, 1 USB-C port |
| Communication Protocols | SLMP, SFTP, MRS, NTP, FTP, Modbus TCP, PROFINET, Ethernet/IP, TCP/IP |
Power and Electrical
| Specifications | DataMan 290 |
|---|---|
| Average Power Consumption (W) | 7.5 |
Physical and Environmental
| Specifications | DataMan 290 |
|---|---|
| Maximum Operating Temperature (°C) | 45 |
| Minimum Operating Temperature (°C) | 0 |
Reliability and Compliance
| Specifications | DataMan 290 |
|---|---|
| Certifications | TÜV SÜD NRTL, IEC 61010, CE, EU RoHS, UL, BIn-Sight, KCC |
