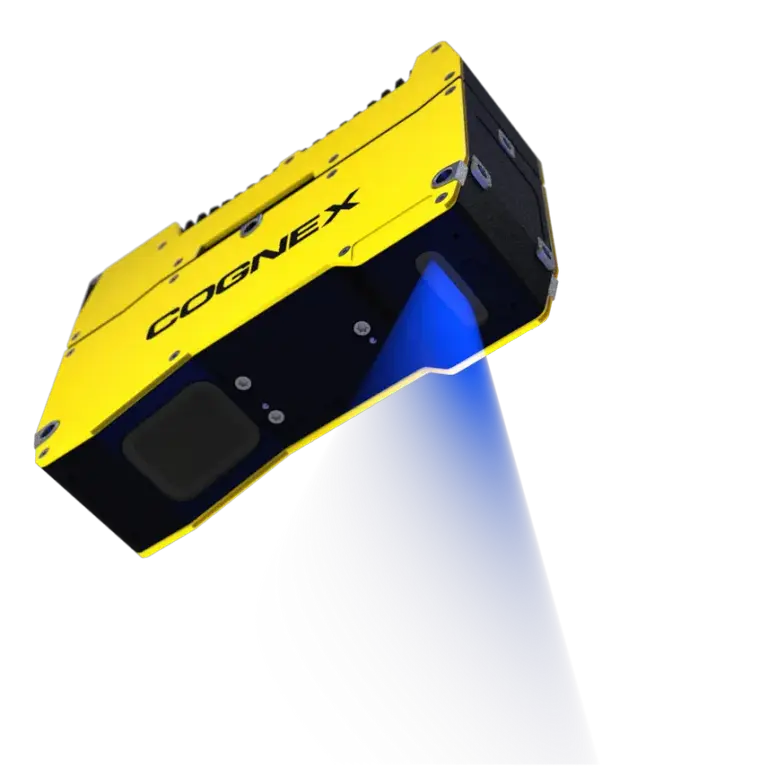

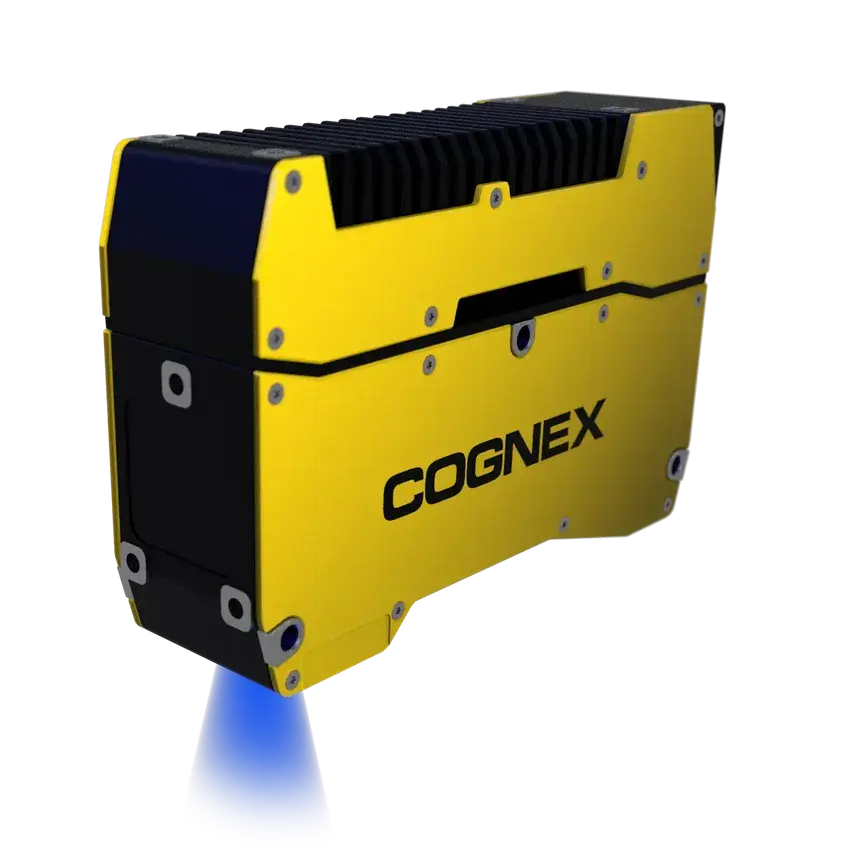

Cognex In-Sight L38 3D Görüntüleme
Yapay zeka ve 3D teknolojisiyle desteklenen daha akıllı, daha güvenilir otomasyon.
- Gömülü yapay zeka ve gelişmiş görüntüleme ile optimize edilmiş doğruluk ve hız.
- Sezgisel kurulum ve hızlı devreye alma ile daha yüksek verimlilik.
- Birleşik ve esnek bir görüntüleme platformu tarafından desteklenen ölçeklenebilir otomasyon.
Doğru seçim için destek olabiliriz: +90 533 049 96 24
08:30 – 17.30 | Pazartesi – Cumartesi
08:30 – 17.30 | Pazartesi – Cumartesi
Ürün Özellikleri
Açıklama
Improve reliability and throughput with AI and powerful optics

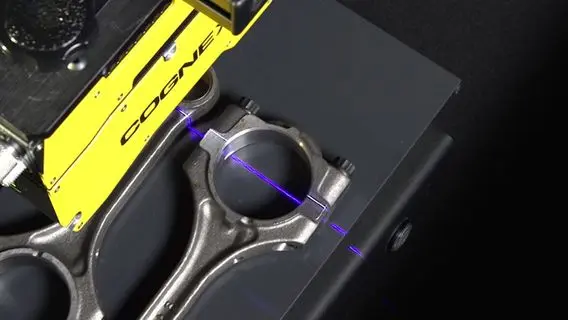

Integrated lighting technology optimizes image formation
In-Sight L38 features built-in advanced optics, eliminating the need for external lighting. Speckle-free, high-powered lasers enhance contrast, even on challenging surfaces, producing high-resolution images that boost inspection accuracy.
Embedded AI reveals fine details for better quality control
Advanced AI detects subtle, variable defects and delivers precise 3D measurements to assess the severity of anomalies. This enables more reliable results, helping maintain consistency and quality throughout production.
Patented, speckle-free laser
- Minimizes speckle and glare, common problems for 3D laser systems.
- Captures higher resolution images than traditional laser displacement sensors.
- Delivers the most consistent laser in the industry for more reliable scanning.
Unique, high-powered laser line
- Delivers fast acquisition rates to support high line speeds.
- Meets Class 2 safety standards, eliminating the need for expensive enclosures and allowing users to make adjustments without stopping the line.
- Offers 5X more light than conventional sensors to enable image acquisition at greater distances.
3D defect detection with 2D training
Easily define a region of interest on a 3D point cloud and train defect classes using a 2D projection image. These unique projections combine rich 3D data into a simplified 2D format, making it easier to label and detect defects, like scratches or dents, while delivering real-world measurements, including volume, area, and height.
Solve complex applications with a single AI tool
Conventional methods often require multiple vision tools to detect and measure hard-to-see defects. The In-Sight L38 simplifies this process with a single AI-powered detection tool that identifies subtle anomalies, quantifies 3D variances, and delivers results in real-world units, streamlining workflows while ensuring reliable inspections.
Scale smarter with a common, flexible vision platform

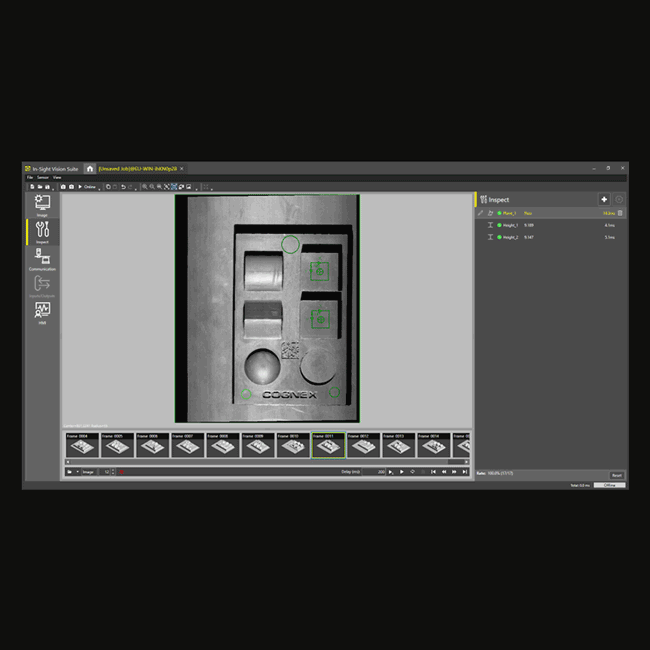

Unified software platform for all In-Sight devices
In-Sight Vision Suite delivers a unified, user-friendly software experience across all In-Sight vision systems. By working within a single consistent environment, your team can reduce training time, streamline deployment, and scale automation easily.
Full suite of tools meets a range of automation needs
The In-Sight L38 combines AI, 2D, and 3D vision tools in a single system to handle everything from simple inspections to complex measurements. Al detects subtle and variable features, while rule-based tools provide accurate 3D measurements.
AI-powered segmentation
Easily isolate areas of interest, like defects or key components, for targeted inspection. Simply mark the regions to inspect, and the tool learns to identify them, even on parts with variations and complex backgrounds.
AI-powered classification
Automatically categorize parts or defects based on user-defined characteristics. This tool differentiates between visually similar items and can inspect multiple areas at the same time.
AI-powered optical character recognition (OCR)
Read a variety of text and font types, even on challenging surfaces like curved, reflective, or low-contrast materials. Choose from a pre-configured mode for simpler tasks or train the system for more advanced applications.

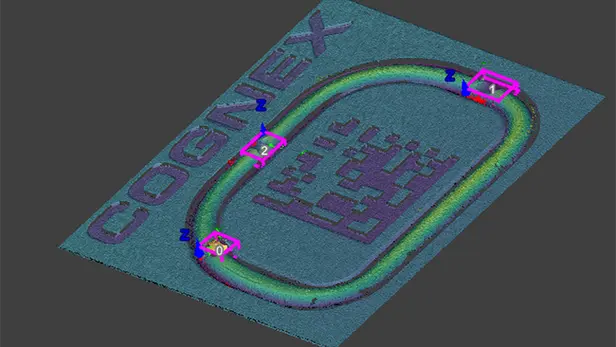

3D bead inspection
Purpose-built for inspecting gaskets and glue beads, the 3D bead inspection tool gauges the width and height along the entire length of the bead or gasket, detecting defects, measuring variances, and providing precise 3D measurements.
Teknik Özellikler
Teknik Özellikler
Imaging and Optical Performance
| Specifications | ISL38-33 | ISL38-50 | ISL38-100 | ISL38-300 | ISL38-500 |
|---|---|---|---|---|---|
| Wavelength (nm) | – | – | – | 450 (blue), 640 (red) | – |
| Laser Class | 2M | 2M | 2M | 2M | 2M |
| X Resolution Top (µm) | – | – | – | 49.5 | – |
| X Resolution Bottom (µm) | – | – | – | 239.6 | – |
| Z Resolution Top (µm) | – | – | – | 6.9 | – |
| Z Resolution Bottom (µm) | – | – | – | 147.5 | – |
| Z Repeatability Mid (µm) | – | – | – | 2 | – |
Connectivity and Communications
| Specifications | ISL38 (All Models: 33, 50, 100, 300, 500) |
|---|---|
| Discrete Inputs | Trigger, differential/single ended encoder, laser interlock |
| Discrete Outputs | 2 Discrete Outputs |
| Connectors | M12 8 Pin X-Coded, M12 12 Pin A-Coded |
| Network Communications | IEEE 802.3 TCP/IP Protocol, 10/100/1000, 1 Ethernet port |
| Communication Protocols | Ethernet/IP, TCP/IP, SLMP, RS-232, SFTP, Ethernet/IP, FTP, Modbus TCP, OPC/UA, PROFINET |
Power and Electrical
| Specifications | ISL38 (All Models: 33, 50, 100, 300, 500) |
|---|---|
| Average Power Consumption (W) | 18 |
Physical and Environmental
| Specifications | ISL38-33 | ISL38-50 | ISL38-100 | ISL38-300 | ISL38-500 |
|---|---|---|---|---|---|
| Height (mm) | 101 | 101 | 101 | 101 | 101 |
| Length (mm) | 150 | 150.5 | 150.5 | 150.5 | 250.5 |
| Width (mm) | – | – | – | 45 | – |
| Weight (g) | – | – | – | 940 | – |
| Maximum Operating Temperature (°C) | 45 | 45 | 45 | 45 | 45 |
| Minimum Operating Temperature (°C) | 0 | 0 | 0 | 0 | 0 |
| Maximum Storage Temperature (°C) | 70 | 70 | 70 | 70 | 70 |
| Minimum Storage Temperature (°C) | -20 | -20 | -20 | -20 | -20 |
| Materials | – | – | Aluminum | Aluminum | – |
Reliability and Compliance
| Specifications | ISL38 (All Models: 33, 50, 100, 300, 500) |
|---|---|
| Certifications | RoHS, TÜV SÜD NRTL, CE, FCC, KCC, UK CA |
