Banner Q20 Serisi Fotoelektrik Sensör
Banner Q20 Serisi, endüstri standardı 18 mm vidalı silindirik gövdeye sahip, çok yönlü fotoelektrik sensörler sunar. Yüzlerce farklı sensörün yerine kullanılabilir, IP67 ve NEMA 6 koruma sınıfı ile zorlu ortamlarda güvenle çalışır. Karşılıklı, reflektörlü, cisimden yansımalı ve lazer modelleriyle 20 m’ye kadar menzil sunar.
Doğru seçim için destek olabiliriz: +90 533 049 96 24
08:30 – 17.30 | Pazartesi – Cumartesi
08:30 – 17.30 | Pazartesi – Cumartesi
Ürün Özellikleri
Açıklama
Ürün Özellikleri
- Karşılıklı, polarize ve polarize olmayan reflektörlü, sabit alan, ayarlanabilir alan ve yayınık modellerinde mevcuttur
- Hata önleme ve muayene uygulamalarında küçük özellik tespiti için küçük leke yayınık modelleri mevcuttur
- Çoğu modelde kolay hizalamanız için görünür kırmızı ışın sunar
- 360° görülebilen parlak LED durum göstergelerine sahiptir
- Sağlam ve güvenilir algılama için su geçirmez, IP67 ve NEMA 6 koruma sınıfına sahip gövde sunar
- Modele bağlı olarak tamamlayıcı NPN veya PNP çıkışlarla 10 – 30 V dc besleme gerilimi sunar
- M3 (3 mm) dişli insertler ve 25,4 mm delik aralığı dahil çok yönlü montaj seçenekleri sunar
- Modele bağlı olarak kolay yapılandırma için tek tur kazanç potansiyometresi içerir
Alt Modeller

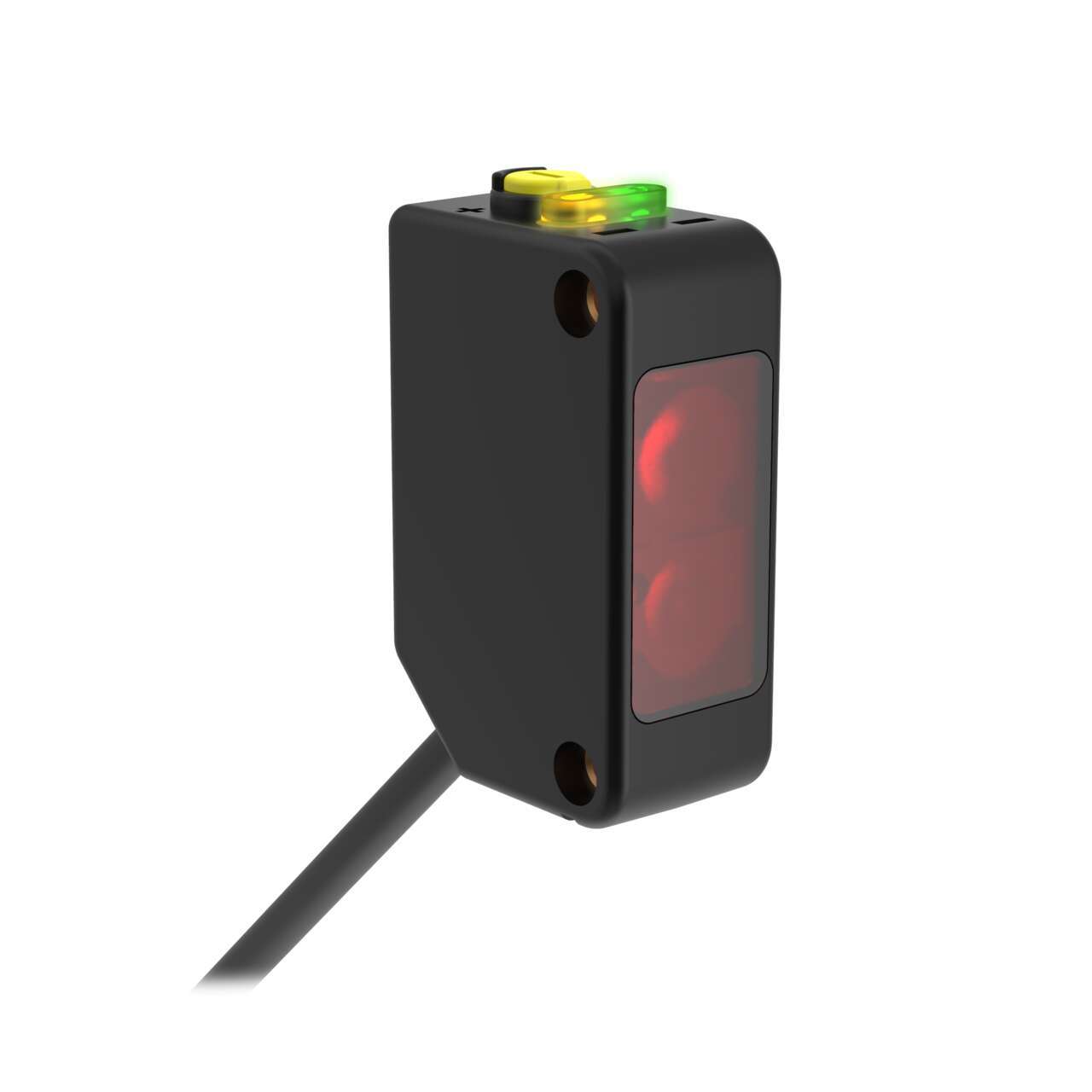

Q20PLVQ5
WORLD-BEAM Q20 Series: Retro Range: 6 m;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) M12 Pigtail QD

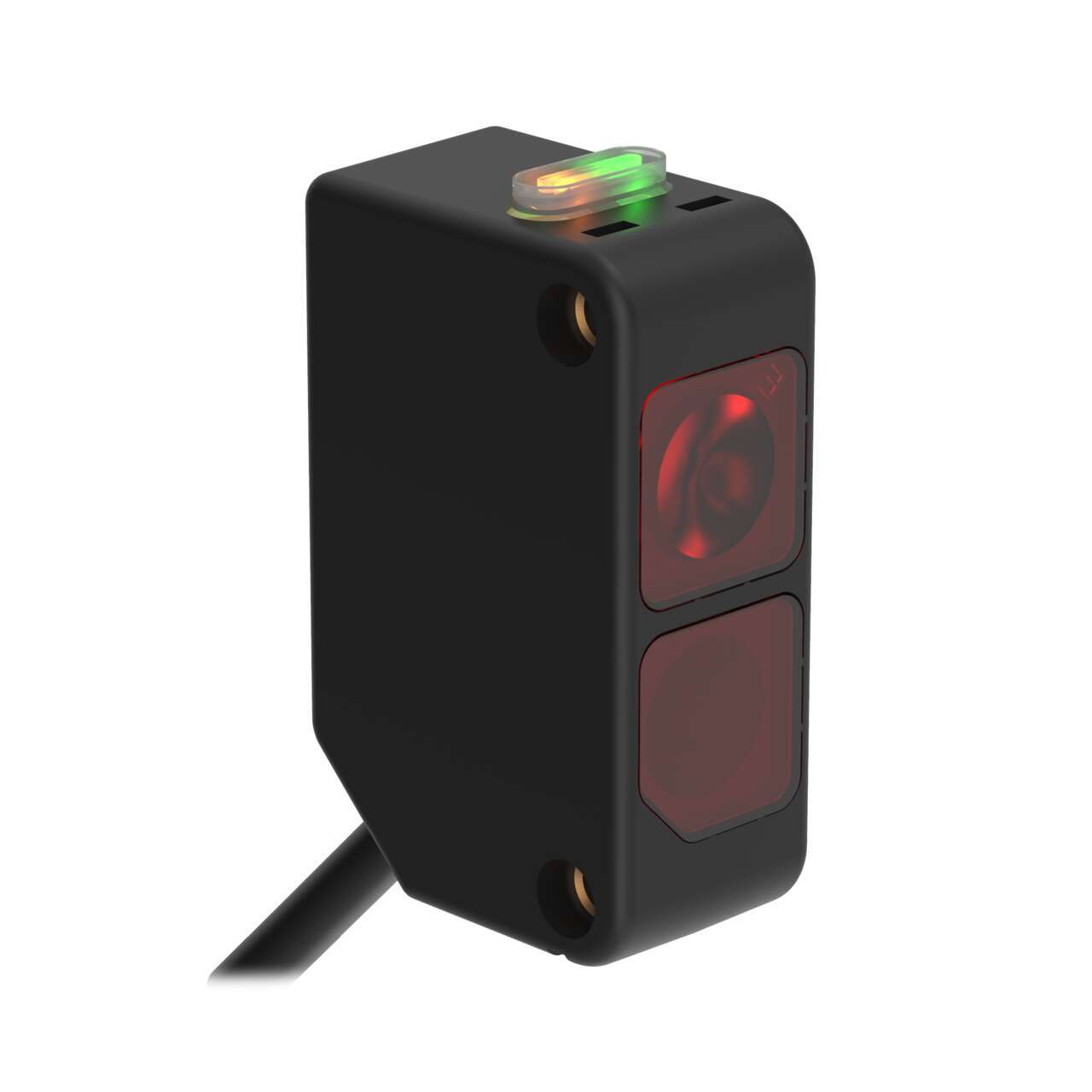

Q20EQ5
WORLD-BEAM Q20 Series: Emitter (Red) Range: 12 m;
Input 10-30 V dc Output: No output 150 mm (6 in) M12 Pigtail QD

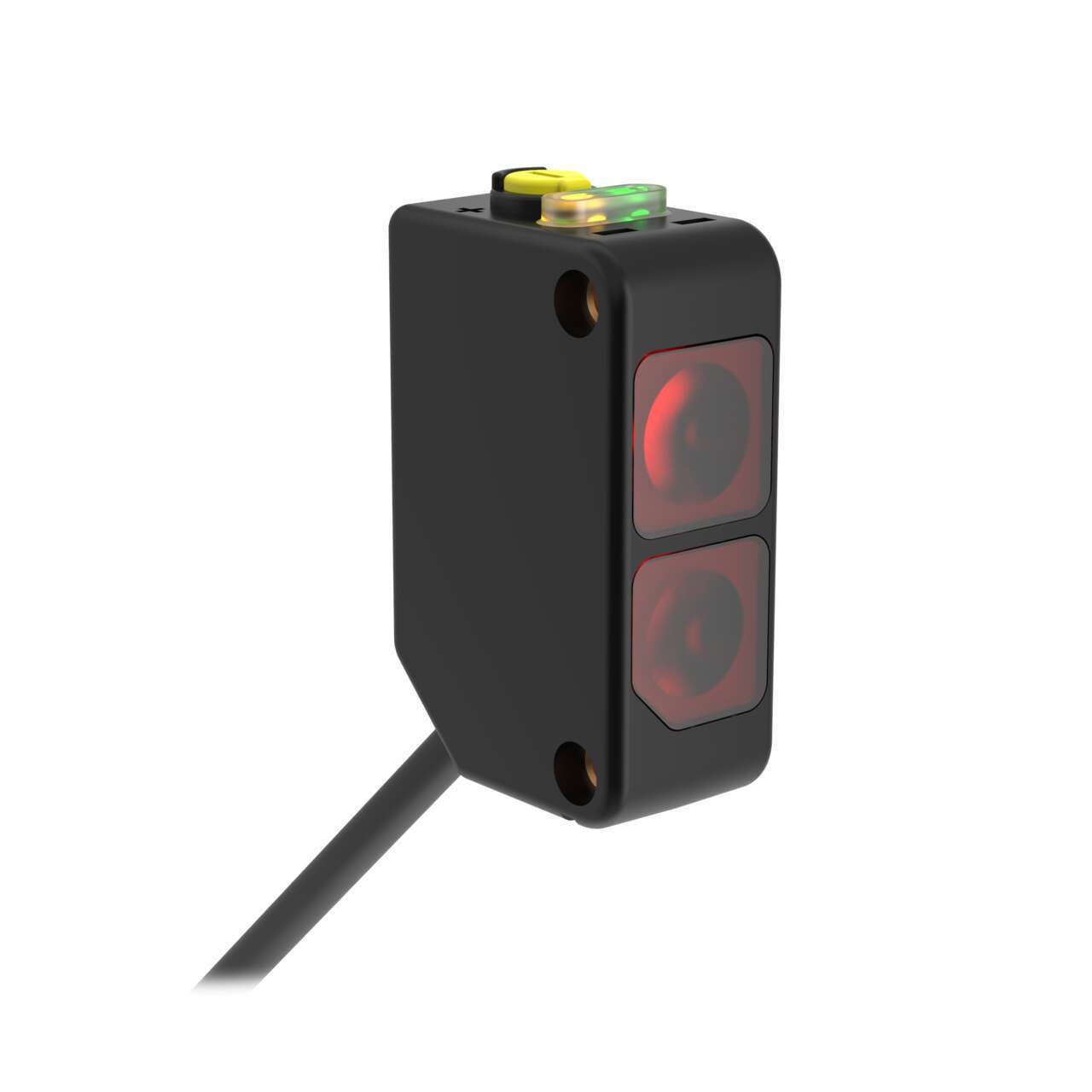

Q20NDLQ5
WORLD-BEAM Q20 Series: Long Range Diffuse (Red) Range: 800 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 150 mm (6 in) M12 Pigtail QD

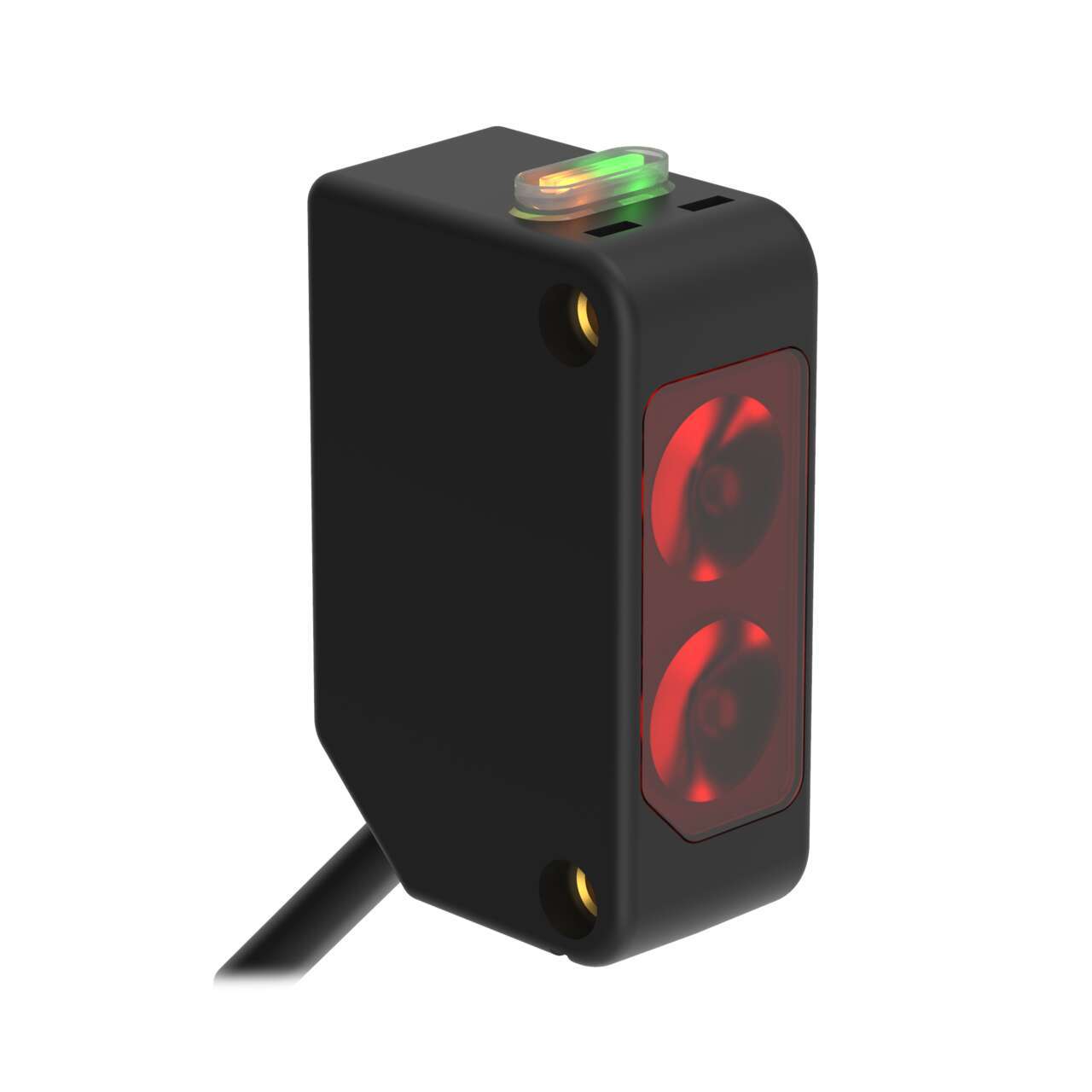

Q20APFF150Q3
WORLD-BEAM Q20 Series: Fixed-Field Range: 150 mm;
Input 10-30 V dc Output: LO Solid-State PNP NO 150 mm (6 in) 3-pin M8 Pigtail QD
Q20PD W
WORLD-BEAM Q20 Series: Diffuse (Red) Range: 250 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 9 m (30 ft) Cable
Q20ND
WORLD-BEAM Q20 Series: Diffuse (Red) Range: 250 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 2 m (6.5 ft) Cable
Q20PFF50Q
WORLD-BEAM Q20 Series: Fixed-Field Range: 50 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) 4-pin M8 Pigtail QD

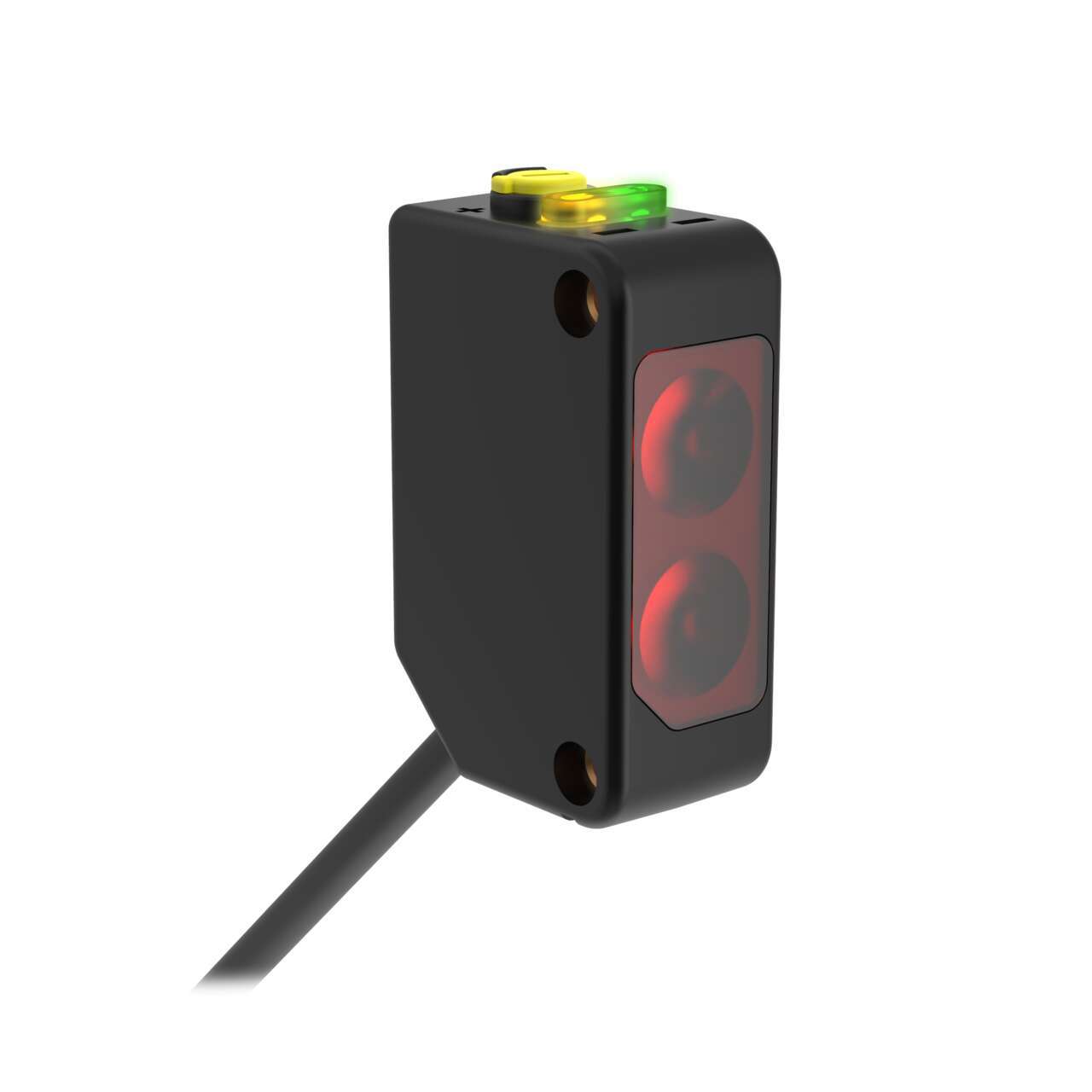

Q20KAF200Q
WORLD-BEAM Q20 Series: Adjustable Field Range: 200 mm;
Input: 10-30 V dc Output: PNP with IO-Link 150 mm (6 in) M8 Pigtail QD
Q20PDXLQ
WORLD-BEAM Q20 Series: Long Range Diffuse (IR) Range: 1500 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) M8 Pigtail QD
Q20PFF100Q
WORLD-BEAM Q20 Series: Fixed-Field Range: 100 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) 4-pin M8 Pigtail QD

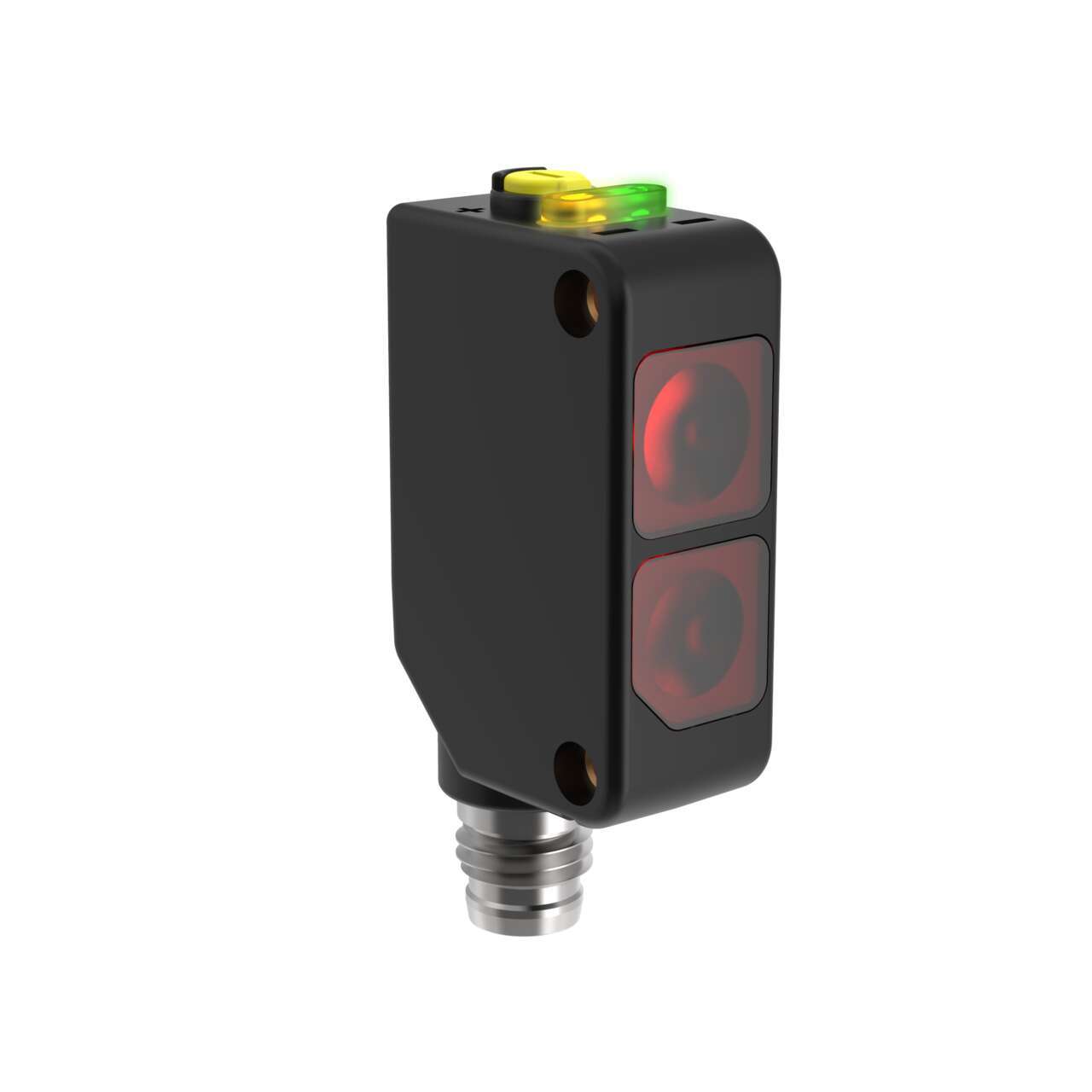

Q20NDVSQ7
WORLD-BEAM Q20 Series: Diffuse (Visible) Input 10-30 V dc Output: Complementary Solid-State NPN 4-pin M12 Integral QD
Q20NDVS
WORLD-BEAM Q20 Series: Small Spot Diffuse (Red) Range: 250 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 2 m (6.5 ft) Cable
Q20NDQ7
WORLD-BEAM Q20 Series: Diffuse (Red) Range: 250 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN M8 Integral QD
Q20NDQ5
WORLD-BEAM Q20 Series: Diffuse (Red) Range: 250 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 150 mm (6 in) M12 Pigtail QD
Q20PDQPMA
WORLD-BEAM Q20 Series: Diffuse (Red) Range: 250 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) M12 PUR Pigtail QD
Q20NAF400Q
WORLD-BEAM Q20 Series: Adjustable Field Range: 400 mm;
Input: 10-30 V dc Outputs: Complementary NPN 150 mm (6 in) M8 Pigtail QD
Q20NR
WORLD-BEAM Q20 Series: Receiver (Red) Range: 12 m;
Input 10-30 V dc Output: Complementary Solid-State NPN 2 m (6.5 ft) Cable
Q20PDQ5
WORLD-BEAM Q20 Series: Diffuse (Red) Range: 250 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) M12 Pigtail QD
Q20NAF400
WORLD-BEAM Q20 Series: Adjustable Field Range: 400 mm;
Input: 10-30 V dc Outputs: Complementary NPN 2 m (6.5 ft) Cable
Q20PDQ7
WORLD-BEAM Q20 Series: Diffuse (Red) Range: 250 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP M8 Integral QD
Q20PDVSQ
WORLD-BEAM Q20 Series: Diffuse (Visible) Input 10-30 V dc Output: Complementary Solid-State NPN 4-pin M12 Integral QD
Q20NDVSQ5
WORLD-BEAM Q20 Series: Small Spot Diffuse (Red) Range: 250 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 150 mm (6 in) M12 Pigtail QD
Q20NAF200Q
WORLD-BEAM Q20 Series: Adjustable Field Range: 200 mm;
Input: 10-30 V dc Outputs: Complementary NPN 150 mm (6 in) M8 Pigtail QD
Q20NDXLQ5
WORLD-BEAM Q20 Series: Long Range Diffuse (IR) Range: 1500 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 150 mm (6 in) M12 Pigtail QD
Q20KAF200Q7
WORLD-BEAM Q20 Series: Adjustable Field Range: 200 mm;
Input: 10-30 V dc Output: PNP with IO-Link M8 Integral QD
Q20NAF200
WORLD-BEAM Q20 Series: Adjustable Field Range: 200 mm;
Input: 10-30 V dc Outputs: Complementary NPN 2 m (6.5 ft) Cable
Q20EQ
WORLD-BEAM Q20 Series: Emitter (Red) Range: 12 m;
Input 10-30 V dc Output: No output 150 mm (6 in) M8 Pigtail QD

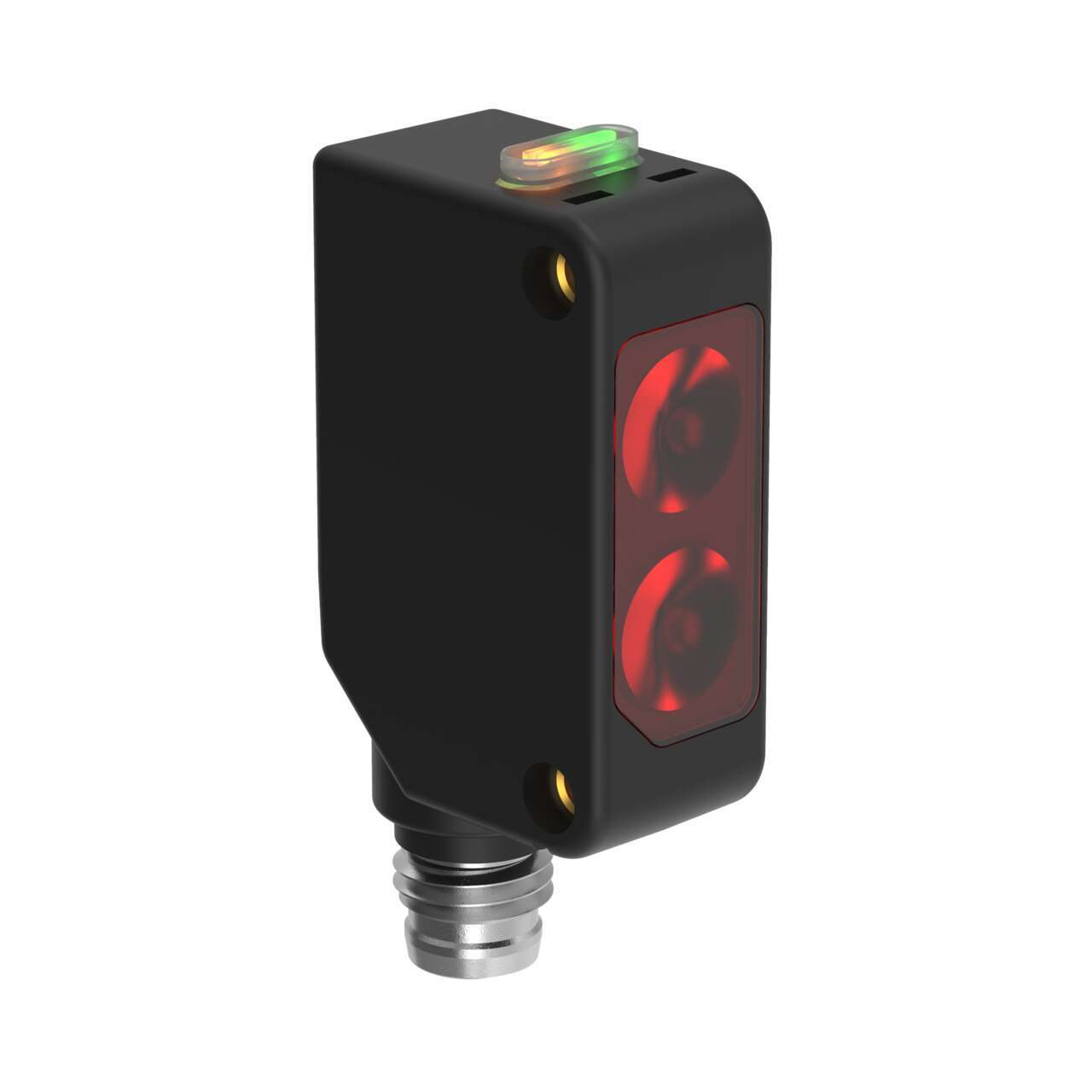

Q20NFF150Q7
WORLD-BEAM Q20 Series: Fixed-Field Range: 150 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 4-pin M8 Integral QD
Q20PFF150Q
WORLD-BEAM Q20 Series: Fixed-Field Range: 150 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) 4-pin M8 Pigtail QD
Q20PDLQ5-4000
WORLD-BEAM Q20 Series: Long Range Diffuse (Red) Range: 800 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 4 m M12 Pigtail QD
Q20NFF150IRQ7
WORLD-BEAM Q20 Series: Fixed-Field Range: 150 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 4-pin M12 Integral QD
Q20NRQ5
WORLD-BEAM Q20 Series: Receiver (Red) Range: 12 m;
Input 10-30 V dc Output: Complementary Solid-State NPN 150 mm (6 in) M12 Pigtail QD

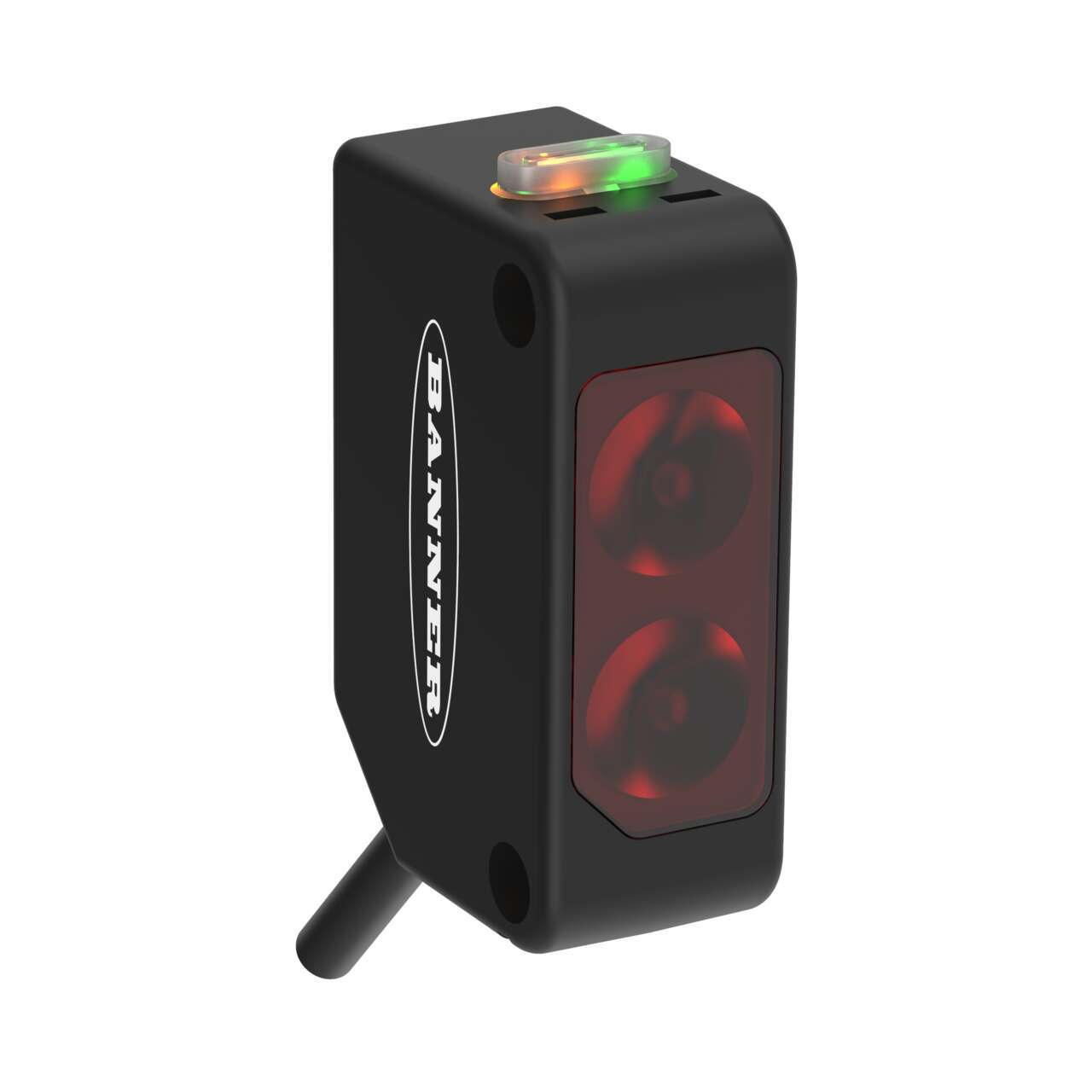

Q20PLPQ5
WORLD-BEAM Q20 Series: Polarized Retro Range: 4 m;
Input 10-30 V dc No Gain Pot Output: Complementary Solid-State PNP 600 mm (2 ft) M12 Pigtail QD Specifically used with SGS Safety Grid System
Q20NLPQ5
WORLD-BEAM Q20 Series: Polarized Retro Range: 4 m;
Input 10-30 V dc Output: Complementary Solid-State NPN 150 mm (6 in) M12 Pigtail QD
Q20NFF50Q5
WORLD-BEAM Q20 Series: Fixed-Field Range: 50 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 150 mm (6 in) 4-pin M12 Pigtail QD
Q20KAF400Q7
WORLD-BEAM Q20 Series: Adjustable Field Range: 400 mm;
Input: 10-30 V dc Output: PNP with IO-Link M8 Integral QD
Q20PLPQPMA
WORLD-BEAM Q20 Series: Polarized Retro Range: 4 m;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) M12 PUR Pigtail QD
Q20E
WORLD-BEAM Q20 Series: Emitter (Red) Range: 12 m;
Input 10-30 V dc Output: No output 2 m (6.5 ft) Cable
Q20PFF100Q7
WORLD-BEAM Q20 Series: Fixed-Field Range: 100 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 4-pin M8 Integral QD
Q20NRL W
WORLD-BEAM Q20 Series: Long Range Receiver (IR) Range: 20 m;
Input 10-30 V dc Output: Complementary Solid-State NPN 9 m (30 ft) Cable
Q20NRQ
WORLD-BEAM Q20 Series: Receiver Input 10-30 V dc Output: Complementary Solid-State NPN 4-pin M12 Integral QD
Q20NDXLQ
WORLD-BEAM Q20 Series: Long Range Diffuse (IR) Range: 1500 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 150 mm (6 in) M8 Pigtail QD
Q20PDL
WORLD-BEAM Q20 Series: Long Range Diffuse (Red) Range: 800 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 2 m (6.5 ft) Cable
Q20PFF50
WORLD-BEAM Q20 Series: Fixed-Field Range: 50 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 2 m (6.5 ft) Cable
Q20PLP
WORLD-BEAM Q20 Series: Polarized Retro Range: 4 m;
Input 10-30 V dc Output: Complementary Solid-State PNP 2 m (6.5 ft) Cable
Q20PDLQ
WORLD-BEAM Q20 Series: Long Range Diffuse (Red) Range: 800 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) M8 Pigtail QD
Q20KAF400Q
WORLD-BEAM Q20 Series: Adjustable Field Range: 400 mm;
Input: 10-30 V dc Output: PNP with IO-Link 150 mm (6 in) M8 Pigtail QD
Q20RPDXLQ5-2000
WORLD-BEAM Q20 Series: Long Range Diffuse (IR) Range: 1500 mm;
Input 10-30 V dc Output: Dark Operate PNP;
Black Only 2 m M12 Pigtail QD
Q20NFF150Q5
WORLD-BEAM Q20 Series: Fixed-Field Range: 150 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 150 mm (6 in) 4-pin M12 Pigtail QD
Q20PDXLQ5
WORLD-BEAM Q20 Series: Long Range Diffuse (IR) Range: 1500 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) M12 Pigtail QD

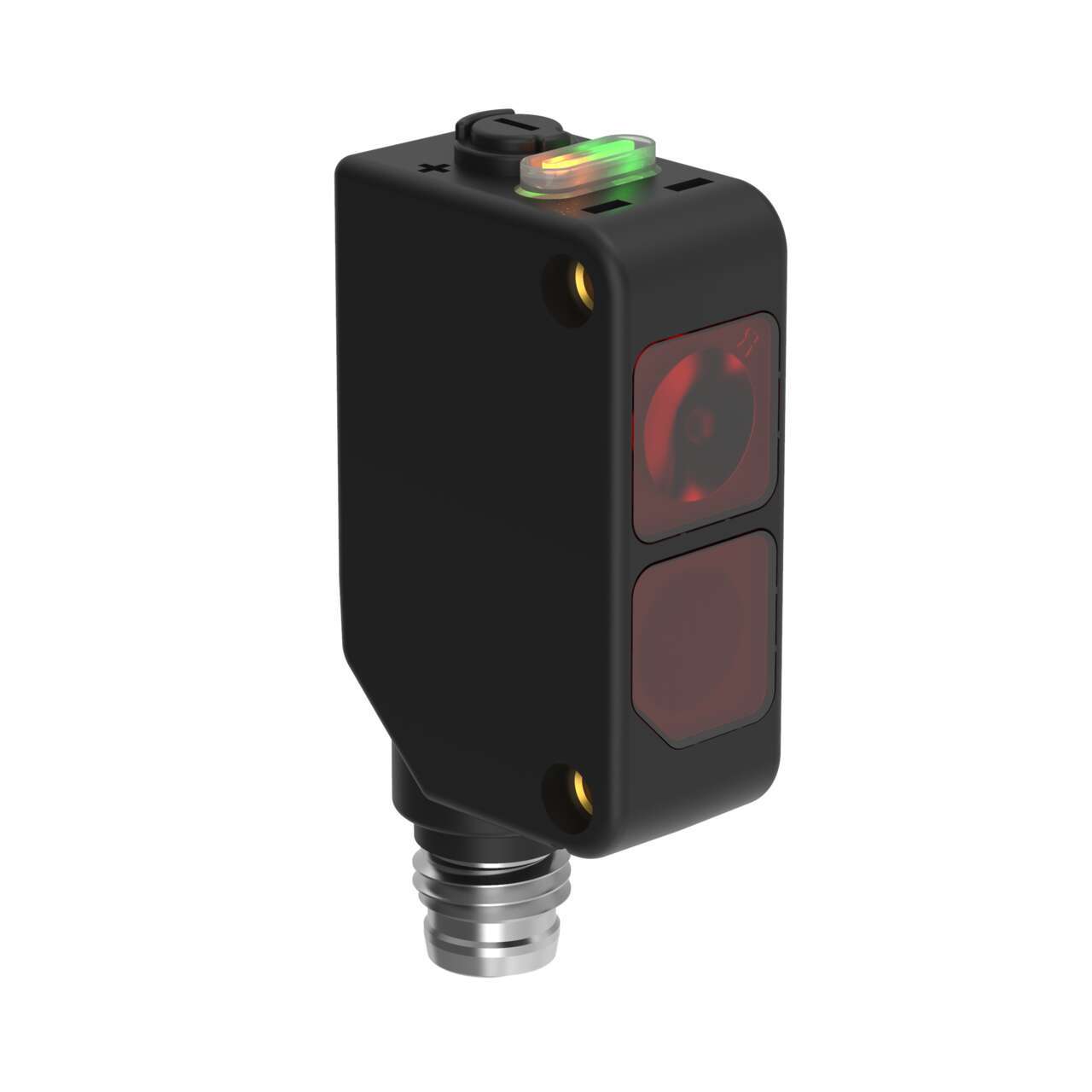

Q20NRLQ7
WORLD-BEAM Q20 Series: Retroreflective Input 10-30 V dc Output: Complementary Solid-State NPN 4-pin M12 Integral QD
Q20NFF100Q5
WORLD-BEAM Q20 Series: Fixed-Field Range: 100 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 150 mm (6 in) 4-pin M12 Pigtail QD
Q20PDLQ5-1500
WORLD-BEAM Q20 Series: Long Range Diffuse (Red) Range: 800 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 1500 mm M12 Pigtail QD
Q20PFF50Q7
WORLD-BEAM Q20 Series: Fixed-Field Range: 50 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 4-pin M8 Integral QD
Q20PFF150
WORLD-BEAM Q20 Series: Fixed-Field Range: 150 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 2 m (6.5 ft) Cable
Q20PRQ7
WORLD-BEAM Q20 Series: Receiver (Red) Range: 12 m;
Input 10-30 V dc Output: Complementary Solid-State PNP M8 Integral QD
Q20PLP W
WORLD-BEAM Q20 Series: Polarized Retro Range: 4 m;
Input 10-30 V dc Output: Complementary Solid-State PNP 9 m (30 ft) Cable
Q20PDL W
WORLD-BEAM Q20 Series: Long Range Diffuse (Red) Range: 800 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 9 m (30 ft) Cable

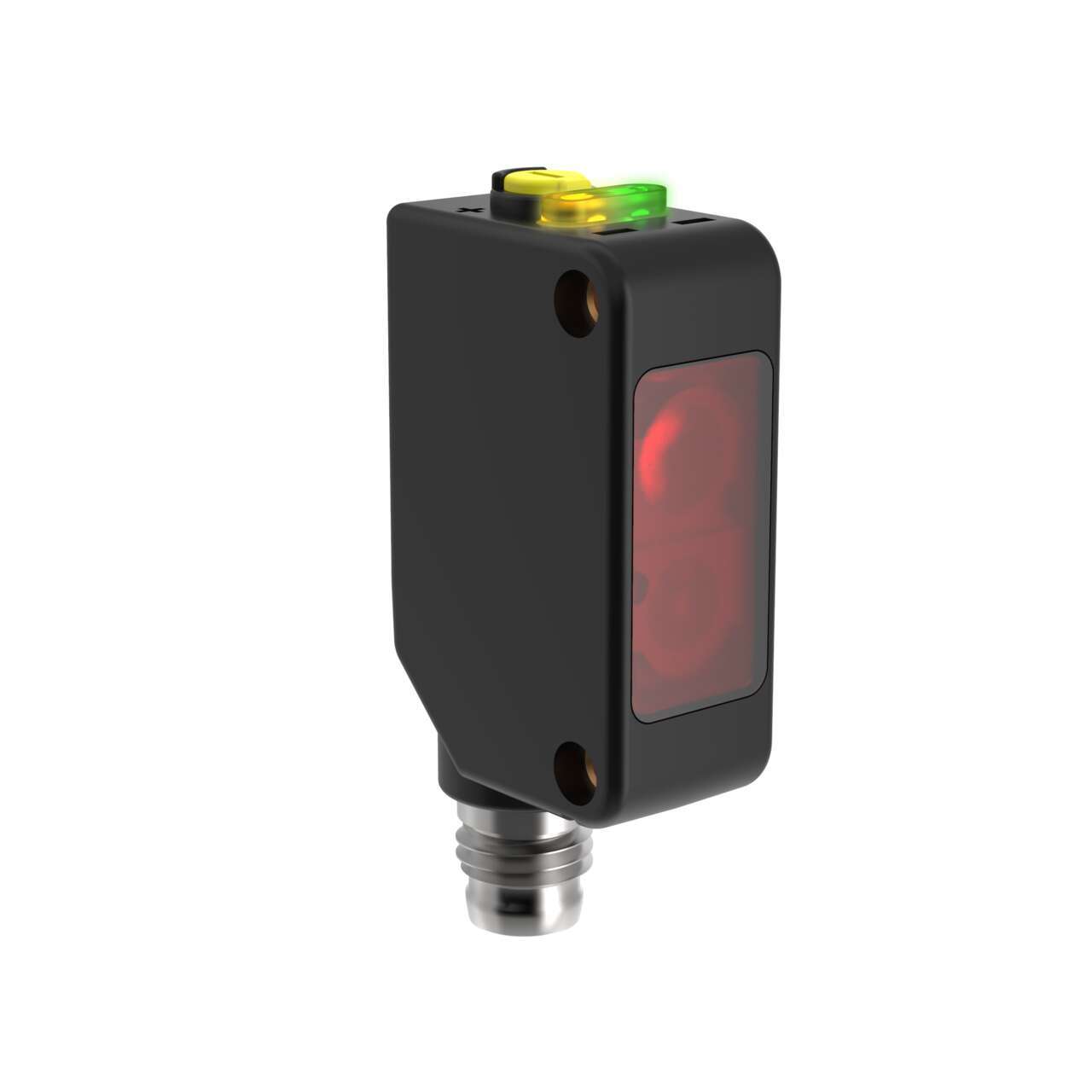

Q20PLVQ7
WORLD-BEAM Q20 Series: Retro Range: 6 m;
Input 10-30 V dc Output: Complementary Solid-State PNP M8 Integral QD
Q20APDQ3
WORLD-BEAM Q20 Series: Diffuse (Red) Range: 250 mm;
Input 10-30 V dc Output: PNP Light Operate 6 in Pigtail 3-pin M8 QD
Q20NFF50Q
WORLD-BEAM Q20 Series: Fixed-Field Range: 50 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 4-pin M12 Integral QD
Q20KAF200Q5
WORLD-BEAM Q20 Series: Adjustable Field Range: 200 mm;
Input: 10-30 V dc Output: PNP with IO-Link 150 mm (6 in) M12 Pigtail QD
Q20APDLQ3
WORLD-BEAM Q20 Series: Long Range Diffuse (Red) Range: 800 mm;
Input 10-30 V dc Output: PNP Light Operate 6 in Pigtail 3-pin M8 QD
Q20NDLQ
WORLD-BEAM Q20 Series: Long Range Diffuse (Red) Range: 800 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 150 mm (6 in) M8 Pigtail QD
Q20PDLQPMA
WORLD-BEAM Q20 Series: Long Range Diffuse (Red) Range: 800 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) M12 PUR Pigtail QD
Q20PDVS W
WORLD-BEAM Q20 Series: Small Spot Diffuse (Red) Range: 250 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 9 m (30 ft) Cable
Q20PLVQ
WORLD-BEAM Q20 Series: Retro Range: 6 m;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) M8 Pigtail QD
Q20NLV
WORLD-BEAM Q20 Series: Retro Range: 6 m;
Input 10-30 V dc Output: Complementary Solid-State NPN 2 m (6.5 ft) Cable
Q20PRQ5
WORLD-BEAM Q20 Series: Receiver (Red) Range: 12 m;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) M12 Pigtail QD
Q20PDLQ5
WORLD-BEAM Q20 Series: Long Range Diffuse (Red) Range: 800 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) M12 Pigtail QD
Q20NFF100Q
WORLD-BEAM Q20 Series: Fixed-Field Range: 100 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 4-pin M12 Integral QD
Q20NLPQ
WORLD-BEAM Q20 Series: Polarized Retro Range: 4 m;
Input 10-30 V dc Output: Complementary Solid-State NPN 150 mm (6 in) M8 Pigtail QD
Q20PRLQ5
WORLD-BEAM Q20 Series: Long Range Receiver (IR) Range: 20 m;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) M12 Pigtail QD
Q20PFF150Q5
WORLD-BEAM Q20 Series: Fixed-Field Range: 150 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) 4-pin M12 Pigtail QD
Q20NDQ
WORLD-BEAM Q20 Series: Diffuse (Red) Range: 250 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 150 mm (6 in) M8 Pigtail QD
Q20NDXL
WORLD-BEAM Q20 Series: Long Range Diffuse (IR) Range: 1500 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 2 m (6.5 ft) Cable
Q20PDLQ7
WORLD-BEAM Q20 Series: Long Range Diffuse (Red) Range: 800 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP M8 Integral QD
Q20PAF200 W
WORLD-BEAM Q20 Series: Adjustable Field Range: 200 mm;
Input: 10-30 V dc Outputs: Complementary PNP 9 m (30 ft) Cable
Q20E W
WORLD-BEAM Q20 Series: Emitter (Red) Range: 12 m;
Input 10-30 V dc Output: No output 9 m (30 ft) Cable
Q20PFF50Q5
WORLD-BEAM Q20 Series: Fixed-Field Range: 50 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) 4-pin M12 Pigtail QD
Q20APFF50Q3
WORLD-BEAM Q20 Series: Fixed-Field Range: 50 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 4-pin M12 Integral QD
Q20NR W
WORLD-BEAM Q20 Series: Receiver (Red) Range: 12 m;
Input 10-30 V dc Output: Complementary Solid-State NPN 5 m (17 ft) Cable
Q20PDVSQ5
WORLD-BEAM Q20 Series: Small Spot Diffuse (Red) Range: 250 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) M12 Pigtail QD
Q20APARQ5
WORLD-BEAM Q20 Series: Retroreflective Range: 10 m;
Input: 10-30 V dc Output: D.O.
Solid-State PNP 4-pin M12 Integral QD
Q20NFF50
WORLD-BEAM Q20 Series: Fixed-Field Range: 50 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 2 m (6.5 ft) Cable
Q20EQ7
WORLD-BEAM Q20 Series: Emitter (Red) Range: 12 m;
Input 10-30 V dc Output: No output M8 Integral QD
Q20NLVQ5
WORLD-BEAM Q20 Series: Retro Range: 6 m;
Input 10-30 V dc Output: Complementary Solid-State NPN 150 mm (6 in) M12 Pigtail QD
Q20ELQ5
WORLD-BEAM Q20 Series: Long Range Emitter (IR) Range: 20 m;
Input 10-30 V dc Output: No output 150 mm (6 in) M12 Pigtail QD
Q20NDL
WORLD-BEAM Q20 Series: Long Range Diffuse (Red) Range: 800 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 2 m (6.5 ft) Cable
Q20PD
WORLD-BEAM Q20 Series: Diffuse (Red) Range: 250 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 2 m (6.5 ft) Cable
Q20NLVQ
WORLD-BEAM Q20 Series: Visible Laser Diffuse Input 10-30 V dc Output: Complementary Solid-State NPN 4-pin M12 Integral QD
Q20PLPQ
WORLD-BEAM Q20 Series: Polarized Retro Range: 4 m;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) M8 Pigtail QD
Q20PAF200Q
WORLD-BEAM Q20 Series: Adjustable Field Range: 200 mm;
Input: 10-30 V dc Outputs: Complementary PNP 150 mm (6 in) M8 Pigtail QD
Q20PR W
WORLD-BEAM Q20 Series: Receiver (Red) Range: 12 m;
Input 10-30 V dc Output: Complementary Solid-State PNP 9 m (30 ft) Cable
Q20NFF150Q
WORLD-BEAM Q20 Series: Fixed-Field Range: 150 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 150 mm (6 in) 4-pin M8 Pigtail QD
Q20PDVS
WORLD-BEAM Q20 Series: Small Spot Diffuse (Red) Range: 250 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 2 m (6.5 ft) Cable
Q20NFF50Q7
WORLD-BEAM Q20 Series: Fixed-Field Range: 50 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 4-pin M8 Integral QD
Q20NAF400Q5
WORLD-BEAM Q20 Series: Adjustable Field Range: 400 mm;
Input: 10-30 V dc Outputs: Complementary NPN 150 mm (6 in) M12 Pigtail QD
Q20ELQ7
WORLD-BEAM Q20 Series: Long Range Emitter (IR) Range: 20 m;
Input 10-30 V dc Output: No output M8 Integral QD
Q20PAF200Q7
WORLD-BEAM Q20 Series: Adjustable Field Range: 200 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 4-pin M12 Integral QD
Q20NDLQ7
WORLD-BEAM Q20 Series: Long Range Diffuse (Red) Range: 800 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN M8 Integral QD
Q20PDXL
WORLD-BEAM Q20 Series: Long Range Diffuse (IR) Range: 1500 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 2 m (6.5 ft) Cable
Q20PAF200Q5
WORLD-BEAM Q20 Series: Adjustable Field Range: 200 mm;
Input: 10-30 V dc Outputs: Complementary PNP 150 mm (6 in) M12 Pigtail QD
Q20NAF400Q7
WORLD-BEAM Q20 Series: Adjustable Field Range: 400 mm;
Input: 10-30 V dc Outputs: Complementary NPN M8 Integral QD
Q20NFF100Q7
WORLD-BEAM Q20 Series: Fixed-Field Range: 100 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 4-pin M8 Integral QD
Q20PDQ
WORLD-BEAM Q20 Series: Diffuse (Red) Range: 250 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) M8 Pigtail QD
Q20PRQ
WORLD-BEAM Q20 Series: Receiver (Red) Range: 12 m;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) M8 Pigtail QD
Q20PFF100Q5
WORLD-BEAM Q20 Series: Fixed-Field Range: 100 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) 4-pin M12 Pigtail QD
Q20NRL
WORLD-BEAM Q20 Series: Long Range Receiver (IR) Range: 20 m;
Input 10-30 V dc Output: Complementary Solid-State NPN 2 m (6.5 ft) Cable
Q20PLPQ7
WORLD-BEAM Q20 Series: Retroreflective (Polarized) Input 10-30 V dc Output: Complementary Solid-State NPN 4-pin M12 Integral QD
Q20NLP
WORLD-BEAM Q20 Series: Polarized Retro Range: 4 m;
Input 10-30 V dc Output: Complementary Solid-State NPN 2 m (6.5 ft) Cable
Q20PFF100
WORLD-BEAM Q20 Series: Fixed-Field Range: 100 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 2 m (6.5 ft) Cable
Q20PR
WORLD-BEAM Q20 Series: Receiver (Red) Range: 12 m;
Input 10-30 V dc Output: Complementary Solid-State PNP 2 m (6.5 ft) Cable
Q20PDXLQ7
WORLD-BEAM Q20 Series: Long Range Diffuse (IR) Range: 1500 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP M8 Integral QD
Q20PFF150Q7
WORLD-BEAM Q20 Series: Fixed-Field Range: 150 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 4-pin M8 Integral QD
Q20PRL
WORLD-BEAM Q20 Series: Long Range Receiver (IR) Range: 20 m;
Input 10-30 V dc Output: Complementary Solid-State PNP 2 m (6.5 ft) Cable
Q20PLV
WORLD-BEAM Q20 Series: Retro Range: 6 m;
Input 10-30 V dc Output: Complementary Solid-State PNP 2 m (6.5 ft) Cable
Q20NFF150
WORLD-BEAM Q20 Series: Fixed-Field Range: 150 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 2 m (6.5 ft) Cable
Q20KAF400
WORLD-BEAM Q20 Series: Adjustable Field Range: 400 mm;
Input: 10-30 V dc Output: PNP with IO-Link 2 m (6.5 ft) Cable
Q20PAF200
WORLD-BEAM Q20 Series: Adjustable Field Range: 200 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 4-pin M12 Integral QD
Q20NLPQ7
WORLD-BEAM Q20 Series: Polarized Retro Range: 4 m;
Input 10-30 V dc Output: Complementary Solid-State NPN M8 Integral QD
Q20KAF400Q5
WORLD-BEAM Q20 Series: Adjustable Field Range: 400 mm;
Input: 10-30 V dc Output: PNP with IO-Link 150 mm (6 in) M12 Pigtail QD
Q20NRLQ5
WORLD-BEAM Q20 Series: Long Range Receiver (IR) Range: 20 m;
Input 10-30 V dc Output: Complementary Solid-State NPN 150 mm (6 in) M12 Pigtail QD
Q20PDVSQ7
WORLD-BEAM Q20 Series: Small Spot Diffuse (Red) Range: 250 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP M8 Integral QD
Q20NFF100
WORLD-BEAM Q20 Series: Fixed-Field Range: 100 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 2 m (6.5 ft) Cable
Q20PRLQ7
WORLD-BEAM Q20 Series: Long Range Receiver (IR) Range: 20 m;
Input 10-30 V dc Output: Complementary Solid-State PNP M8 Integral QD
Q20EQPMA
WORLD-BEAM Q20 Series: Emitter (Red) Range: 12 m;
Input 10-30 V dc Output: No output 150 mm (6 in) M12 PUR Pigtail QD
Q20NAF200Q7
WORLD-BEAM Q20 Series: Adjustable Field Range: 200 mm;
Input: 10-30 V dc Outputs: Complementary NPN M8 Integral QD
Q20RPDXLQ5
WORLD-BEAM Q20 Series: Retroreflective (Polarized) Range: 5 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 4-pin M12 Integral QD
Q20RPRQPMA
WORLD-BEAM Q20 Series: Receiver (Red) Range: 10 m Input 10-30 V dc;
Output: D.O.
Solid-State PNP 150 mm (6 in) 4-pin M12 PUR Pigtail QD Connector Pin 2 open
Q20NDVS W
WORLD-BEAM Q20 Series: Small Spot Diffuse (Red) Range: 250 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 9 m (30 ft) Cable
Q20NAF200 W
WORLD-BEAM Q20 Series: Adjustable Field Range: 200 mm;
Input: 10-30 V dc Outputs: Complementary NPN 9 m (30 ft) Cable
Q20NAF200Q5
WORLD-BEAM Q20 Series: Adjustable Field Range: 200 mm;
Input: 10-30 V dc Outputs: Complementary NPN 150 mm (6 in) M12 Pigtail QD
Q20PLVQPMA
WORLD-BEAM Q20 Series: Retro Range: 6 m;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) M12 PUR Pigtail QD
Q20NLPQPMA
WORLD-BEAM Q20 Series: Polarized Retro Range: 4 m;
Input 10-30 V dc Output: Complementary Solid-State NPN 150 mm (6 in) M12 PUR Pigtail QD
Q20PDXLQPMA
WORLD-BEAM Q20 Series: Long Range Diffuse (IR) Range: 1500 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 150 mm (6 in) M12 PUR Pigtail QD
Q20NDXL W
WORLD-BEAM Q20 Series: Long Range Diffuse (IR) Range: 1500 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 9 m (30 ft) Cable
Q20PFF150 W
WORLD-BEAM Q20 Series: Fixed-Field Range: 150 mm;
Input 10-30 V dc Output: Complementary Solid-State PNP 9 m (30 ft) Cable
Q20NLV W
WORLD-BEAM Q20 Series: Visible Laser Diffuse Input 10-30 V dc Output: Complementary Solid-State NPN 4-pin M12 Integral QD
Q20NFF50 W
WORLD-BEAM Q20 Series: Fixed-Field Range: 50 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 9 m (30 ft) Cable
Q20NRQ7
WORLD-BEAM Q20 Series: Receiver (Red) Range: 12 m;
Input 10-30 V dc Output: Complementary Solid-State NPN M8 Integral QD
Q20NLVQ7
WORLD-BEAM Q20 Series: Retro Range: 6 m;
Input 10-30 V dc Output: Complementary Solid-State NPN M8 Integral QD
Q20NFF50IRQ7
WORLD-BEAM Q20 Series: Fixed-Field Range: 50 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 4-pin M8 Integral QD;
IR Emitter
Q20NFF50IR
WORLD-BEAM Q20 Series: Fixed-Field Range: 50 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 2 m (6.5 ft) Cable;
IR Emitter
Q20NFF150IR
WORLD-BEAM Q20 Series: Fixed-Field Range: 150 mm;
Input 10-30 V dc Output: Complementary Solid-State NPN 2 m (6.5 ft) Cable;
IR Emitter
