Banner QS18 Serisi Fotoelektrik Sensör
Endüstri standardı 18mm vidalı silindirik gövdeye sahip çok yönlü fotoelektrik sensör serisi. IP67/NEMA 6 korumalı, IO-Link destekli, 20m’ye kadar algılama menzili.
Doğru seçim için destek olabiliriz: +90 533 049 96 24
08:30 – 17.30 | Pazartesi – Cumartesi
08:30 – 17.30 | Pazartesi – Cumartesi
Ürün Özellikleri
Açıklama
Ürün Özellikleri
- Endüstri standardı olan 18 mm vidalı silindirik gövdeye sahip sensörü yüzlerce farklı sensör tipinin yerine kullanabilirsiniz
- 18 mm vidalı lens veya yan tutucularla endüstri standardında gövdeye sahiptir
- Yüzlerce farklı sensörün yerine kullanılabilir
- Zorlu ortamlar için IP67 ve NEMA 6 standartlarını karşılar
- Karşılıklı, reflektörlü, konvergent, standart veya geniş açılı cisimden yansımalı; lazer, ultrasonik, cam veya plastik fiber optik, sabit arka plan bastırmalı ve ayarlanabilir menzilli algılama modlarına sahip modelleri bulunur
- Expert QS18E ve ultrasonik modelleri butonla TEACH (Öğretme) modu sunar
- 20 m’ye kadar menzil sunar
- Parlak LED’leri sayesinde çalışma durumunu 360⁰ açıdan görebilirsiniz
- Basitleştirilmiş kablolama, kurulum, koruyucu bakım ve sensör yedekleme imkanı için IO-Link’li modelleri mevcuttur
- Elektronik ve mekanik ayarlanabilir menzil seçenekleri sunar
- Karşılıklı modda çalışan modelleri IO-Link haberleşme ve sinyal karışmasını önleme özelliğine sahiptir, aynı zamanda ışıktan etkilenmeden algılama yapar
Alt Modeller
QS18APWDXLQ2
WORLD-BEAM QS18 Universal Volt; Diffuse Infrared
Range: 1 m; Input: 20-140 V ac/dc
Output: LO; P-MOSFET (Sourcing)
150 mm (6 in) Micro Pigtail QD
QS186LEQ
WORLD-BEAM QS18 Series: Laser Class 1
Range: 30 m; Input: 10-30 V dc
Output: Not Applicable
150 mm (6 in) M8 Pigtail QD
QS18VP6LAF250Q
WORLD-BEAM QS18 LASER ADJUSTABLE FIELD; CLASS 2
Rng: 20 mm-Cutoff pt (adj btwn 50-250 mm)
Output: PNP
150 mm (6 in) M8 Pigtail QD

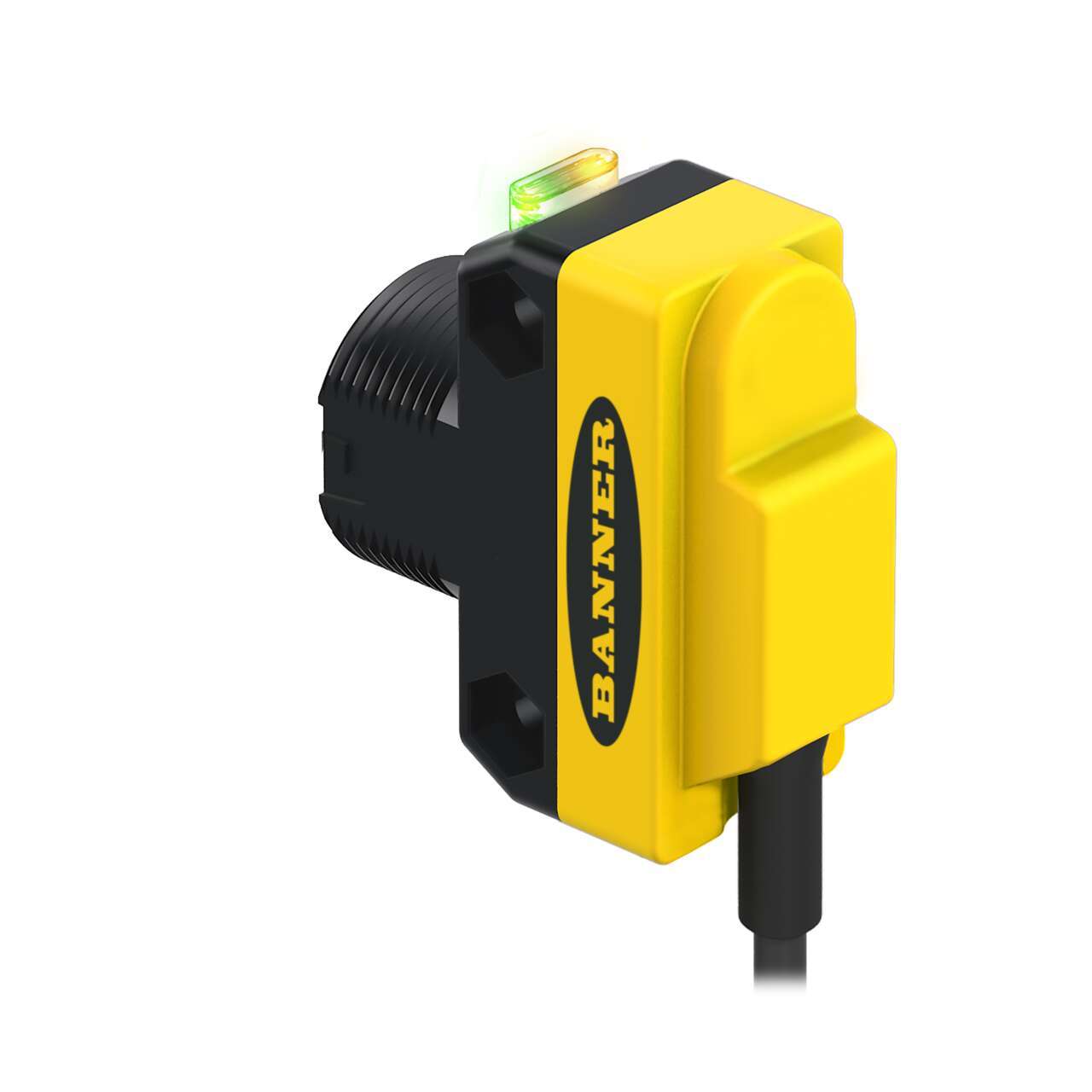

QS18VP6LLP
WORLD-BEAM QS18 LASER POLAR RETRO
Range: 0.1-10 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
2 m Cable

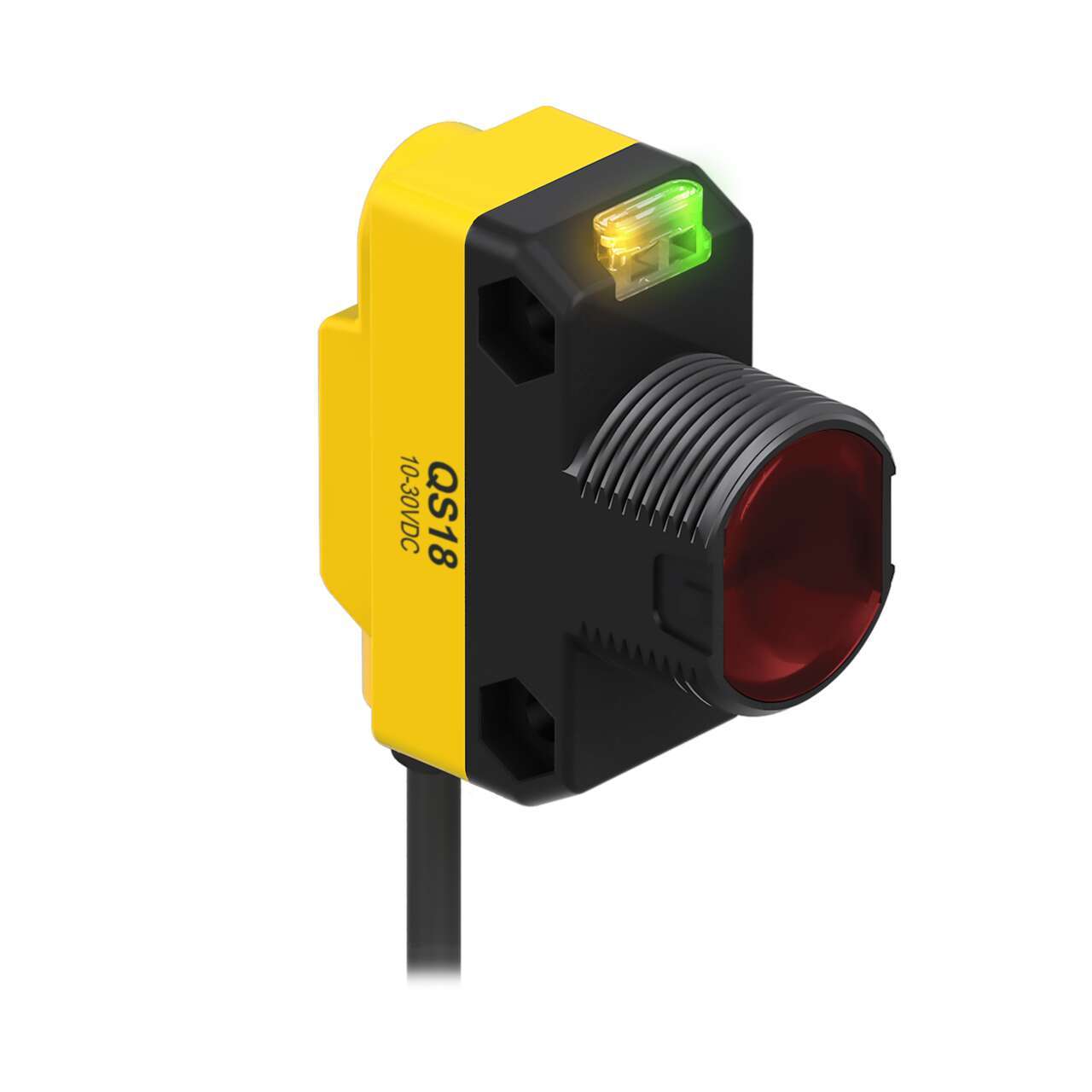

QS18VN6R
WORLD-BEAM QS18 Series: Receiver
Range: 20 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
2 m (6.5 ft) Cable

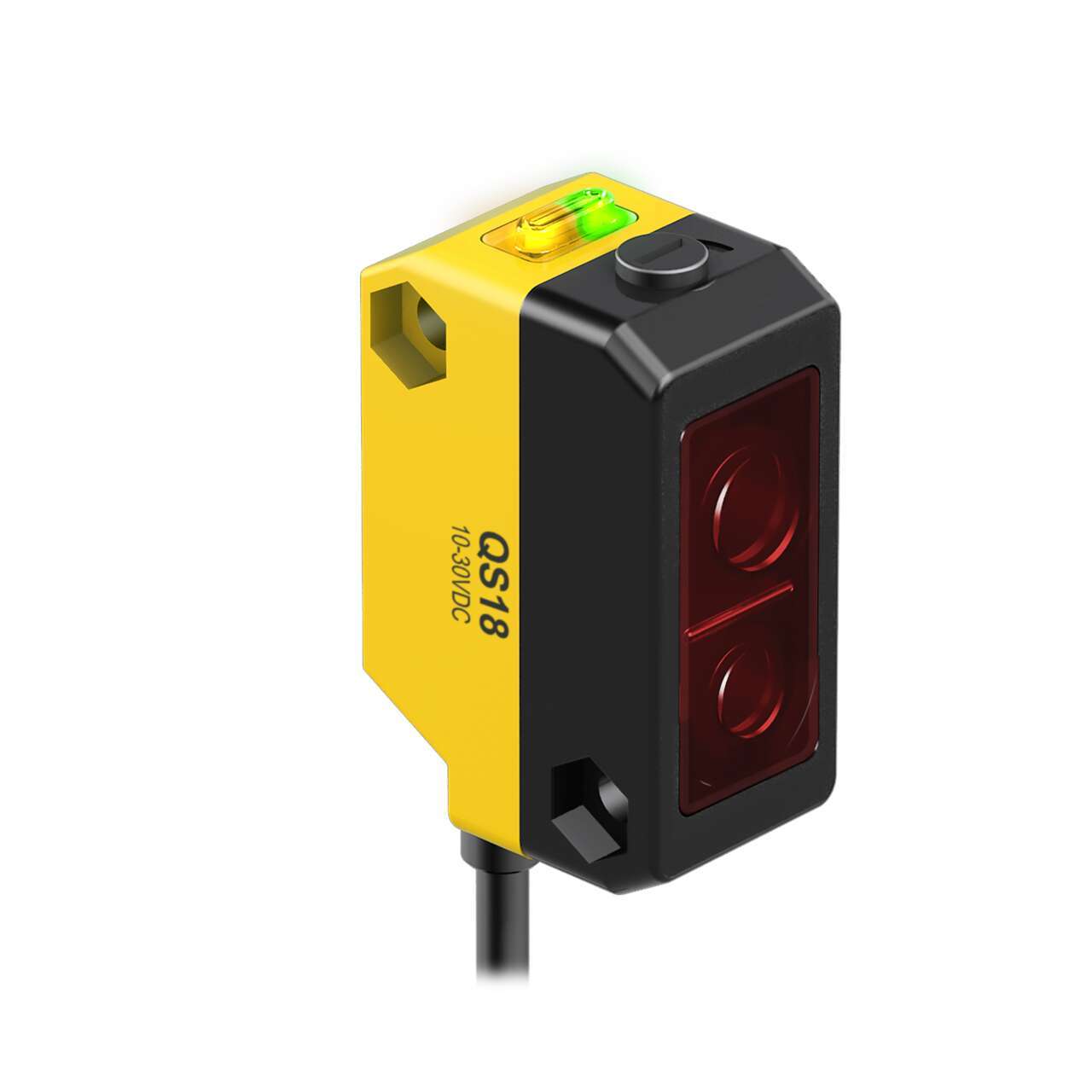

QS18AB6AF300Q
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 30 to 300 mm; Input: 10-30 V dc
Outputs: Bipolar NPN and PNP Light Operate
150 mm (6 in) M8 Pigtail QD

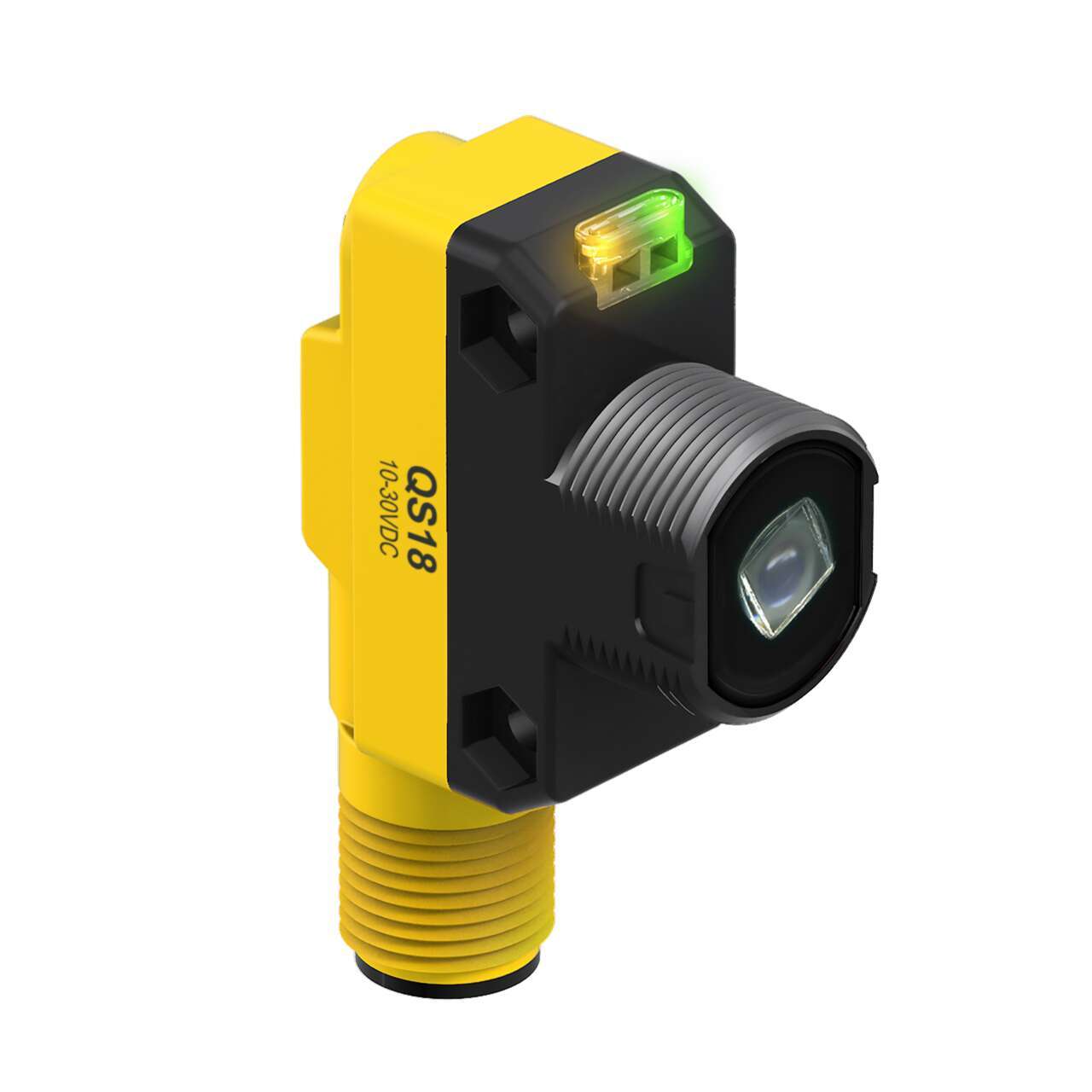

QS18VP6FF150Q8
WORLD-BEAM Q18 Series: Fixed-Field
Range: 150 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M12 Integral QD

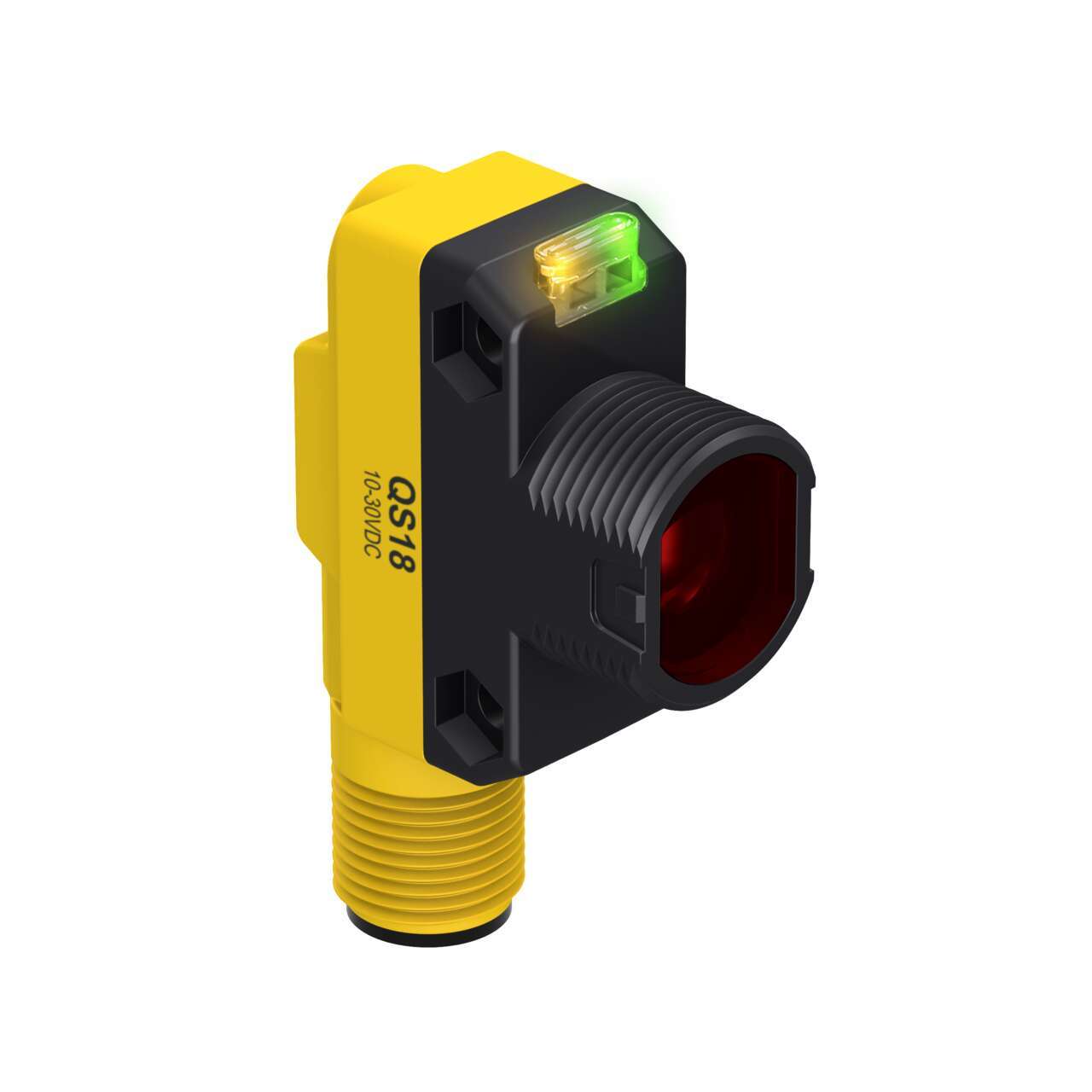

QS18VP6FF100Q5
WORLD-BEAM QS18 Series: Fixed-Field
Range: 100 mm cutoff
Output: Complementary Solid-State PNP
150 mm (6 in) M12 Pigtail QD

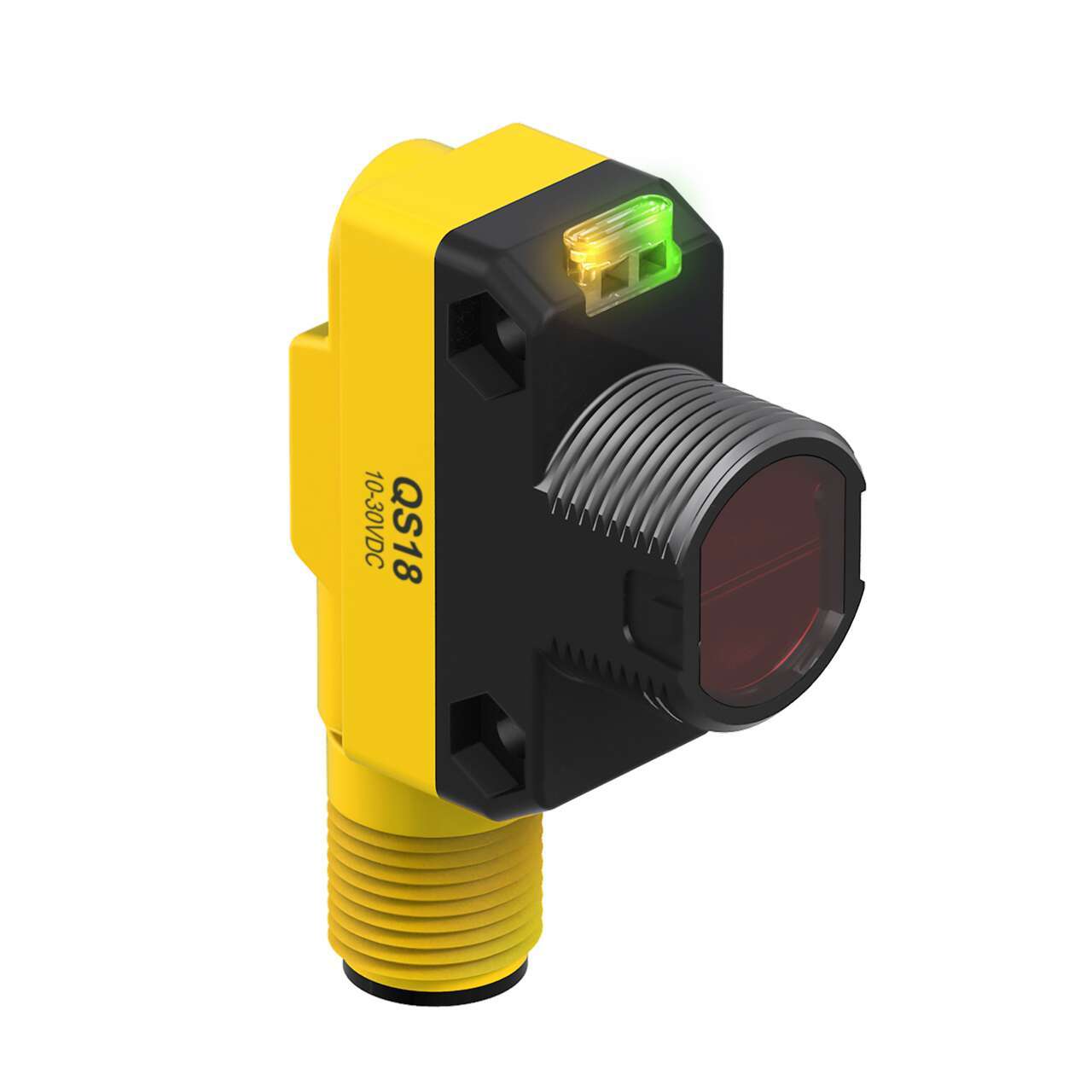

QS18VP6LPQ
WORLD-BEAM: Polarized Retro
Range: 3.5 m; Input: 10-30 V dc
Output: Complementary PNP
150 mm (6 in) M8 Pigtail QD

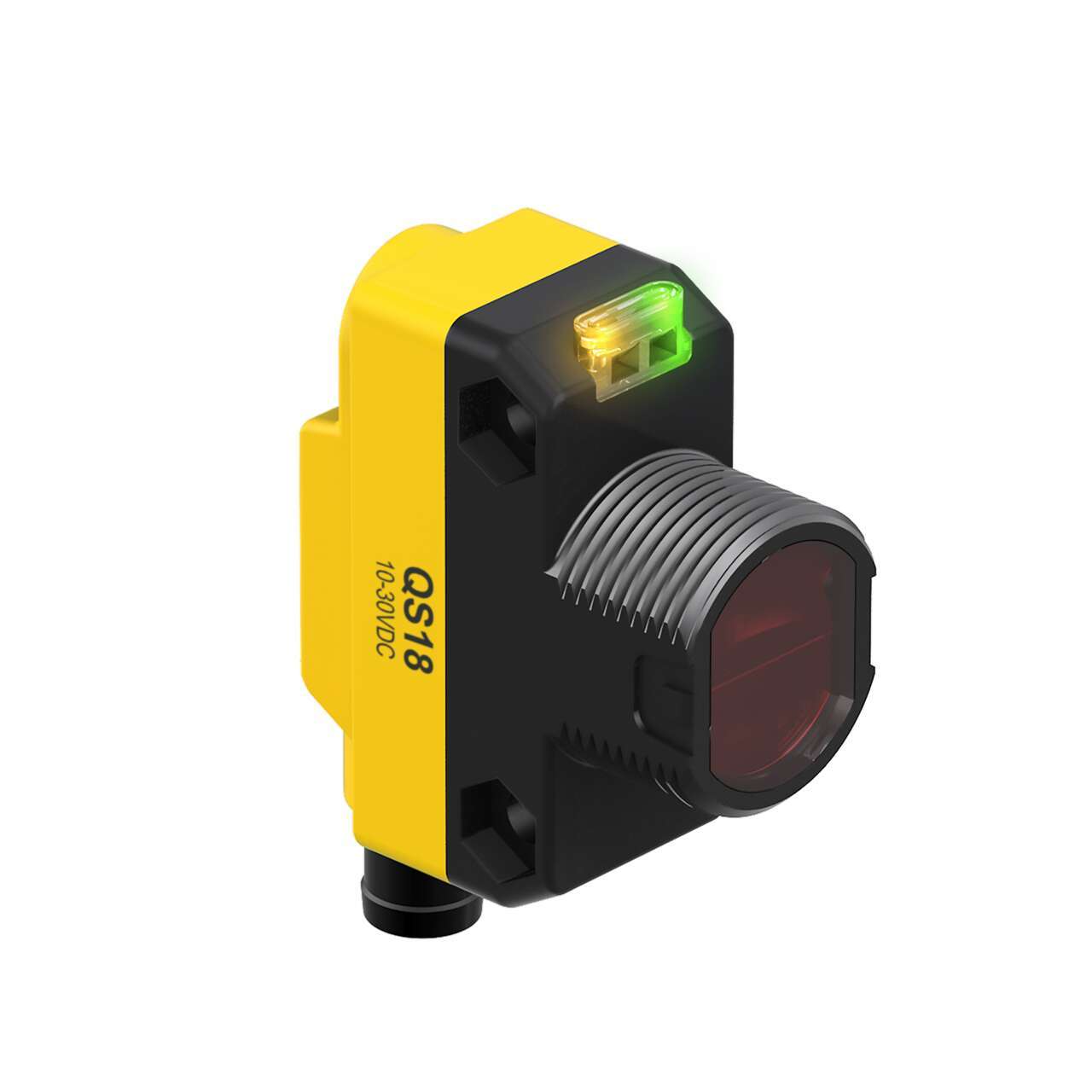

QS18EK6XLPCQ8
QS18 Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: 1 PNP/NPN with IO-Link Communication; 1 PNP
M12 Integral QD
QS18EP6XLPCQ5
QS18 Expert Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: PNP
150 mm (6 in) M12 Pigtail QD

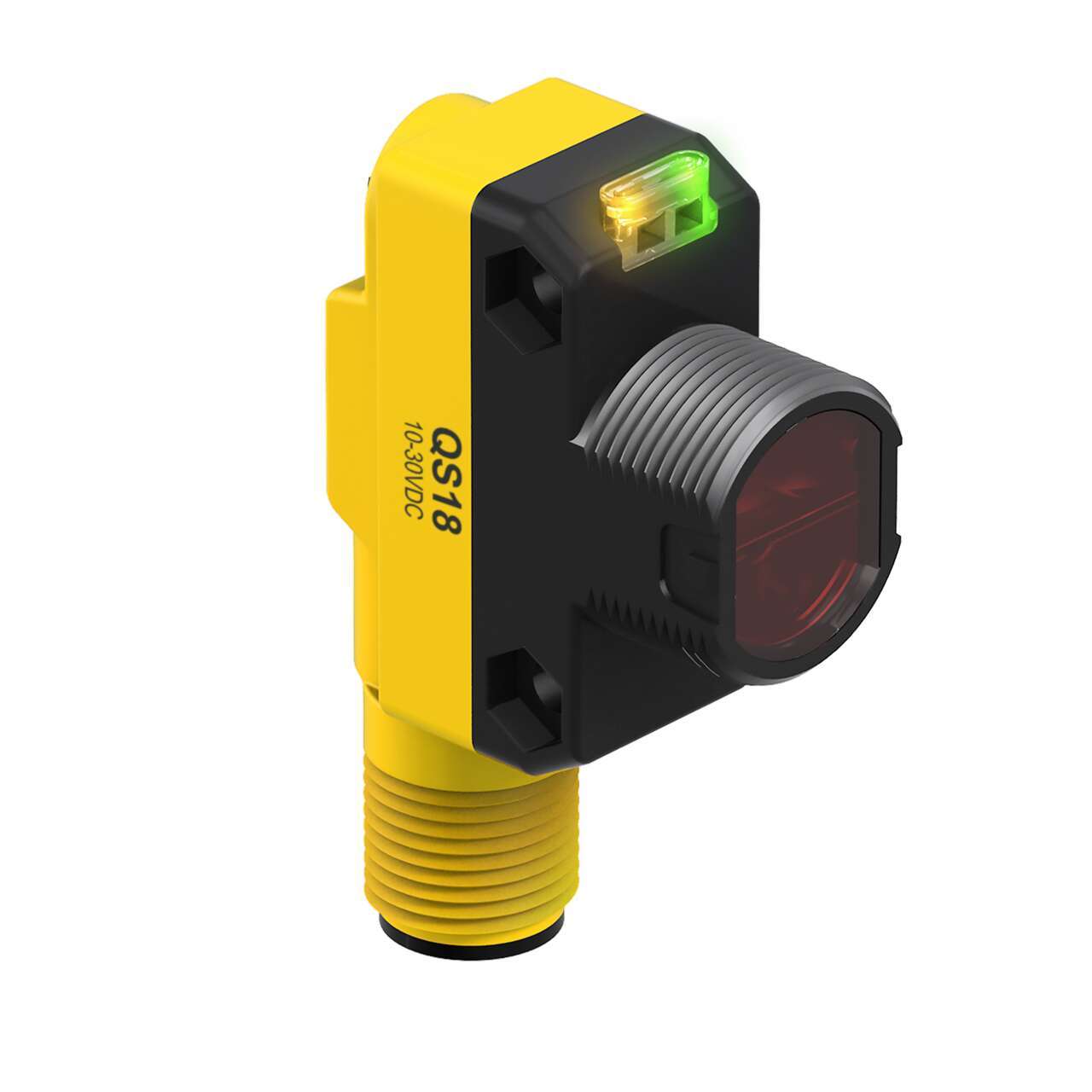

QS18VP6DQ8
WORLD-BEAM QS18 Series: Diffuse
Range: 450 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M12 Integral QD
QS18VP6FF100Q8
WORLD-BEAM QS18 Series: Fixed-Field
Range: 100 mm cutoff
Output: Complementary Solid-State PNP
M12 Integral QD
QS18VP6LAF250Q5
WORLD-BEAM QS18 LASER ADJUSTABLE FIELD; CLASS 2
Rng: 20 mm-Cutoff pt (adj btwn 50-250 mm)
Output: PNP
150 mm (6 in) M12 Pigtail QD
QS18VP6LLPQ8
WORLD-BEAM QS18 LASER POLAR RETRO
Range: 0.1-10 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
4-pin M12 Integral QD
QS186EQ8
WORLD-BEAM QS18 Series: Emitter
Range: 20 m; Input: 10-30 V dc
Output: Not Applicable
M12 Integral QD
QS18VP6RQ8
WORLD-BEAM QS18 Series: Receiver
Range: 20 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M12 Integral QD
QS18VP6FF50Q8
WORLD-BEAM QS18 Series: Fixed-Field
Range: 50 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
4-pin M12 Integral QD
QS18EP6XLPCQ8
QS18 Expert Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: PNP
M12 Integral QD
QS18VP6AF300Q5
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 30 to 300 mm; Input: 10-30 V dc
Outputs: Complementary PNP
150 mm (6 in) M12 Pigtail QD
QS18VP6LPQ8
WORLD-BEAM: Polarized Retro
Range: 3.5 m; Input: 10-30 V dc
Outputs: Complementary PNP
M12 Integral QD
QS18VP6LPQ5
WORLD-BEAM: Polarized Retro
Range: 3.5 m; Input: 10-30 V dc
Outputs: Complementary PNP
150 mm (6 in) M12 Pigtail QD
QS18APWLPQ2
WORLD-BEAM QS18 Universal Volt; Polar Retro Visble
Range: 3.5 m; Input: 20-140 V ac/dc
Output: LO; P-MOSFET (Sourcing)
150 mm (6 in) Micro Pigtail QD
QS18VP6FF100Q7
WORLD-BEAM QS18 Series: Fixed-Field
Range: 100 mm cutoff
Output: Complementary Solid-State PNP
M8 Integral QD
QS18AB6AF350Q5
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 30 to 350 mm; Input: 10-30 V dc
Outputs: Bipolar NPN and PNP Light Operate
150 mm (6 in) M12 Pigtail QD
QS18VN6CV20Q5
WORLD-BEAM QS18 Series: Adjustable Convergent
Focal Point: 20 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M12 Pigtail QD
QS18VP6DL W/30
WORLD-BEAM QS18 Series: Diffuse
Range: 600 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
9 m (30 ft) Cable
QS186EBQ7
WORLD-BEAM QS18 Series: Emitter (Flush Front)
Range: 3 m; Input: 10-30 V dc
Output: Not Applicable
M8 Integral QD
QS186LE2Q5
WORLD-BEAM QS18 Series: Laser Class 2; Small Spot
Range: 30 m; Input: 10-30 V dc
Output: Not Applicable
150 mm (6 in) M12 Pigtail QD
QS18VN6AFF200Q5
WORLD-BEAM: Adjustable Field Foreground Suppression
Cutoff Adjustment Range: 30-200 mm; Input: 10-30 V dc
Outputs: Complementary NPN
150 mm (6 in) M12 Pigtail QD
QS18VP6RQ7
WORLD-BEAM QS18 Series: Receiver
Range: 20 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M8 Integral QD
QS18APH6FF150Q8
WORLD-BEAM QS18 Series: Fixed-Field
Range: 150 mm; Input: 10-30 V dc
Output: Light Operate Solid-State PNP
M12 Integral QD
QS18VN6LLPQ
WORLD-BEAM QS18 LASER POLAR RETRO
Range: 0.1-10 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm M8 Pigtail QD
QS18EN6DQ8
WORLD-BEAM QS18 Expert Series: Diffuse
Range: 800 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
4-pin M12 Integral QD
QS18VP6AF250Q7
WORLD-BEAM: Adjustable Field
Range: 250 mm; Input: 10-30 V dc
Outputs: Complementary PNP
M8 Integral QD
QS186LE212Q
WORLD-BEAM QS18 Series: Laser Class 2; Horizntal
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
150 mm (6 in) M8 Pigtail QD
QS18VP6LV W/30
WORLD-BEAM QS18 Series: Non-Polarized Retro
Range: 6.5 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
9 m (30 ft) Cable
QS18VN6FF150Q5
WORLD-BEAM Q18 Series: Fixed-Field
Range: 150 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M12 Pigtail QD
QS18VN6CV45
WORLD-BEAM QS18 Series: Convergent
Focal Point: 43 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
2 m (6.5 ft) Cable
QS18VN6LVQ8
WORLD-BEAM QS18 Series: Retro
Range: 6.5 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
M12 Integral QD
QS18APWLP
WORLD-BEAM QS18 Universal Volt; Polar Retro Visible
Range: 3.5 m; Input: 20-140 V ac/dc
Output: LO; P-MOSFET (Sourcing)
2 m Cable
QS18VP6DB
WORLD-BEAM QS18 Series: Diffuse (Flush Front)
Range: 450 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
2 m (6.5 ft) Cable
QS18VN6RBQ5
WORLD-BEAM QS18 Series: Receiver (FLush Front)
Range: 3 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M12 Pigtail QD
QS18VP6FF50
WORLD-BEAM QS18 Series: Fixed-Field
Range: 50 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
2 m (6.5 ft) Cable
QS18VP6LLPQPMA
WORLD-BEAM QS18 LASER POLAR RETRO
Range: 0.1-10 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm M12 Pigtail QD
QS18EN6LPQ7
WORLD-BEAM QS18 Expert Series: Polar Retro
Range: 3.5 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
M8 Integral QD
QS18VN6XLPQ
QS18 Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: Complementary NPN
150 mm (6 in) PVC Cable model with a 4-pin M8/M8 QD
QS18VP6LAFQ5
WORLD-BEAM QS18 Series: Laser Adjustable-Field
Range: Cutoff Adjusts Between 30-150 mm; 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M12 Pigtail QD
QS18EK6DVQ5
WORLD-BEAM QS18 Expert Series: Diffuse
Range: 600 mm; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
150 mm (6 in) M12 Pigtail QD
QS18VP6D
WORLD-BEAM QS18 Series: Diffuse
Range: 450 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
2 m (6.5 ft) Cable
QS186LE211 W/30
WORLD-BEAM QS18 Series: Laser Class 2; Vertical Li
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
9 m (30 ft) Cable
QS18VN6AF300Q
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 30 to 300 mm; Input: 10-30 V dc
Outputs: Complementary NPN
150 mm (6 in) M8 Pigtail QD
QS18EP6DQ
WORLD-BEAM QS18 Expert Series: Diffuse
Range: 800 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M8 Pigtail QD
QS18VN6LLPQ8
WORLD-BEAM QS18 LASER POLAR RETRO
Range: 0.1-10 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
4-pin M12 Integral QD
QS186LE10
WORLD-BEAM QS18 Series: Laser Class 1; Circle
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
2 m Cable
QS18VP6DVS W/30
WORLD-BEAM QS18 Series: Small Spot Diffuse Vis. Red
Range: 250 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
9 m (30 ft) Cable
QS18EK6DVQ8
WORLD-BEAM QS18 Expert Series: Diffuse
Range: 600 mm; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
M12 Integral QD
QS18K6AF250Q7
WORLD-BEAM: Adjustable Field
Range: 250 mm; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
M8 Integral QD
QS18VP6DL
WORLD-BEAM QS18 Series: Diffuse
Range: 600 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
2 m (6.5 ft) Cable
QS18VN6XLPQ7
QS18 Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: Complementary NPN
4-pin M8 Integral QD
QS18EK6XLPCQ5
QS18 Expert Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
150 mm (6 in) M12 Pigtail QD
QS18VP6RBQ
WORLD-BEAM: QS18 Series: Receiver (Flush Front)
Range: 3 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M8 Pigtail QD
QS18VN6LAF
WORLD-BEAM QS18 Series: Adjustable-Field
Range: 1 mm to cutoff pt; Adjust. cutoff pt 30-150 mm
Output: Complementary Solid-State NPN
2 m (6.5 ft) Cable
QS18EP6LP
WORLD-BEAM QS18 Expert Series: Polar Retro
Range: 3500 mm; Input: 10-30 V dc
Output: PNP
2 m (6.5 ft) Cable
QS18EP6WQPMA
WORLD-BEAM QS18 Expert; Divergent Diffuse
Range: 300 mm; Input: 10-30 V dc
Output: PNP
150 mm M12 Pigtail QD
QS18EP6LPQ8
WORLD-BEAM QS18 Expert Series: Polar Retro
Range: 3.5 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
4-pin M12 Integral QD
QS18VP6AF350
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 30 to 350 mm; Input: 10-30 V dc
Outputs: Complementary PNP
2 m (6.5 ft) Cable
QS18VP6LAFQPMA
WORLD-BEAM QS18 Series: Adjustable-Field
Range: 1 mm to cutoff pt; Adjust. cutoff pt 30-150 mm
Output: Complementary Solid-State PNP
150 mm (6 in) M12 PUR Pigtail QD
QS18VN6LD
WORLD-BEAM QS18 Series: Laser Diffuse
Range: 300 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
2 m (6.5 ft) Cable
QS18VP6AF120Q5
WORLD-BEAM: Adjustable Field
Range: 120 mm; Input: 10-30 V dc
Outputs: Complementary PNP
150 mm (6 in) M12 Pigtail QD
QS18VP6XLPQ7
QS18 Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: Complementary PNP
M8 Integral QD
QS18EK6XLPCQ
QS18 Expert Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
150 mm (6 in) M8 Pigtail QD
QS18EK6XLPC
QS18 Expert Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
2 m (6.5 ft) Cable
QS18VP6LDQ8
WORLD-BEAM QS18 Series: Laser Diffuse
Range: 300 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
4-pin M12 Integral QD
QS18VN6LDQ
WORLD-BEAM QS18 Series: Laser Diffuse
Range: 300 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) 4-pin M8 Pigtail QD
QS18VP6WQ5
WORLD-BEAM QS18 Series: Divergent Diffuse
Range: 100 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M12 Pigtail QD
QS18VN6DVSQ5
WORLD-BEAM QS18 Series: Small Spot Diffuse Vis. Red
Range: 250 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M12 Pigtail QD
QS18VP6FF100QPMA
WORLD-BEAM QS18 FIXED-FIELD
Range: 0-100 mm Cutoff; 10-30 V dc
Output: PNP
150 mm M12 Pigtail QD
QS18VN6LP
WORLD-BEAM QS18 Series: Polarized Retro
Range: 3.5 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
2 m (6.5 ft) Cable
QS186LE211Q8
WORLD-BEAM QS18 Series: Laser Class 2; Vertical Line
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
M12 Integral QD
QS18VN6CV15Q8
WORLD-BEAM QS18 Series: Convergent
Focal Point: 16 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
M12 Integral QD
QS18VN6AF250Q8
WORLD-BEAM: Adjustable Field
Range: 250 mm; Input: 10-30 V dc
Outputs: Complementary NPN
M12 Integral QD
QS18VN6AF120Q7
WORLD-BEAM: Adjustable Field
Range: 120 mm; Input: 10-30 V dc
Outputs: Complementary NPN
M8 Integral QD
QS18VP6CV45Q
WORLD-BEAM QS18 Series: Convergent
Focal Point: 43 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M8 Pigtail QD
QS18VP6CV15
WORLD-BEAM QS18 Series: Convergent
Focal Point: 16 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
2 m (6.5 ft) Cable
QS18VP6LD W/30
WORLD-BEAM QS18 Series: Diffuse
Range: 300 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
9 m (30 ft) Cable
QS18APWDLQ2
WORLD-BEAM QS18 Universal Volt; Diffuse Visble R
Range: 450 mm; Input: 20-140 V ac/dc
Output: LO; P-MOSFET (Sourcing)
150 mm (6 in) Micro Pigtail QD
QS18VN6AF300 W/30
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 30 to 300 mm; Input: 10-30 V dc
Outputs: Complementary NPN
9 m (30 ft) Cable
QS18VP6WQ8
WORLD-BEAM QS18 Series: Divergent Diffuse
Range: 100 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M12 Integral QD
QS186EV
WORLD-BEAM QS18 Series: Visible Red Emitter
Range: 20 m; Input: 10-30 V dc
Output: Not Applicable
2 m (6.5 ft) Cable
QS18VN6AF250Q7
WORLD-BEAM: Adjustable Field
Range: 250 mm; Input: 10-30 V dc
Outputs: Complementary NPN
M8 Integral QD
QS18RPWDXL
WORLD-BEAM QS18 Univ Volt; Diffuse: Infrared
Range: 1 m; Input: 20-140 V ac/dc
Output: D.O. P-MOSFET (Sourcing)
2 m Cable
QS18EP6CV15
WORLD-BEAM QS18 Expert Series: Convergent
Focal Point: 16 mm; Input: 10-30 V dc
Output: PNP
2 m (6.5 ft) Cable
QS18EN6XLPCQ8
QS18 Expert Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: NPN
M12 Integral QD
QS18K6AF120Q
WORLD-BEAM: Adjustable Field
Range: 120 mm; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
150 mm (6 in) M8 Pigtail QD
QS18EP6CV45Q5
WORLD-BEAM QS18 Expert Series: Convergent
Focal Point 43 mm; Input: 10-30 V dc
Output: Convergent
150 mm (6 in) M12 Pigtail QD
QS18VP6FF50 W/30
WORLD-BEAM QS18 Series: Fixed-Field
Range: 50 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
9 m (30 ft) Cable
QS18APWRQ2
WORLD-BEAM QS18 Universal Voltage; Opposed Infrared
Range: 20 m; Input: 20-140 V ac/dc
Output: LO; P-MOSFET (Sourcing)
150 mm (6 in) Micro Pigtail QD
QS18VP6AFF40Q5
WORLD-BEAM: Adjustable Field Foreground Suppression
Cutoff Adjustment Range: 15-40 mm; Input: 10-30 V dc
Outputs: Complementary PNP
150 mm (6 in) M12 Pigtail QD
QS18VP6DVSQ
WORLD-BEAM QS18 Series: Small Spot Diffuse Vis. Red
Range: 250 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M8 Pigtail QD
QS18APWDL
WORLD-BEAM QS18 Universal Volt; Diffuse Visible R
Range: 450 mm; Input: 20-140 V ac/dc
Output: LO; P-MOSFET (Sourcing)
2 m (6.5 ft) Cable
QS18ANWLVQ2
WORLD-BEAM QS18 Universal Volt; Retro Visible Re
Range: 6.5 m; Input: 20-270 V ac/dc
Output: LO; N-MOSFET (Sinking)
150 mm (6 in) Micro Pigtail QD
QS18APWDLC1
WORLD-BEAM QS18 Universal Voltage; Diffuse Visible Red
Range: 450 mm; Input: 20-270 V ac/dc
Output: LO; P-MOSFET (Sourcing)
2 m (6.5 ft) 600 Volt Cable
QS18VN6RBQ8
WORLD-BEAM QS18 Series: Receiver (Flush Front)
Range: 3 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
M12 Integral QD
QS18VN6DB
WORLD-BEAM QS18 Series: Diffuse (Flush Front)
Range: 450 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
2 m (6.5 ft) Cable
QS18EK6EV
WORLD-BEAM QS18 Series: Visible Red Emitter
Range: 20 m; Input: 10-30 V dc
Output: Not Applicable
2 m (6.5 ft) Cable
QS186LE211
WORLD-BEAM QS18 Series: Laser Class 2; Vertical Li
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
2 m (6.5 ft) Cable
QS18EN6DVQ8
WORLD-BEAM QS18 Expert Series; Diffuse
Range: 600 mm; Input: 10-30 V dc
Output: NPN
4-pin M12 Integral QD
QS18VP6DQPMA
WORLD-BEAM QS18 DIFFUSE
Range: 450 mm; Input: 10-30 V dc
Output: PNP
150 mm M12 Pigtail QD
QS18APWLV
WORLD-BEAM QS18 Universal Volt; Retro Visible Re
Range: 6.5 m Input: 20-140 V ac/dc
Output: LO; P-MOSFET (Sourcing)
2 m Cable
QS18VN6DBQ8
WORLD-BEAM QS18 Series: Diffuse (Flush Front)
Range: 450 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
M12 Integral QD
QS18VN6FF100 W/30
WORLD-BEAM QS18 Series: Fixed-Field
Range: 100 mm cutoff
Output: Complementary Solid-State NPN
9 m (30 ft) Cable
QS18VP6LDQ7
WORLD-BEAM QS18 Series: Laser Diffuse
Range: 300 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
4-pin M8 Integral QD
QS18RNWDXL
WORLD-BEAM QS18 Univ Volt; Diffuse Infrared
Range: 1 m; Input: 20-270 V ac/dc
Output: D.O. N-MOSFET (Sinking)
2 m Cable
QS18VP6AF350Q5
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 30 to 350 mm; Input: 10-30 V dc
Outputs: Complementary PNP
150 mm (6 in) M12 Pigtail QD
QS18EP6WQ5
WORLD-BEAM QS18 Expert Series: Divergent Diffuse
Range: 300 mm; Input: 10-30 V dc
Output: PNP
150 mm (6 in) M12 Pigtail QD
QS18VN6D
WORLD-BEAM QS18 Series: Diffuse
Range: 450 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
2 m (6.5 ft) Cable
QS186LE210Q5
WORLD-BEAM QS18 Series: Laser Class 2; Circle
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
150 mm (6 in) M12 Pigtail QD
QS18EP6DBQ8
WORLD-BEAM QS18 Expert Series: Diffuse
Range: 500 mm; Input: 10-30 V dc
Output: PNP
M12 Integral QD
QS186EVQ
WORLD-BEAM QS18 Series: Visible Red Emitter
Range: 20 m; Input: 10-30 V dc
Output: Not Applicable
M8 150 mm (6 in) Pigtail QD
QS18VN6LPQ
WORLD-BEAM QS18: Polarized Retro
Range: 3.5 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M8 Pigtail QD
QS18VP6AF120Q
WORLD-BEAM: Adjustable Field
Range: 120 mm; Input: 10-30 V dc
Outputs: Complementary PNP
150 mm (6 in) M8 Pigtail QD
QS18VP6XLPQ5
QS18 Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: Complementary PNP
150 mm (6 in) M12 Pigtail QD
QS18VP6FF150Q
WORLD-BEAM Q18 Series: Fixed-Field
Range: 150 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M8 Pigtail QD
QS18VN6LAFQ5
WORLD-BEAM QS18 Series: Adjustable-Field
Range: 1 mm to cutoff pt; Adjust. cutoff pt 30-150 mm
Output: Complementary Solid-State NPN
150 mm (6 in) M12 Pigtail QD
QS18EN6LPQ8
WORLD-BEAM QS18 Expert Series: Polar Retro
Range: 3.5 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
M12 Integral QD
QS18EP6DV
WORLD-BEAM QS18 Expert Series; Diffuse
Range: 600 mm; Input: 10-30 V dc
Output: PNP
2 m Cable
QS18EN6DBQ8
WORLD-BEAM QS18 Expert Series: Diffuse
Range: 500 mm; Input: 10-30 V dc
Output: NPN
M12 Integral QD
QS186EQ
WORLD-BEAM QS18 Series: Emitter
Range: 20 m; Input: 10-30 V dc
Output: Not Applicable
150 mm (6 in) M8 Pigtail QD
QS18VN6FF50
WORLD-BEAM Q18 Series: Fixed-Field
Range: 50 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
2 m (6.5 ft) Cable
QS18APWR
WORLD-BEAM QS18 Universal Voltage; Opposed Infrar
Range: 20 m; Input: 20-140 V ac/dc
Output: LO; P-MOSFET (Sourcing)
2 m Cable
QS186LE2Q8
WORLD-BEAM QS18 Series: Laser Class 2; Small Spot
Range: 30 m; Input: 10-30 V dc
Output: Not Applicable
4-pin M12 QD
QS18VP6LLPQ5
WORLD-BEAM QS18 LASER POLAR RETRO
Range: 0.1-10 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm M12 Pigtail QD
QS18VP6LPQ7-3
WORLD-BEAM: Polarized Retro
Range: 3.5 m; Input: 10-30 V dc
Outputs: PNP LO
Integral 3-pin M8 QD
QS18VP6DLQ5
WORLD-BEAM QS18 Series: Diffuse
Range: 600 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M12 Pigtail QD
QS18VN6FF50Q
WORLD-BEAM Q18 Series: Fixed-Field
Range: 50 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M8 Pigtail QD
QS18VP6AF100Q
WORLD-BEAM: Adjustable Field
Range: 1-100 mm Adj Cutoff: 20-100 mm; Input: 10-30 V dc
Outputs: Complementary PNP
150 mm (6 in) M8 Pigtail QD
QS18VP6AFF200Q5
WORLD-BEAM: Adjustable Field Foreground Suppression
Cutoff Adjustment Range: 30-200 mm; Input: 10-30 V dc
Outputs: Complementary PNP
150 mm (6 in) M12 Pigtail QD
QS18VN6LDQ5
WORLD-BEAM QS18 Series: Laser Diffuse
Range: 300 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) 4-pin M12 Pigtail QD
QS18AB6AF300Q5
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 30 to 300 mm; Input: 10-30 V dc
Outputs: Bipolar NPN and PNP Light Operate
150 mm (6 in) M12 Pigtail QD
QS18VP6RB W/30
WORLD-BEAM QS18 Series: Receiver
Range: 3 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
9 m (30 ft) Cable
QS18EK6DQ7
WORLD-BEAM QS18 Expert Series: Diffuse
Range: 800 mm; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
M8 Integral QD
QS18VP6AF120Q7
WORLD-BEAM: Adjustable Field
Range: 120 mm; Input: 10-30 V dc
Outputs: Complementary PNP
M8 Integral QD
QS186LE214Q5
WORLD-BEAM QS18 Series: Laser Class 2; Cross
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
150 mm (6 in) M12 Pigtail QD
QS18VP6AF100
WORLD-BEAM: Adjustable Field
Range: 1-100 mm Adj Cutoff: 20-100 mm; Input: 10-30 V dc
Outputs: Complementary PNP
2 m (6.5 ft) Cable
QS18VN6AF350
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 30 to 350 mm; Input: 10-30 V dc
Outputs: Complementary NPN
2 m (6.5 ft) Cable
QS18RPWLVQ2
WORLD-BEAM QS18 Univ Volt; Retro; Visible Red
Range: 6.5 m; Input: 20-140 V ac/dc
Output: D.O. P-MOSFET (Sourcing)
150 mm (6 in) Micro Pigtail QD
QS186EVQ8
WORLD-BEAM QS18 Series: Visible Red Emitter
Range: 20 m; Input: 10-30 V dc
Output: Not Applicable
M12 Integral QD
QS186LE211Q
WORLD-BEAM QS18 Series: Laser Class 2; Vertical Line
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
150 mm (6 in) M8 Pigtail QD
QS18EK6LPQ5
WORLD-BEAM QS18 Expert Series: Polar Retro
Range: 3.5 m; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
150 mm (6 in) M12 Pigtail QD
QS18VN6DQ5
WORLD-BEAM QS18 Series: Diffuse
Range: 450 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M12 Pigtail QD
QS18VN6CV15Q
WORLD-BEAM QS18 Series: Convergent
Focal Point: 16 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M8 Pigtail QD
QS18EP6DVQ
WORLD-BEAM QS18 Expert Series; Diffuse
Range: 600 mm; Input: 10-30 V dc
Output: PNP
150 mm M8 Pigtail QD
QS18VP6AF300
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 30 to 300 mm; Input: 10-30 V dc
Outputs: Complementary PNP
2 m (6.5 ft) Cable
QS18VN6DVS
WORLD-BEAM QS18 Series: Small Spot Diffuse Vis. Red
Range: 250 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
2 m (6.5 ft) Cable
QS18VP6FF150
WORLD-BEAM Q18 Series: Fixed-Field
Range: 150 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
2 m (6.5 ft) Cable
QS186LE12Q8
WORLD-BEAM QS18 Series: Laser Class 1; Horizontal Line
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
M12 Integral QD
QS18AP6AF300Q3-3
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 30-300 mm; Input: 10-30 V dc
Outputs: PNP L.O.
150 mm (6 in) 3-pin M8 Pigtail QD
QS18RB6LPQPMA
WORLD-BEAM QS18 Series: Polarized Retro
Range: 3.5 m; Input: 10-30 V dc
Output: Bipolar Dark-Operate
150 mm (6 in) M12 Pigtail QD
QS18VN6FF100Q8
WORLD-BEAM QS18 Series: Fixed-Field
Range: 100 mm cutoff
Output: Complementary Solid-State NPN
M12 Integral QD
QS18VP6LDQPMA
WORLD-BEAM QS18 DIFFUSE LASER CLASS 1
Range: 300 mm; Input: 10-30 V dc
Output: PNP
150 mm M12 Pigtail QD
QS186LE212Q8
WORLD-BEAM QS18 Series: Laser Class 2; Horizontal
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
M12 Integral QD
QS18VN6CV15Q5
WORLD-BEAM QS18 Series: Convergent
Focal Point: 16 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M12 Pigtail QD
QS18VP6AF250Q8
WORLD-BEAM: Adjustable Field
Range: 250 mm; Input: 10-30 V dc
Outputs: Complementary PNP
M12 Integral QD
QS18VP6CV15Q
WORLD-BEAM QS18 Series: Convergent
Focal Point: 16 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M8 Pigtail QD
QS18VN6CV45Q5
WORLD-BEAM QS18 Series: Convergent
Focal Point: 43 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M12 Pigtail QD
QS18VN6DLQ
WORLD-BEAM QS18 Series: Diffuse
Range: 600 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
M8 150 mm (6 in) Pigtail QD
QS186LE214Q8
WORLD-BEAM QS18 Series: Laser Class 2; Cross
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
4-pin M12 QD
QS18VP6CV20
WORLD-BEAM QS18 Series: Adjustable Convergent
Focal Point: 20 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
2 m (6.5 ft) Cable
QS18VP6DVSQ5
WORLD-BEAM QS18 Series: Small Spot Diffuse Vis. Red
Range: 250 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M12 Pigtail QD
QS18VP6LP W/30
WORLD-BEAM: Polarized Retro
Range: 3.5 m; Input: 10-30 V dc
Output: Complementary PNP
9 m (30 ft) Cable
QS18VP6LDQ5
WORLD-BEAM QS18 Series: Laser Diffuse
Range: 300 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) 4-pin M12 Pigtail QD
QS18VP6CV45Q8
WORLD-BEAM QS18 Series: Convergent
Focal Point: 43 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M12 Integral QD
QS18VN6LAFQ
WORLD-BEAM QS18 Series: Adjustable-Field
Range: 1 mm to cutoff pt; Adjust. cutoff pt 30-150 mm
Output: Complementary Solid-State NPN
150 mm (6 in) M8 Pigtail QD
QS18VP6LPQ9
WORLD-BEAM QS18 Series: Polarized Retro
Range: 3.5 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M8 Integral QD
QS18EN6DV
WORLD-BEAM QS18 Expert Series; Diffuse
Range: 600 mm; Input: 10-30 V dc
Output: NPN
2 m Cable
QS18VN6DQ8
WORLD-BEAM QS18 Series: Diffuse
Range: 450 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
M12 Integral QD
QS18RPWLPQ2
WORLD-BEAM QS18 Univ Volt; Polar Retro; Vis Red
Range: 3.5 m; Input: 20-140 V ac/dc
Output: D.O. P-MOSFET (Sourcing)
150 mm (6 in) Micro Pigtail QD
QS18VN6AF350Q5
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 30 to 350 mm; Input: 10-30 V dc
Outputs: Complementary NPN
150 mm (6 in) M12 Pigtail QD
QS18VN6AF250Q
WORLD-BEAM: Adjustable Field
Range: 250 mm; Input: 10-30 V dc
Outputs: Complementary NPN
150 mm (6 in) M8 Pigtail QD
QS18EP6XLPC
QS18 Expert Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: PNP
2 m (6.5 ft) Cable
QS18EK6RQ7
WORLD-BEAM QS18 Series: Receiver
Range: 20 m; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
M8 Integral QD
QS18VP6DBQ
WORLD-BEAM QS18 Series: Diffuse
Range: 450 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M8 Pigtail QD
QS18VP6AF120Q8
WORLD-BEAM: Adjustable Field
Range: 120 mm; Input: 10-30 V dc
Outputs: Complementary PNP
M12 Integral QD
QS18VP6RQPMA
WORLD-BEAM QS18 OPPOSED
Range: 20 m; Input: 10-30 V dc
Output: PNP
150 mm M12 Pigtail QD
QS18VP6DQ7
WORLD-BEAM QS18 Series: Diffuse
Range: 450 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M8 Integral QD
QS18VP6W
WORLD-BEAM QS18 Series: Divergent Diffuse
Range: 100 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
2 m (6.5 ft) Cable
QS18EP6WQ7
WORLD-BEAM QS18 Expert Series: Divergent Diffuse
Range: 300 mm; Input: 10-30 V dc
Output: PNP
M8 Integral QD
QS18VN6LAF250
WORLD-BEAM QS18 Laser Adjustable Field; Class 2 La
Rng: 20 mm-Cutoff pt (adj btwn 50-250 mm)
Output: NPN
2 m Cable
QS18AB6AF40Q5
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 15-40 mm; Input: 10-30 V dc
Outputs: Bipolar NPN and PNP Light Operate
150 mm (6 in) M12 Pigtail QD
QS18AB6AF300
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 30 to 300 mm; Input: 10-30 V dc
Outputs: Bipolar NPN and PNP Light Operate
2 m (6.5 ft) Cable
QS186LE214Q
WORLD-BEAM QS18 Series: Laser Class 2; Cross
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
150 mm (6 in) M8 Pigtail QD
QS18VP6LPQ7
WORLD-BEAM: Polarized Retro
Range: 3.5 m; Input: 10-30 V dc
Outputs: Complementary PNP
M8 Integral Snap/Threaded QD
QS18VN6AF120
WORLD-BEAM: Adjustable Field
Range: 120 mm; Input: 10-30 V dc
Outputs: Complementary NPN
2 m (6.5 ft) Cable
QS18VN6XLP
QS18 Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: Complementary NPN
2 m (6.5 ft) Cable
QS18VP6CV15Q5
WORLD-BEAM QS18 Series: Convergent
Focal Point: 16 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M12 Pigtail QD
QS18EK6RQ8
WORLD-BEAM QS18 Series: Receiver
Range: 20 m; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
M12 Integral QD
QS18APWLPC1
WORLD-BEAM QS18 Series: Polarized Retro
Range: 3.5 m; Input: 20-140 V ac/dc
Output: Light Operate Solid-State P-MOSFET
2 m (6.5 ft) Cable
QS18VP6DBQ8
WORLD-BEAM QS18 Series: Diffuse (Flush Front)
Range: 450 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M12 Integral QD
QS18VP6CV15Q8
WORLD-BEAM QS18 Series: Convergent
Focal Point: 16 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M12 Integral QD
QS18EP6DVQPMA20
WORLD-BEAM QS18 Expert Series; Diffuse
Visible, Range: 600 mm; Input: 10-30 V dc
Output: PNP
150 mm (6 in) 4-pin M12 PUR Pigtail QD, Pin 2 open, L.O.
QS186LE
WORLD-BEAM QS18 Series: Laser Class 1
Range: 30 m; Input: 10-30 V dc
Output: Not Applicable
2 m (6.5 ft) Cable
QS18EN6LPQ
WORLD-BEAM QS18 Expert Series: Polar Retro
Range: 3500 mm; Input: 10-30 V dc
Output: NPN
150 mm (6 in) M8 Pigtail QD
QS186LEQ7
WORLD-BEAM QS18 Series: Laser Class 1
Range: 30 m; Input: 10-30 V dc
Output: Not Applicable
4-pin M8 Integral Snap-fit QD
QS186LE212
WORLD-BEAM QS18 Series: Laser Class 2; Horizontal
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
2 m (6.5 ft) Cable
QS18EP6CV45Q8
WORLD-BEAM QS18 Expert Series: Convergent
Focal Point 43 mm; Input: 10-30 V dc
Output: Convergent
M12 Integral QD
QS18VN6RQ
WORLD-BEAM QS18 Series: Receiver
Range: 20 m; Input 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M8 Pigtail QD
QS18VN6AF300Q5
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 30 to 300 mm; Input: 10-30 V dc
Outputs: Complementary NPN
150 mm (6 in) M12 Pigtail QD
QS18EK6EVQ5
WORLD-BEAM QS18 Series: Visible Red Emitter
Range: 20 m; Input: 10-30 V dc
Output: Not Applicable
150 mm (6 in) M12 Pigtail QD
QS18EK6RQ5
WORLD-BEAM QS18 Series: Receiver
Range: 20 m; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
150 mm (6 in) M12 Pigtail QD
QS18EK6EQ8
WORLD-BEAM QS18 Series: Infrared Emitter
Range: 20 m; Input: 10-30 V dc
Output: Not Applicable
M12 Integral QD
QS18VP6DL-RJ11-2M
WORLD-BEAM QS18 Series: Diffuse
Range: 600 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
2 m (6.5 ft) RJ11 Cable
QS18VN6DLQ5
WORLD-BEAM QS18 Series: Diffuse
Range: 600 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M12 Pigtail QD
QS18ANWDXLQ2
WORLD-BEAM QS18 Universal Volt; Diffuse Vis R
Range: 1 m; Input: 20-270 V ac/dc
Output: LO; N-MOSFET (Sinking)
150 mm (6 in) Micro Pigtail QD
QS18ANWLV
WORLD-BEAM QS18 Universal Volt; Retro Visible Re
Range: 6.5 m; Input: 20-270 V ac/dc
Output: LO; N-MOSFET (Sinking)
2 m Cable
QS18VP6R
WORLD-BEAM QS18 Series: Receiver
Range: 20 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
2 m (6.5 ft) Cable
QS18VN6WQ8
WORLD-BEAM QS18 Series: Diffuse
Range: 100 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
M12 Integral QD
QS18WE
WORLD-BEAM QS18 Universal Voltage Emitter
Range: 20 m
Output: Not Applicable
2 m Cable
QS18VN6LV
WORLD-BEAM QS18 Series: Retro
Range: 6.5 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
2 m (6.5 ft) Cable
QS18VN6LPQ5
WORLD-BEAM QS18: Polarized Retro
Range: 3.5 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M12 Pigtail QD
QS18VP6LAF250
WORLD-BEAM QS18 LASER ADJUSTABLE FIELD; CLASS 2
Rng: 20 mm-Cutoff pt (adj btwn 50-250 mm)
Output: PNP
2 m Cable
QS18VN6AF120Q8
WORLD-BEAM: Adjustable Field
Range: 120 mm; Input: 10-30 V dc
Outputs: Complementary NPN
M12 Integral QD
QS18ANWDLQ2
WORLD-BEAM QS18 Universal Volt; Diffuse Visble R
Range: 450 mm; Input: 20-270 V ac/dc
Output: LO; N-MOSFET (Sinking)
150 mm (6 in) Micro Pigtail QD
QS18VN6FF50Q7
WORLD-BEAM QS18 Series: Fixed-Field
Range: 50 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
M8 Integral QD
QS18VN6FF50Q5
WORLD-BEAM QS18 Series: Fixed-Field
Range: 50 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M12 Pigtail QD
QS18EN6CV15
WORLD-BEAM QS18 Expert Series: Convergent
Focal Point: 16 mm; Input: 10-30 V dc
Output: NPN
2 m (6.5 ft) Cable
QS18AB6AFF40Q5
WORLD-BEAM: Adjustable Field Foreground Suppression
Cutoff Adjustment Range: 15-40 mm; Input: 10-30 V dc
Outputs: Bipolar NPN and PNP Light Operate
150 mm (6 in) M12 Pigtail QD
QS18VN6FF50 W/30
WORLD-BEAM QS18 Series: Fixed-Field
Range: 50 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
9 m (30 ft) Cable
QS18K6AF120Q8
WORLD-BEAM: Adjustable Field
Range: 120 mm; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
M12 Integral QD
QS18EP6CV15Q8
WORLD-BEAM QS18 Expert Series: Convergent
Focal Point: 16 mm; Input: 10-30 V dc
Output: Convergent
M12 Integral QD
QS18VN6LDQ8
WORLD-BEAM QS18 Series: Laser Diffuse
Range: 300 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
4-pin M12 Integral QD
QS18RNWLP
WORLD-BEAM QS18 Univ Volt; Polar Retro Vis Red
Range: 3.5 m; Input: 20-270 V ac/dc
Output: D.O. N-MOSFET (Sinking)
2 m Cable
QS18EP6CV45Q
WORLD-BEAM QS18 Expert Series: Convergent
Focal Point: 43 mm; Input: 10-30 V dc
Output: PNP
150 mm (6 in) M8 Pigtail QD
QS18VN6CV15
WORLD-BEAM QS18 Series: Convergent
Focal Point: 16 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
2 m (6.5 ft) Cable
QS186LE210Q8
WORLD-BEAM QS18 Series: Laser Class 2; Circle
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
M12 Integral QD
QS18VP6AFF200
WORLD-BEAM: Adjustable Field Foreground Suppression
Cutoff Adjustment Range: 30-200 mm; Input: 10-30 V dc
Outputs: Complementary PNP
2 m (6.5 ft) Cable
QS18VP6AF100Q5
WORLD-BEAM: Adjustable Field
Range: 1-100 mm Adj Cutoff: 20-100 mm; Input: 10-30 V dc
Outputs: Complementary PNP
150 mm (6 in) M12 Pigtail QD
QS18VN6AF120Q5
WORLD-BEAM: Adjustable Field
Range: 120 mm; Input: 10-30 V dc
Outputs: Complementary NPN
150 mm (6 in) M12 Pigtail QD
QS18VN6FF100-CNJC03
WORLD-BEAM QS18 Series: Fixed-Field
Range: 100 mm cutoff
Output: Complementary Solid-State NPN
2 m (16.4 ft) Cable China
QS186LE214
WORLD-BEAM QS18 Series: Laser Class 2; Cross
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
2 m (6.5 ft) Cable
QS18EP6DBQ
WORLD-BEAM QS18 Expert Series: Diffuse
Range: 500 mm; Input: 10-30 V dc
Output: PNP
150 mm (6 in) M8 Pigtail QD
QS18RPWLP
WORLD-BEAM QS18 Univ Volt; Polar Retro; Vis Red
Range: 3.5 m; Input: 20-140 V ac/dc
Output: D.O. P-MOSFET (Sourcing)
2 m Cable
QS18VP6CV45Q5
WORLD-BEAM QS18 Series: Convergent
Focal Point: 43 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M12 Pigtail QD
QS18VN6DBQ5
WORLD-BEAM QS18 Series: Diffuse (Flush Front)
Range: 450 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M12 Pigtail QD
QS18VP6R W/30
WORLD-BEAM QS18 Series: Receiver
Range: 20 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
9 m (30 ft) Cable
QS18AB6AF350
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 30 to 350 mm; Input: 10-30 V dc
Outputs: Bipolar NPN and PNP Light Operate
2 m (6.5 ft) Cable
QS18EK6DQ8
WORLD-BEAM QS18 Expert Series: Diffuse
Range: 800 mm; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
M12 Integral QD
QS18VP6LVQ1
WORLD-BEAM QS18 Series: Non-Polarized Retro
Range: 6.5 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M8 Pigtail QD
QS18VP6C15YQ5
WORLD-BEAM QS18 Series: Convergent
Focal Point: 15 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M12 Pigtail QD
QS18EP6DQ8
WORLD-BEAM QS18 Expert Series: Diffuse
Range: 800 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M12 Integral QD
QS18ANWLPQ2
WORLD-BEAM QS18 Universal Volt; Polar Retro Visbl
Range: 3.5 m; Input: 20-270 V ac/dc
Output: LO; N-MOSFET (Sinking)
150 mm (6 in) Micro Pigtail QD
QS18VP6RBQ7
WORLD-BEAM: QS18 Series: Receiver (Flush Front)
Range: 3 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M8 Integral QD
QS18APWDXL
WORLD-BEAM QS18 Universal Volt; Diffuse Infrared
Range: 1 m; Input: 20-140 V ac/dc
Output: LO; P-MOSFET (Sourcing)
2 m Cable
QS18VP6FF150 W/30
WORLD-BEAM Q18 Series: Fixed-Field
Range: 150 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
9 m (30 ft) Cable
QS18VP6LPQ1
WORLD-BEAM QS18 Series: Polarized Retro
Range: 3.5 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M8 Pigtail QD
QS18VN6DVS W/30
WORLD-BEAM QS18 Series: Small Spot Diffuse Vis. Red
Range: 250 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
9 m (30 ft) Cable
QS186LE11
WORLD-BEAM QS18 Series: Laser Class 1; Vertical Line
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
2 m Cable
QS18VN6AF40
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 15-40 mm; Input: 10-30 V dc
Outputs: Complementary NPN
2 m (6.5 ft) Cable
QS18VN6W
WORLD-BEAM QS18 Series: Diffuse
Range: 100 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
2 m (6.5 ft) Cable
QS18EP6XLPCQ
QS18 Expert Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: PNP
M8 150 mm (6 in) Pigtail QD
QS18VN6AF100Q
WORLD-BEAM: Adjustable Field
Range: 1-100 mm Adj Cutoff: 20-100 mm; Input: 10-30 V dc
Outputs: Complementary NPN
150 mm (6 in) M8 Pigtail QD
QS18VP6DQ
WORLD-BEAM QS18 Series: Diffuse
Range: 450 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M8 Pigtail QD
QS18VP6DL-RJ11-150
WORLD-BEAM QS18 Series: Diffuse
Range: 600 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) Pigtail with RJ11 Connector
QS18VP6RB
WORLD-BEAM: QS18 Series: Receiver (Flush Front)
Range: 3 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
2 m (6.5 ft) Cable
QS186LE11Q5
WORLD-BEAM QS18 Series: Laser Class 1; Vertical Line
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
150 mm (6 in) M12 Pigtail QD
QS18EP6CV15Q5
WORLD-BEAM QS18 Expert Series: Convergent
Focal Point: 16 mm; Input: 10-30 V dc
Output: Convergent
150 mm (6 in) M12 Pigtail QD
QS186EVQ5
WORLD-BEAM QS18 Series: Visible Red Emitter
Range: 20 m; Input: 10-30 V dc
Output: Not Applicable
150 mm (6 in) M12 Pigtail QD
QS186LEQPMA
WORLD-BEAM QS18 Series: Laser Class 1
Range: 30 m; Input: 10-30 V dc
Output: Not Applicable
4-pin 150 m (6 in) M12 PUR Pigtail QD
QS18VP6RQ
WORLD-BEAM QS18 Series: Receiver
Range: 20 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M8 Pigtail QD
QS186LEQPMA15
WORLD-BEAM QS18 Series: Laser Class 1; Small Spot
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
150 mm (6 in) M12 Pigtail QD
QS18VN6LDQ7
WORLD-BEAM QS18 Series: Laser Diffuse
Range: 300 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
4-pin M8 Integral QD
QS18EN6WQ8
WORLD-BEAM QS18 Expert Series: Divergent Diffuse
Range: 300 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
M12 Integral QD
QS186EBQ8
WORLD-BEAM QS18 Series: Emitter (Flush Front)
Range: 3 m; Input: 10-30 V dc
Output: Not Applicable
M12 Integral QD
QS18VP6AF250Q5
WORLD-BEAM: Adjustable Field
Range: 250 mm; Input: 10-30 V dc
Outputs: Complementary PNP
150 mm (6 in) M12 Pigtail QD
QS18VP6XLPQ
QS18 Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: Complementary PNP
M8 150 mm (6 in) Pigtail QD
QS18VP6LVQ
WORLD-BEAM QS18 Series: Retro
Range: 6.5 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M8 Pigtail QD
QS18RNWRQ2
WORLD-BEAM QS18 Univ Volt; Opposed; Infrared
Range: 20 m; Input: 20-270 V ac/dc
Output: D.O. N-MOSFET (Sinking)
150 mm (6 in) Micro Pigtail QD
QS18VN6FF100BSZ
WORLD-BEAM QS18 Series Basic: Fixed-Field
Range: 100 mm cutoff
Output: Complementary Solid-State NPN
2 m (6.5 ft) Cable
QS18VP6LAF
WORLD-BEAM QS18 Series: Adjustable-Field
Range: 1 mm to cutoff pt; Adjust. cutoff pt 30-150 mm
Output: Complementary Solid-State PNP
2 m (6.5 ft) Cable
QS18EP6XLPCQ7
QS18 Expert Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: PNP
M8 Integral QD
QS18VP6AF250
WORLD-BEAM: Adjustable Field
Range: 250 mm; Input: 10-30 V dc
Outputs: Complementary PNP
2 m (6.5 ft) Cable
QS18VN6AF300
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 30 to 300 mm; Input: 10-30 V dc
Outputs: Complementary NPN
2 m (6.5 ft) Cable
QS18EP6DQ5
WORLD-BEAM QS18 Expert Series: Diffuse
Range: 800 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) 4-pin M12 Pigtail QD
QS18VP6AF40
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 15-40 mm; Input: 10-30 V dc
Outputs: Complementary PNP
2 m (6.5 ft) Cable
QS18EN6XLPCQ7
QS18 Expert Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: NPN
M8 Integral QD
QS18EN6DVQ
WORLD-BEAM QS18 Expert Series; Diffuse
Range: 600 mm; Input: 10-30 V dc
Output: NPN
150 mm M8 Pigtail QD
QS18VP6DLQ7
WORLD-BEAM QS18 Series: Diffuse
Range: 600 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M8 Integral QD
QS18EP6DBQ5
WORLD-BEAM QS18 Expert Series: Diffuse
Range: 500 mm; Input: 10-30 V dc
Output: PNP
150 mm (6 in) M12 Pigtail QD
QS186EBQ5
WORLD-BEAM QS18 Series: Emitter (Flush Front)
Range: 3 m; Input: 10-30 V dc
Output: Not Applicable
150 mm (6 in) 12 Pigtail QD
QS18VP6LAFQ1
WORLD-BEAM QS18 Series: Adjustable Field
Range: 150 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M8 Pigtail QD
QS18EK6EQ5
WORLD-BEAM QS18 Series: Infrared Emitter
Range: 20 m; Input: 10-30 V dc
Output: Not Applicable
150 mm (6 in) M12 Pigtail QD
QS18VP6FF50Q
WORLD-BEAM QS18 Series: Fixed-Field
Range: 50 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M8 Pigtail QD
QS18EK6EVQ8
WORLD-BEAM QS18 Series: Visible Red Emitter
Range: 20 m; Input: 10-30 V dc
Output: Not Applicable
M12 Integral QD
QS18VP6R-DY02
WORLD-BEAM QS18 Series: Receiver
Range: 36 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
2 m (6.5 ft) Cable
QS18AP6LPQ3
WORLD-BEAM: Polarized Retro
Range: 3.5 m; Input: 10-30 V dc
Output: PNP L.O.
150 mm (6 in) 3-pin M8 Pigtail QD
QS18VP6AF300Q
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 30 to 300 mm; Input: 10-30 V dc
Outputs: Complementary PNP
150 mm (6 in) M8 Pigtail QD
QS18RPWDLQ2
WORLD-BEAM QS18 Univ Volt; Diffuse: Visible Red
Range: 450 mm; Input: 20-140 V ac/dc
Output: D.O. P-MOSFET (Sourcing)
150 mm (6 in) Micro Pigtail QD
QS18EP6LPQPMA
WORLD-BEAM QS18 Expert; Polar Retro Visible Red
Range: 3.5 m; Input: 10-30 V dc
Output: PNP
150 mm M12 Pigtail QD
QS18EP6DB
WORLD-BEAM QS18 Expert Series: Diffuse
Range: 500 mm; Input: 10-30 V dc
Output: PNP
2 m (6.5 ft) Cable
QS18VP6LD
WORLD-BEAM QS18 Series: Laser Diffuse
Range: 300 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
2 m (6.5 ft) Cable
QS18EN6XLPCQ5
QS18 Expert Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: NPN
150 mm (6 in) M12 Pigtail QD
QS18EK6LPQ8
WORLD-BEAM QS18 Expert Series: Polar Retro
Range: 3.5 m; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
M12 Integral QD
QS18VN6FF50Q8
WORLD-BEAM QS18 Series: Fixed-Field
Range: 50 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
M12 Integral QD
QS18VP6FF100
WORLD-BEAM QS18 Series: Fixed-Field
Range: 100 mm cutoff
Output: Complementary Solid-State PNP
2 m (6.5 ft) Cable
QS18EK6DVQ7
WORLD-BEAM QS18 Expert Series: Diffuse
Range: 600 mm; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
M8 Integral QD
QS18VN6R-DY03
WORLD-BEAM QS18 Series: Receiver
Range: 36 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
2 m (6.5 ft) Cable
QS18VP6LP W/15
WORLD-BEAM QS18 Series: Polarized Retro
Range: 3.5 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
4.5 m (15 ft) Cable
QS18VP6LDQ
WORLD-BEAM QS18 Series: Laser Diffuse
Range: 300 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) 4-pin M8 Pigtail QD
QS18VP6DQ5
WORLD-BEAM QS18 Series: Diffuse
Range: 450 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M12 Pigtail QD
QS18EN6XLPC
QS18 Expert Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: NPN
2 m (6.5 ft) Cable
QS18RNWLPQ2
WORLD-BEAM QS18 Univ Volt; Polar Retro Vis Red
Range: 3.5 m; Input: 20-270 V ac/dc
Output: D.O. N-MOSFET (Sinking)
150 mm (6 in) Micro Pigtail QD
QS18VP6LVQ7
WORLD-BEAM QS18 Series: Retro
Range: 6.5 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M8 Integral QD
QS18VP6AF120
WORLD-BEAM: Adjustable Field
Range: 120 mm; Input: 10-30 V dc
Outputs: Complementary PNP
2 m (6.5 ft) Cable
QS18VP6FF150Q7
WORLD-BEAM Q18 Series: Fixed-Field
Range: 150 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M8 Integral QD
QS18EP6LPQ
WORLD-BEAM QS18 Expert Series: Polar Retro
Range: 3500 mm; Input: 10-30 V dc
Output: PNP
150 mm (6 in) M8 Pigtail QD
QS18VN6RQ8
WORLD-BEAM QS18 Series: Receive
Range: 20 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
M12 Integral QD
QS186LE10Q5
WORLD-BEAM QS18 Series: Laser Class 1; Circle
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
150 mm (6 in) M12 Pigtail QD
QS18RPWDXLQ2
WORLD-BEAM QS18 Univ Volt; Diffuse: Infrared
Range: 1 m; Input: 20-140 V ac/dc
Output: D.O. P-MOSFET (Sourcing)
150 mm (6 in) Micro Pigtail QD
QS18EN6LP
WORLD-BEAM QS18 Expert Series: Polar Retro
Range: 3500 mm; Input: 10-30 V dc
Output: NPN
2 m (6.5 ft) Cable
QS186LEQ8
WORLD-BEAM QS18 Series: Laser Class 1
Range: 30 m; Input: 10-30 V dc
Output: Not Applicable
4-pin M12 Integral QD
QS18VN6FF150Q8
WORLD-BEAM Q18 Series: Fixed-Field
Range: 150 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
M12 Integral QD
QS18VN6LPQ7
WORLD-BEAM QS18: Polarized Retro
Range: 3.5 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
M8 Integral QD
QS18VP6WQ
WORLD-BEAM QS18 Series: Divergent Diffuse
Range: 100 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M8 Pigtail QD
QS18VN6LLPQ7
WORLD-BEAM QS18 LASER POLAR RETRO
Range: 0.1-10 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
M8 4-pim Integral QD
QS18VP6LVQ5
WORLD-BEAM QS18 Series: Retro
Range: 6.5 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M12 Pigtail QD
QS18K6AF250Q5
WORLD-BEAM: Adjustable Field
Range: 250 mm; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
150 mm (6 in) M12 Pigtail QD
QS18VP6LAFQ
WORLD-BEAM QS18 Series: Adjustable-Field
Range: 1 mm to cutoff pt; Adjust. cutoff pt 30-150 mm
Output: Complementary Solid-State PNP
150 mm (6 in) M8 Pigtail QD
QS18VN6WQ
WORLD-BEAM QS18 Series: Divergent Diffuse
Range: 100 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M8 Pigtail QD
QS18VP6AF40Q5
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 15-40 mm; Input: 10-30 V dc
Outputs: Complementary PNP
150 mm (6 in) M12 Pigtail QD
QS186LE11Q8
WORLD-BEAM QS18 Series: Laser Class 1; Vertical Line
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
M12 Integral QD
QS18VP6RBQ8
WORLD-BEAM: QS18 Series: Receiver (Flush Front)
Range: 3 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M12 Integral QD
QS18VN6WQ5
WORLD-BEAM QS18 Series: Divergent Diffuse
Range: 100 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M12 Pigtail QD
QS18VP6AF100QPMA
WORLD-BEAM: Adjustable Field
Range: 1 mm Cutoff pt (adj btwn 20-100 mm); Input: 10-30 V dc
Output; PNP
150 mm M12 Pigtail QD
QS18VP6CV45 W/30
WORLD-BEAM QS18 Series: Convergent
Focal Point: 43 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
9 m (30 ft) Cable
QS18VN6CV45Q
WORLD-BEAM QS18 Series: Convergent
Focal Point 43 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M8 Pigtail QD
QS18APWR W/30
WORLD-BEAM QS18 Series: Receiver
Range: 20 m; Input: 20-140 V ac/dc
Output: Light Operate Solid-State P-MOSFET
9 m (30 ft) Cable
QS18VN6LVQ5
WORLD-BEAM QS18 Series: Retro
Range: 6.5 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M12 Pigtail QD
QS18VN6AF100Q5
WORLD-BEAM: Adjustable Field
Range: 1-100 mm Adj Cutoff: 20-100 mm; Input: 10-30 V dc
Outputs: Complementary NPN
150 mm (6 in) M12 Pigtail QD
QS18EN6LPQ5
WORLD-BEAM QS18 Expert Series: Polar Retro
Range: 3.5 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) 4-pin M12 Pigtail QD
QS18VN6DL-CNZS01
WORLD-BEAM QS18 Series: Diffuse
Range: 600 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
2 m (6.5 ft) Cable For China Marketing
QS186E W/30
WORLD-BEAM QS18 Series: Emitter
Range: 20 m; Input: 10-30 V dc
Output: N/A
9 m (30 ft) Cable
QS186E
WORLD-BEAM QS18 Series: Emitter
Range: 20 m; Input: 10-30 V dc
Output: Not Applicable
2 m (6.5 ft) Cable
QS186LE14
WORLD-BEAM QS18 Series: Laser Class 1; Cross
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
2 m Cable
QS18EP6DVQ8
WORLD-BEAM QS18 Expert Series; Diffuse
Range: 600 mm; Input: 10-30 V dc
Output: PNP
4-pin M12 Integral QD
QS18EK6LPQ7
WORLD-BEAM QS18 Expert Series: Polar Retro
Range: 3.5 m; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
M8 Integral QD
QS18VN6AF250Q5
WORLD-BEAM: Adjustable Field
Range: 250 mm; Input: 10-30 V dc
Outputs: Complementary NPN
150 mm (6 in) M12 Pigtail QD
QS186LE W/30
WORLD-BEAM QS18 Series: Laser Class 1
Range: 30 m; Input: 10-30 V dc
Output: Not Applicable
9 m (30 ft) Cable
QS18EK6DVQ
WORLD-BEAM QS18 Expert Series: Diffuse
Range: 600 mm; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
150 mm (6 in) M8 Pigtail QD
QS18VP6DLQ8
WORLD-BEAM QS18 Series: Diffuse
Range: 600 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M12 Integral QD
QS18VP6CV45
WORLD-BEAM QS18 Series: Convergent
Focal Point: 43 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
2 m (6.5 ft) Cable
QS18WEQ2
WORLD-BEAM QS18 Universal Voltage Emitter
Range: 20 m
Output: Not Applicable
150 mm (6 in) Micro Pigtail QD
QS186LE14Q5
WORLD-BEAM QS18 Series: Laser Class 1; Cross
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
150 mm (6 in) M12 Pigtail QD
QS18VP6LQ
WORLD-BEAM QS18 Series: Retro 940 nm
Range: 6.5 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) 4-pin M8 PVC Pigtail QD
QS18AB6LVQ5
WORLD-BEAM QS18 Series: Retro
Range: 6.5 m; Input: 10-30 V dc
Output: Bipolar Light-Operate
150 mm (6 in) M12 Pigtail QD
QS18VP6LAF250QPMA
WORLD-BEAM QS18 LASER ADJUSTABLE FIELD; CLASS 2
Rng: 20 mm-Cutoff pt (adj btwn 50-250 mm)
Output: PNP
150 mm M12 Pigtail QD
QS18VN6LV W/30
WORLD-BEAM QS18 Series: Non-Polarized Retro
Range: 6.5 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
9 m (30 ft) Cable
QS18EK6CV15Q7
WORLD-BEAM QS18 Expert Series: Convergent
Focal Point: 16 mm; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
M8 Integral QD
QS186LEQ5
WORLD-BEAM QS18 Series: Laser Class 1
Range: 30 m; Input: 10-30 V dc
Output: Not Applicable
150 mm (6 in) M12 Pigtail QD
QS18EK6DQ5
WORLD-BEAM QS18 Expert Series: Diffuse
Range: 800 mm; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
150 mm (6 in) M12 Pigtail QD
QS18VP6LP
WORLD-BEAM: Polarized Retro
Range: 3.5 m; Input: 10-30 V dc
Output: Complementary PNP
2 m (6.5 ft) Cable
QS18VN6XLPQ8
QS18 Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: Complementary NPN
M12 Integral QD
QS18VN6AF100
WORLD-BEAM: Adjustable Field
Range: 1-100 mm Adj Cutoff: 20-100 mm; Input: 10-30 V dc
Outputs: Complementary NPN
2 m (6.5 ft) Cable
QS18VN6CV45Q8
WORLD-BEAM QS18 Series: Convergent
Focal Point: 43 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
M12 Integral QD
QS18VP6FF100 W/30
WORLD-BEAM QS18 Series: Fixed-Field
Range: 100 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
9 m (30 ft) Cable
QS18VP6LVQ8
WORLD-BEAM QS18 Series: Retro
Range: 6.5 m; Input: 10-30 V dc
Output: Complementary SOlid State PNP
M12 Integral QD
QS18VN6LPQ8
WORLD-BEAM QS18 Series: Polarized Retro
Range: 3.5 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
Integral 4-pin M12 Integral QD
QS18VN6LAFQPMA
WORLD-BEAM QS18 Laser Adjustable Field; Class 2 La
Rng: 20 mm-Cutoff pt (adj btwn 50-250 mm)
Output: NPN
150 mm M12 Pigtail QD
QS18EK6RVQ8
WORLD-BEAM QS18 Series: Receiver
Range: 20 m; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
M12 Integral QD
QS18AB6AF40
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 15-40 mm; Input: 10-30 V dc
Outputs: Bipolar NPN and PNP Light Operate
2 m (6.5 ft) Cable
QS186LE14Q8
WORLD-BEAM QS18 Series: Laser Class 1; Cross
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
M12 Integral QD
QS18AB6AFF200Q5
WORLD-BEAM: Adjustable Field Foreground Suppression
Cutoff Adjustment Range: 30-200 mm; Input: 10-30 V dc
Outputs: Bipolar NPN and PNP Light Operate
150 mm (6 in) M12 Pigtail QD
QS186LE212Q5
WORLD-BEAM QS18 Series: Laser Class 2; Horizntal
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
150 mm (6 in) M12 Pigtail QD
QS18VP6LPQPMA
WORLD-BEAM QS18 POLARIZED RETRO
Range: 3.5 m; Input: 10-30 V dc
Output: PNP
150 mm (6 in) M12 Pigtail QD
QS18VP6DLQ
WORLD-BEAM QS18 Series: Diffuse
Range: 600 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M8 150 mm (6 in) Pigtail QD
QS18VN6LVQ
WORLD-BEAM QS18 Series: Retro
Range: 6.5 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M8 Pigtail QD
QS18VP6RBQ5
WORLD-BEAM: QS18 Series: Receiver (Flush Front)
Range: 3 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M12 Pigtail QD
QS18EK6RQ
WORLD-BEAM QS18 Series: Receiver
Range: 20 m; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
150 mm (6 in) M8 Pigtail QD
QS18VN6DVSQ8
WORLD-BEAM QS18 Series: Small Spot Diffuse Vis. Red
Range: 250 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
M12 Integral QD
QS18VP6FF100Q
WORLD-BEAM QS18 Series: Fixed-Field
Range: 100 mm cutoff
Output: Complementary Solid-State PNP
150 mm (6 in) M8 Pigtail QD
QS18APWLVC1 W/30
TL50 WORLD-BEAM QS18 Series: Non-Polarized Retro
Range: 6.5 m; Input: 20-140 V ac/dc
Output: Light Operate Solid-State P-MOSFET
9 m (30 ft) Cable
QS18RPWR
WORLD-BEAM QS18 Univ Volt; Opposed; Infrared
Range: 20 m; Input: 20-140 V ac/dc
Output: D.O. P-MOSFET (Sourcing)
2 m Cable
QS18VN6RB
WORLD-BEAM QS18 Series: Receiver (Flush Front)
Range: 3 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
2 m (6.5 ft) Cable
QS18EN6WQ
WORLD-BEAM QS18 Expert Series: Divergent Diffuse
Range: 300 mm; Input: 10-30 V dc
Output: NPN
150 mm (6 in) M8 Pigtail QD
QS18VP6AF120 W/30
WORLD-BEAM: Adjustable Field
Range: 120 mm; Input: 10-30 V dc
Outputs: Complementary PNP
9 m (30 ft) Cable
QS18VP6FF150Q5
WORLD-BEAM Q18 Series: Fixed-Field
Range: 150 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M12 Pigtail QD
QS18APWLVQ2
WORLD-BEAM QS18 Universal Volt; Retro Visible Re
Range: 6.5 m Input: 20-140 V ac/dc
Output: LO; P-MOSFET (Sourcing)
150 mm (6 in) Micro Pigtail QD
QS18VP6DBQ7
WORLD-BEAM QS18 Series: Diffuse
ange: 450 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M8 Integral QD
QS18VP6RQ5
WORLD-BEAM QS18 Series: Receiver
Range: 20 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M12 Pigtail QD
QS18EP6D W/30
WORLD-BEAM QS18 Series: Diffuse
Range: 800 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
9 m (30 ft) Cable
QS18VN6RQ5
WORLD-BEAM QS18 Series: Receiver
Range: 20 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M12 Pigtail QD
QS18RB6LPQ8
WORLD-BEAM QS18 Series: Bipolar Dark-Operate
Range: 3.5 m; Output: 10-30 V dc
Output: Bipolar NPN/PNP
M12 Integral QD
QS18EP6DVQ5
WORLD-BEAM QS18 Series: Diffuse
Range: 600 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) 4-pin M12 Pigtail QD
QS18VP6DVSQ7
WORLD-BEAM QS18 Series: Small Spot Diffuse Vis. Red
Range: 250 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M8 Integral QD
QS18VP6WQ7
WORLD-BEAM QS18 Series: Divergent Diffuse
Range: 100 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M8 Integral QD
QS18VN6FF100Q5
WORLD-BEAM QS18 Series: Fixed-Field
Range: 100 mm cutoff
Output: Complementary Solid-State NPN
150 mm (6 in) M12 Pigtail QD
QS18VN6DBQ
WORLD-BEAM QS18 Series: Diffuse (Flush Front)
Range: 450 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M8 Pigtail QD
QS18VP6AF250Q
WORLD-BEAM: Adjustable Field
Range: 250 mm; Input: 10-30 V dc
Outputs: Complementary PNP
150 mm (6 in) M8 Pigtail QD
QS18VN6DLQ8
WORLD-BEAM QS18 Series: Diffuse
Range: 600 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
M12 Integral QD
QS18EK6XLPCQ7
QS18 Expert Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
M8 Integral QD
QS18VN6AF120Q
WORLD-BEAM: Adjustable Field
Range: 120 mm; Input: 10-30 V dc
Outputs: Complementary NPN
150 mm (6 in) M8 Pigtail QD
QS18VP6XLP
QS18 Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: Complementary PNP
2 m (6.5 ft) Cable
QS18EP6D
WORLD-BEAM QS18 Expert Series: Diffuse
Range: 800 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
2 m (6.5 ft) Cable
QS186EB
WORLD-BEAM QS18 Series: Emitter (Flush Front)
Range: 3 m; Input: 10-30 V dc
Output: Not Applicable
2 m (6.5 ft) Cable
QS18VP6DVSQ8
WORLD-BEAM QS18 Series: Small Spot Diffuse Vis. Red
Range: 250 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M12 Integral QD
QS18EP6W
WORLD-BEAM QS18 Expert Series: Divergent Diffuse
Range: 300 mm; Input: 10-30 V dc
Output: PNP
2 m (6.5 ft) Cable
QS18VN6AF40Q5
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 15-40 mm; Input: 10-30 V dc
Outputs: Complementary NPN
150 mm (6 in) M12 Pigtail QD
QS18VP6LV
WORLD-BEAM QS18 Series: Retro
Range: 6.5 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
2 m (6.5 ft) Cable
QS18VN6FF150
WORLD-BEAM Q18 Series: Fixed-Field
Range: 150 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
2 m (6.5 ft) Cable
QS186LE2Q
WORLD-BEAM QS18 Series: Laser Class 2; Small Spot
Range: 30 m; Input: 10-30 V dc
Output: Not Applicable
150 mm (6 in) M8 Pigtail QD
QS186EBQ
WORLD-BEAM QS18 Series: Emitter (Flush Front)
Range: 3 m; Input: 10-30 V dc
Output: Not Applicable
150 mm (6 in) M8 Pigtail QD
QS18EP6LPQ7
WORLD-BEAM QS18 Expert Series: Polar Retro
Range: 3.5 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M8 Integral QD
QS186LE210
WORLD-BEAM QS18 Series: Laser Class 2; Circle
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
2 m (6.5 ft) Cable
QS186EQ5
WORLD-BEAM QS18 Series: Emitter
Range: 20 m; Input: 10-30 V dc
Output: Not Applicable
150 mm (6 in) M12 Pigtail QD
QS18VN6DQ
WORLD-BEAM QS18 Series: Diffuse
Range: 450 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M8 Pigtail QD
QS18VN6LLP
WORLD-BEAM QS18 LASER POLAR RETRO
Range: 0.1-10 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
2 m Cable
QS18EN6XLPCQ
QS18 Expert Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: NPN
M8 150 mm (6 in) Pigtail QD
QS18AB6AF300 W/30
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 30 to 300 mm; Input: 10-30 V dc
Outputs: Bipolar NPN and PNP Light Operate
9 m (30 ft) Cable
QS18VN6D W/30
WORLD-BEAM QS18 Series: Diffuse
Range: 450 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
9 m (30 ft) Cable
QS18EP6WQ8
WORLD-BEAM QS18 Expert Series: Divergent Diffuse
Range: 300 mm; Input: 10-30 V dc
Output: PNP
M12 Integral QD
QS18EK6RVQ5
WORLD-BEAM QS18 Series: Receiver
Range: 20 m; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
150 mm (6 in) M12 Pigtail QD
QS18EK6RVQ
WORLD-BEAM QS18 Series: Receiver
Range: 20 m; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
150 mm (6 in) M8 Pigtail QD
QS18K6AF120Q5
WORLD-BEAM: Adjustable Field
Range: 120 mm; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
150 mm (6 in) M12 Pigtail QD
QS18K6AF250Q8
WORLD-BEAM: Adjustable Field
Range: 250 mm; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
M12 Integral QD
QS18EK6RV
WORLD-BEAM QS18 Series: Receiver
Range: 20 m; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
2 m (6 ft) Cable
QS18VP6FF125
WORLD-BEAM Q18 Series: Fixed-Field
Range: 125 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
2 m (6.5 ft) Cable
QS18VN6LAF W30
WORLD-BEAM QS18 Series: Adjustable Field
Range: 150 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
9 m (30 ft) Cable
QS18VP6FF50Q9
WORLD-BEAM QS18 Series: Fixed-Field
Range: 50 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
M8 Integral QD
QS18EN6D
WORLD-BEAM QS18 Expert Series: Diffuse
Range: 800 mm; Input: 10-30 V dc
Output: NPN
2 m (6.5 ft) Cable
QS18VP6XLPQ8
QS18 Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: Complementary PNP
M12 Integral QD
QS18VP6LLPQ7
WORLD-BEAM QS18 Laser Polar Retro
Range: 0.1-10 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
4-pin M8 Integral QD
QS18VP6AF300 W/30
WORLD-BEAM: Adjustable Field Background Suppression
Cutoff Adjustment Range: 30 to 300 mm; Input: 10-30 V dc
Outputs: Complementary PNP
9 m (30 ft) Cable
QS186LE12
WORLD-BEAM QS18 Series: Laser Class 1; Horizontal Line
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
2 m (6.5 ft) Cable
QS18EK6CV15Q5
WORLD-BEAM QS18 Expert Series: Convergent
Focal Point: 16 mm; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
150 mm (6 in) M12 Pigtail QD
QS18VP6DVS
WORLD-BEAM QS18 Series: Small Spot Diffuse Vis. Red
Range: 250 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
2 m (6.5 ft) Cable
QS18VP6DBQ5
WORLD-BEAM QS18 Series: Diffuse
Range: 450 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M12 Pigtail QD
QS18RPWRQ2
WORLD-BEAM QS18 Univ Volt; Opposed; Infrared
Range: 20 m; Input: 20-140 V ac/dc
Output: D.O. P-MOSFET (Sourcing)
150 mm (6 in) Micro Pigtail QD
QS18VP6FF50QPMA
WORLD-BEAM QS18 FIXED-FIELD
Range: 0-50 mm Cutoff; Input: 10-30 V dc
Output: PNP
150 mm (6 in) M12 Pigtail QD
QS18VN6LLPQ5
WORLD-BEAM QS18 LASER POLAR RETRO
Range: 0.1-10 m; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm M12 Pigtail QD
QS186LE12Q5
WORLD-BEAM QS18 Series: Laser Class 1; Horizonal L
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
150 mm (6 in) M12 Pigtail QD
QS18VN6LAF250Q5
WORLD-BEAM QS18 Laser Adjustable Field; Class 2 La
Rng: 20 mm-Cutoff pt (adj btwn 50-250 mm)
Output: NPN
150 mm (6 in) M12 Pigtail QD
QS186LE10Q8
WORLD-BEAM QS18 Series: Laser Class 1; Circle
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
4-pin M12 Integral QD
QS18VP6D W/30
WORLD-BEAM QS18 Series: Diffuse
Range: 450 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
9 m (30 ft) Cable
QS186LE2
WORLD-BEAM QS18 Series: Laser Class 2; Small Spot
Range: 30 m; Input: 10-30 V dc
Output: Not Applicable
2 m (6.5 ft) Cable
QS18VN6LAF250Q
WORLD-BEAM QS18 Laser Adjustable Field; Class 2 La
Rng: 20 mm-Cutoff pt (adj btwn 50-250 mm)
Output: NPN
150 mm (6 in) M8 Pigtail QD
QS18VP6LLPQ
WORLD-BEAM QS18 LASER POLAR RETRO
Range: 0.1-10 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm M8 Pigtail QD
QS18WE W/30
WORLD-BEAM QS18 Series: Emitter
Range: 20 m; Input: 20-270 V ac/dc
Output: N/A
9 m (30 ft) Cable
QS18VN6XLPQ5
QS18 Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: Complementary NPN
150 mm (6 in) PVC Cable model with a 4-pin M12/M12 QD
QS18VN6FF100
WORLD-BEAM QS18 Series: Fixed-Field
Range: 100 mm cutoff
Output: Complementary Solid-State NPN
2 m (6.5 ft) Cable
QS18VP6FF100Q1
WORLD-BEAM QS18 Series: Fixed-Field
Range: 100 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M8 Pigtail QD
QS18VP6FF50Q5
WORLD-BEAM QS18 Series: Fixed-Field
Range: 50 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M12 Pigtail QD
QS18EK6RVQ7
WORLD-BEAM QS18 Series: Receiver
Range: 20 m; Input: 10-30 V dc
Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN
M8 Integral QD
QS18EP6LPQ5
WORLD-BEAM QS18 Expert Series: Polar Retro
Range: 3.5 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M12 Pigtail QD
QS18VN6DL
WORLD-BEAM QS18 Series: Diffuse
Range: 600 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
2 m (6.5 ft) Cable
QS18EN6DQ5
WORLD-BEAM QS18 Expert Series: Diffuse
Range: 800 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M12 Pigtail QD
QS18EN6CV45
WORLD-BEAM QS18 Expert Series: Convergent
Focal Point: 43 mm; Input: 10-30 V dc
Output: NPN
2 m (6.5 ft) Cable
QS18EP6W W/30
WORLD-BEAM QS18 Expert Series: Divergent Diffuse
Range: 300 mm; Input: 10-30 V dc
Output: PNP
9 m (30 ft) Cable
QS18VP6FF100Q9
WORLD-BEAM QS18 Series: Fixed-Field
Range: 100 mm cutoff
Output: Complementary Solid-State PNP
Integral 4-pin M8, thd/snap-fit
QS18VP6CV20 W/30
WORLD-BEAM QS18 Series: Adjustable Convergent
Focal Point: 20 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
9 m (30 ft) Cable
QS18VP6CV20Q
WORLD-BEAM QS18 Series: Adjustable Convergent
Focal Point: 20 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M8 Pigtail QD
QS18VN6CV20Q
WORLD-BEAM QS18 Series: Adjustable Convergent
Focal Point: 20 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
150 mm (6 in) M8 Pigtail QD
QS18VP6CV20Q5
WORLD-BEAM QS18 Series: Adjustable Convergent
Focal Point: 20 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
150 mm (6 in) M12 Pigtail QD
QS18VN6AF250
WORLD-BEAM: Adjustable Field
Range: 250 mm; Input: 10-30 V dc
Outputs: Complementary NPN
2 m (6.5 ft) Cable
QS18VP6DQ-1.5M
WORLD-BEAM QS18 Series: Diffuse
Range: 450 mm; Input: 10-30 V dc
Output: Complementary Solid-State PNP
1.5 m (59.05 in) M8 Pigtail QD
QS18RPWDL
WORLD-BEAM QS18 Univ Volt; Diffuse: Visible Red
Range: 450 mm; Input: 20-140 V ac/dc
Output: D.O. P-MOSFET (Sourcing)
2 m Cable
QS18VN6CV20
WORLD-BEAM QS18 Series: Adjustable Convergent
Focal Point: 20 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
2 m (6.5 ft) Cable
QS18VN6CV20 W/30
WORLD-BEAM QS18 Series: Adjustable Convergent
Focal Point: 20 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
9 m (30 ft) Cable
QS18EP6DVQ7
WORLD-BEAM QS18 Expert Series; Diffuse
Range: 600 mm; Input: 10-30 V dc
Output: PNP
M8 4-pim Integral QD
QS18VN6WQ7
WORLD-BEAM QS18 Series: Divergent Diffuse
Range: 100 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
M8 Integral QD
QS18VP6LV W/10
WORLD-BEAM QS18 Series: Retro
Range: 6.5 m; Input: 10-30 V dc
Output: Complementary Solid-State PNP
3 m (10 ft) Cable
