Banner QS30 Serisi Fotoelektrik Sensör
Banner QS30 Serisi, 30 mm gövde tasarımı ve 200 m’ye varan menzili ile yüksek performanslı uzun menzilli fotoelektrik sensörler sunar. IP67 / IP69K koruma sınıfı ile zorlu ortamlarda güvenle çalışır.
Doğru seçim için destek olabiliriz: +90 533 049 96 24
08:30 – 17.30 | Pazartesi – Cumartesi
08:30 – 17.30 | Pazartesi – Cumartesi
Ürün Özellikleri
Açıklama
Ürün Özellikleri
- Hemen hemen her montaj gereksinimine uyacak şekilde 30 mm’lik gövde tasarımına sahiptir
- 200 m’ye varan menzili ile yüksek performans sunar
- Karşılıklı, yüksek ışık gücüne sahip karşılıklı, polarize ve polarize olmayan reflektörlü, konvergent, lazer, sabit arka fon bastırmalı, ayarlanabilir menzilli ve şeffaf cisim algılaması yapan modelleri mevcuttur
- Cisimden yansımalı ve reflektörlü modellerde Class 1 görünür lazer, cisimden yansımalı modellerde Class 2 lazer sunar
- Standart 10 – 30 V DC besleme gerilimi ve bipolar NPN/PNP çıkışlara sahip modeller veya 24 – 250V AC / 12 – 250V AC besleme gerilimi ve e/m röle çıkışına sahip modeller mevcuttur
- Modele bağlı olarak light/dark-operate modu seçilebilir veya konfigüre edilebilir
- IP67 veya IP69K koruma sınıfına sahip modelleri bulunur
- 360° görülebilir parlak LED durum indikatörlerine sahiptir
Alt Modeller

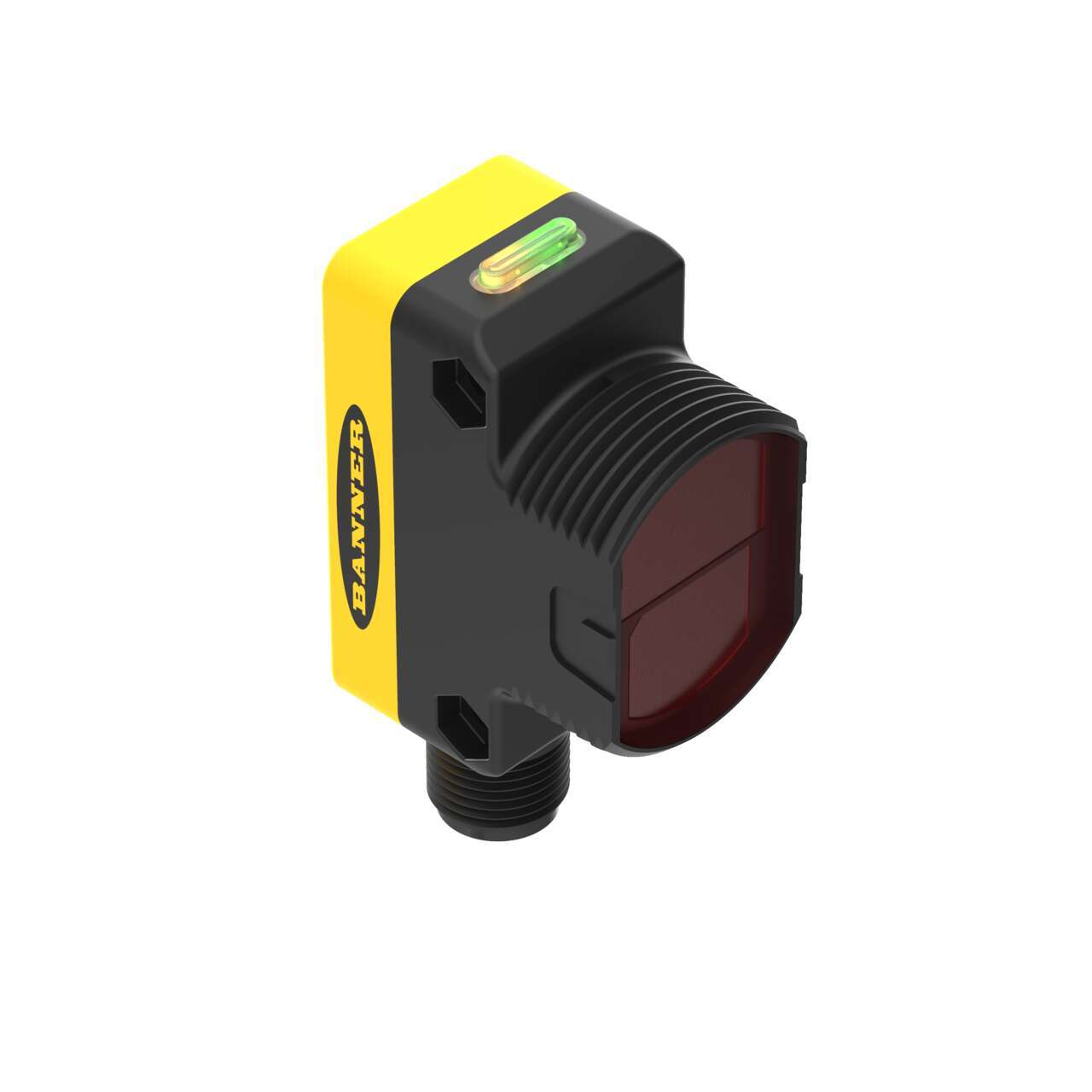

QS30LPQ
Series: Polarized Retro Range: 8 m;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 5-pin M12 Integral QD

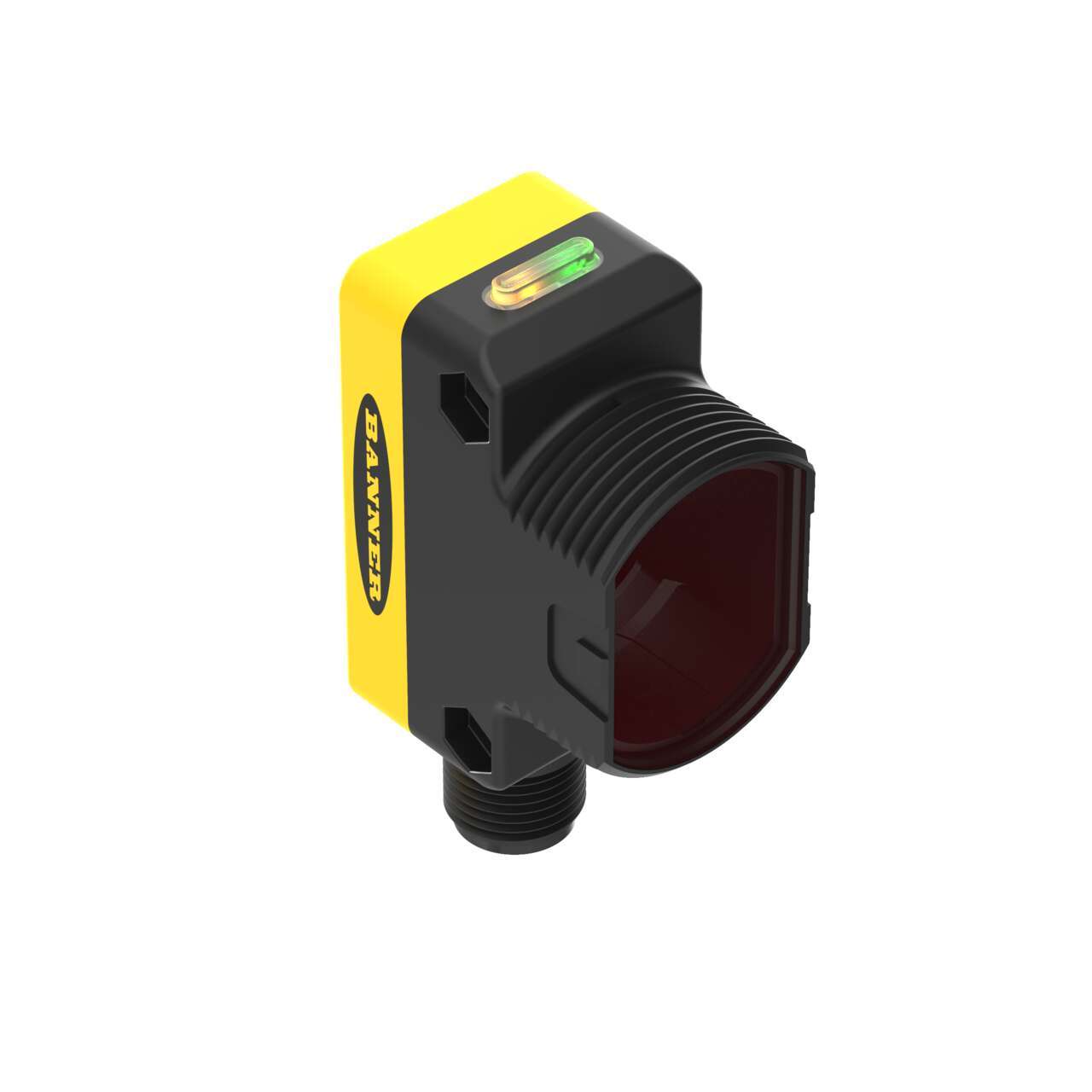

QS30FF400Q
Series: Fixed-Field Range: 400 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 5-pin M12 Integral QD

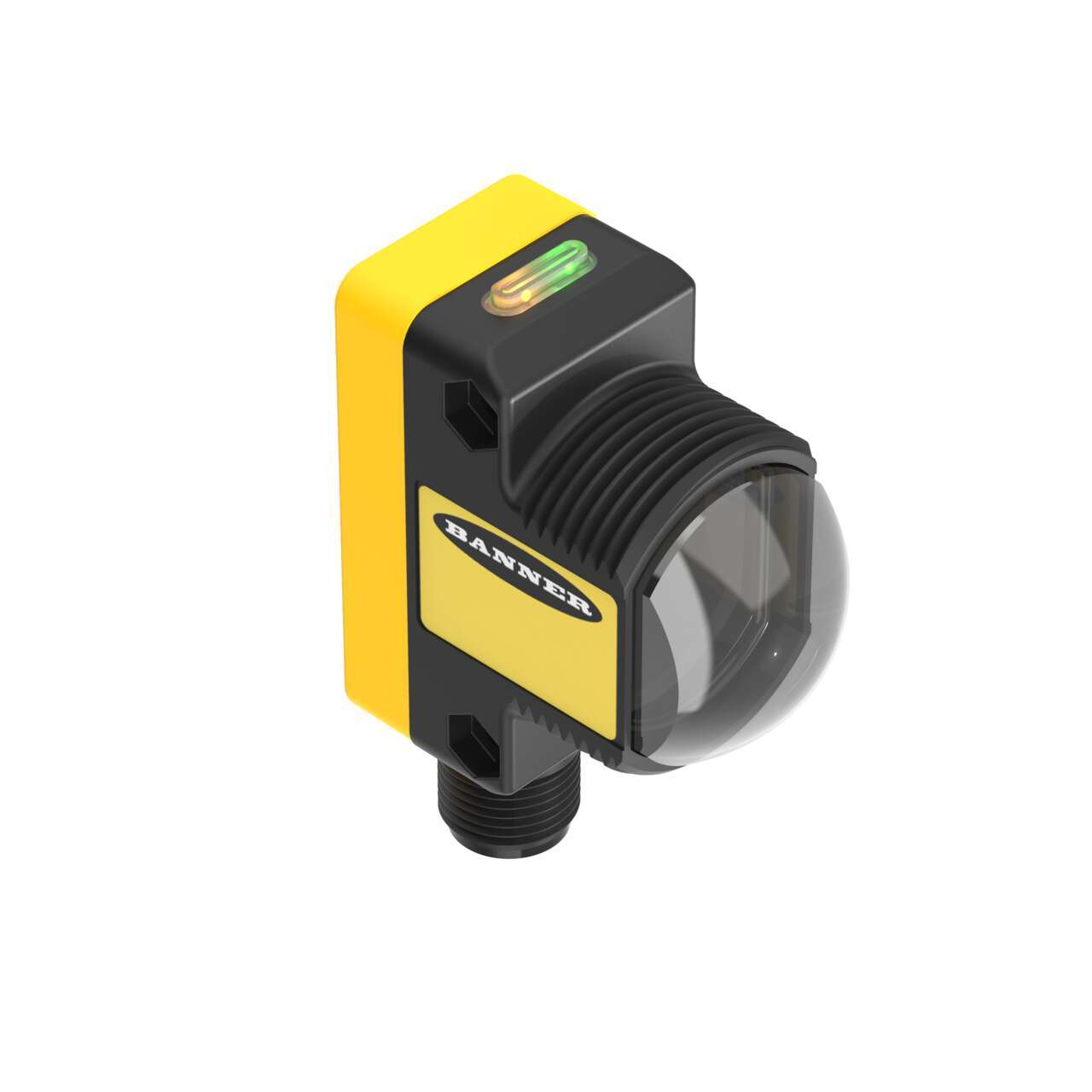

QS30EXQ
Series: High-Powered Emitter Range: 213 m;
Input: 10-30 V dc Output: Not Applicable 5-pin M12 QD (CAR WASH)
QS30ARXQ
Series: High-Powered Receiver Range: 213 m;
Input: 10-30 V dc Output: LO (Light Operate) Bipolar: 1 NPN;
1 PNP 5-pin M12 Integral QD (CAR WASH)
QS30FF600Q
Series: Fixed-Field Range: 600 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 5-pin M12 Integral QD

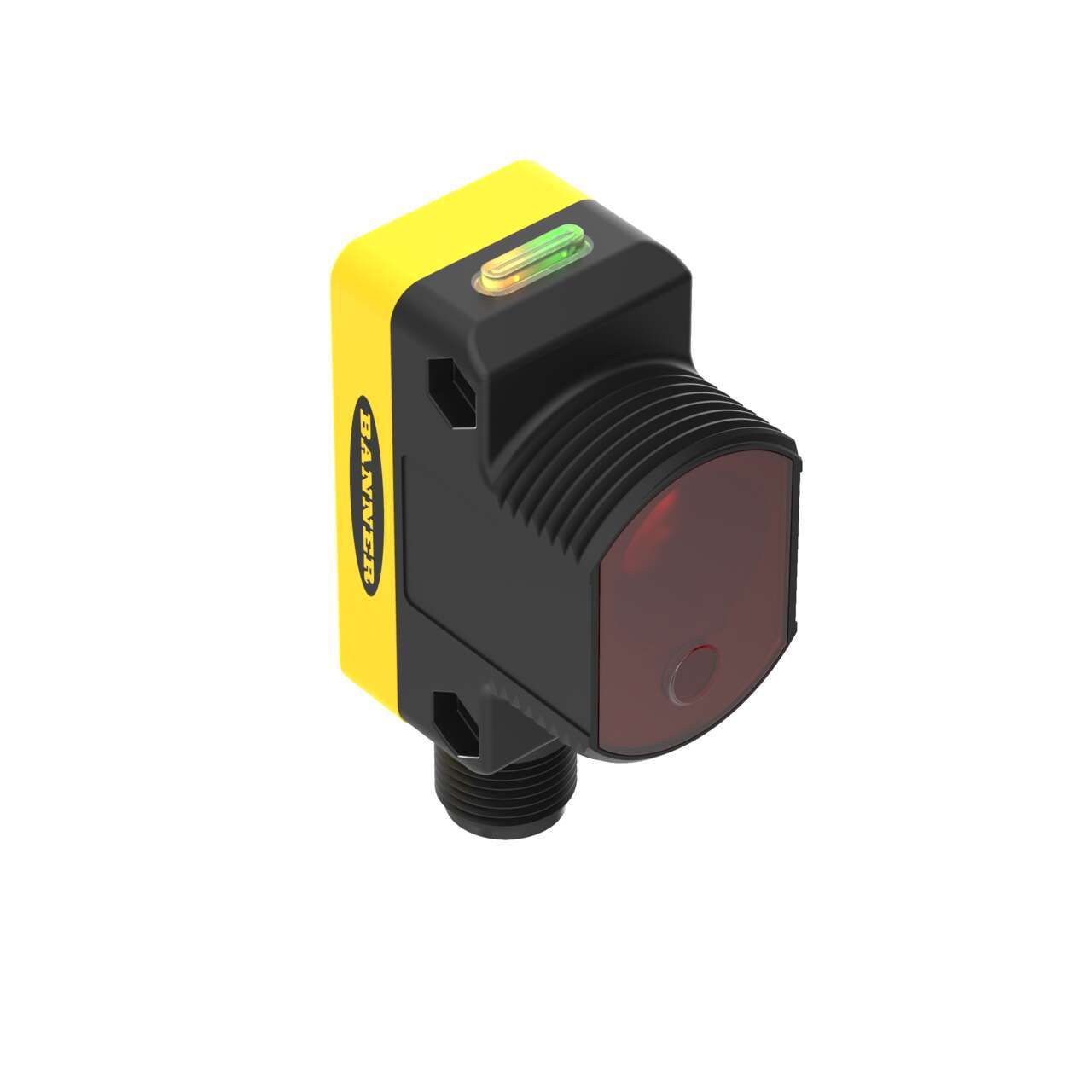

QS30LDLQ
Series: Laser Diffuse (Class 2) Range: 800 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 5-pin M12 Integral QD
QS30FF200Q
Series: Fixed-Field Range: 200 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 5-pin M12 Integral QD
QS30RRXQ
Series: High-Powered Receiver Range: 213 M;
Input: 10-30 V dc Output: DO (Dark Operate) Bipolar: 1 NPN;
1 PNP 5-pin M12 Integral QD (CAR WASH)
QS30LDQ
Series: Laser Diffuse (Class 1) Range: 400 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 5-pin M12 Integral QD
QS30LLPQ
WORLD-BEAM QS30: Long Range Laser Polarized Retro Range: 0.2-18 m;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 5-pin M12 Integral QD

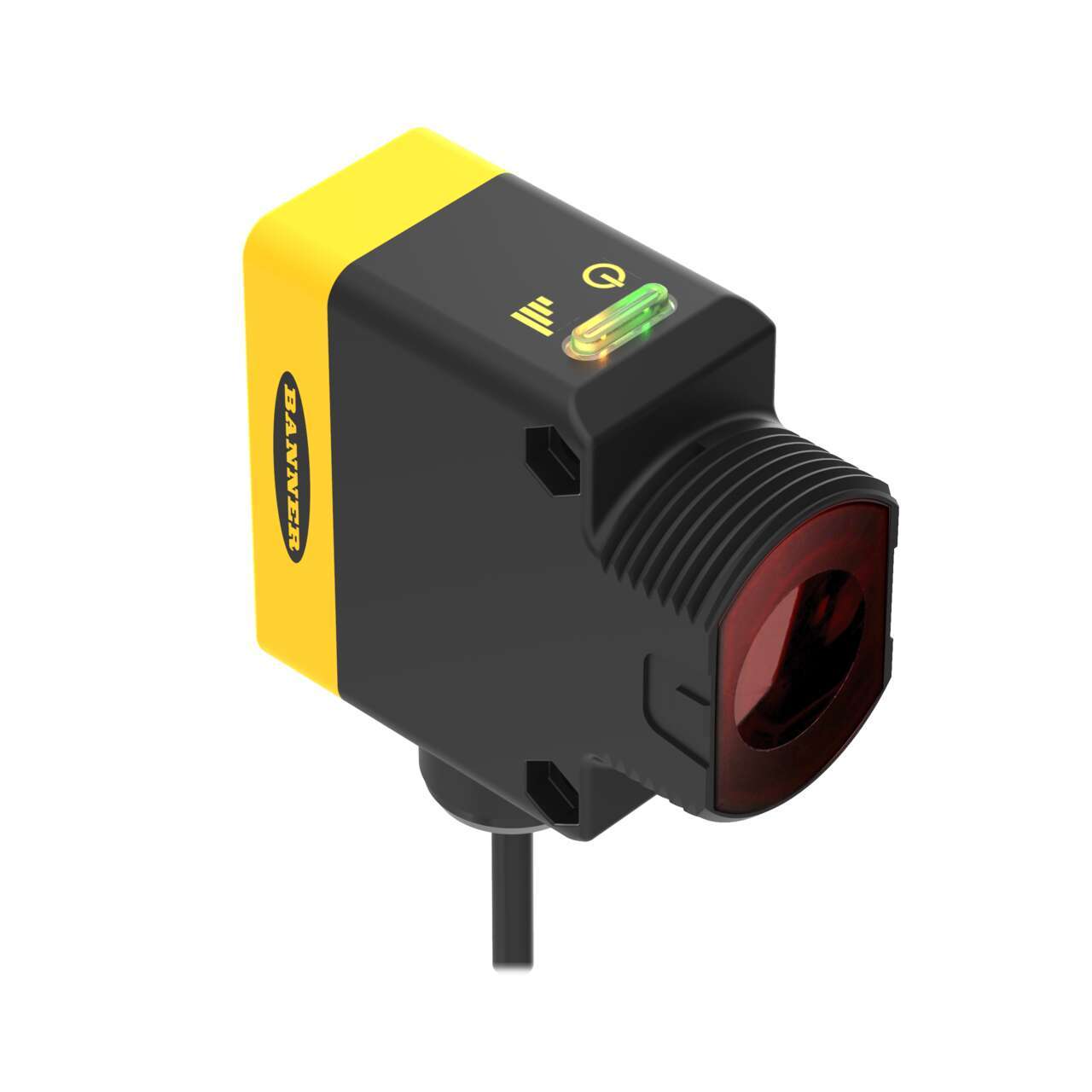

QS30RRH2OQ5
Series: H2O Receiver Range: 2 m;
Input: 10-30 V dc Output: DO;
Bipolar: 1 NPN;
1 PNP 150 mm (6 in) 5-pin M12 Pigtail QD

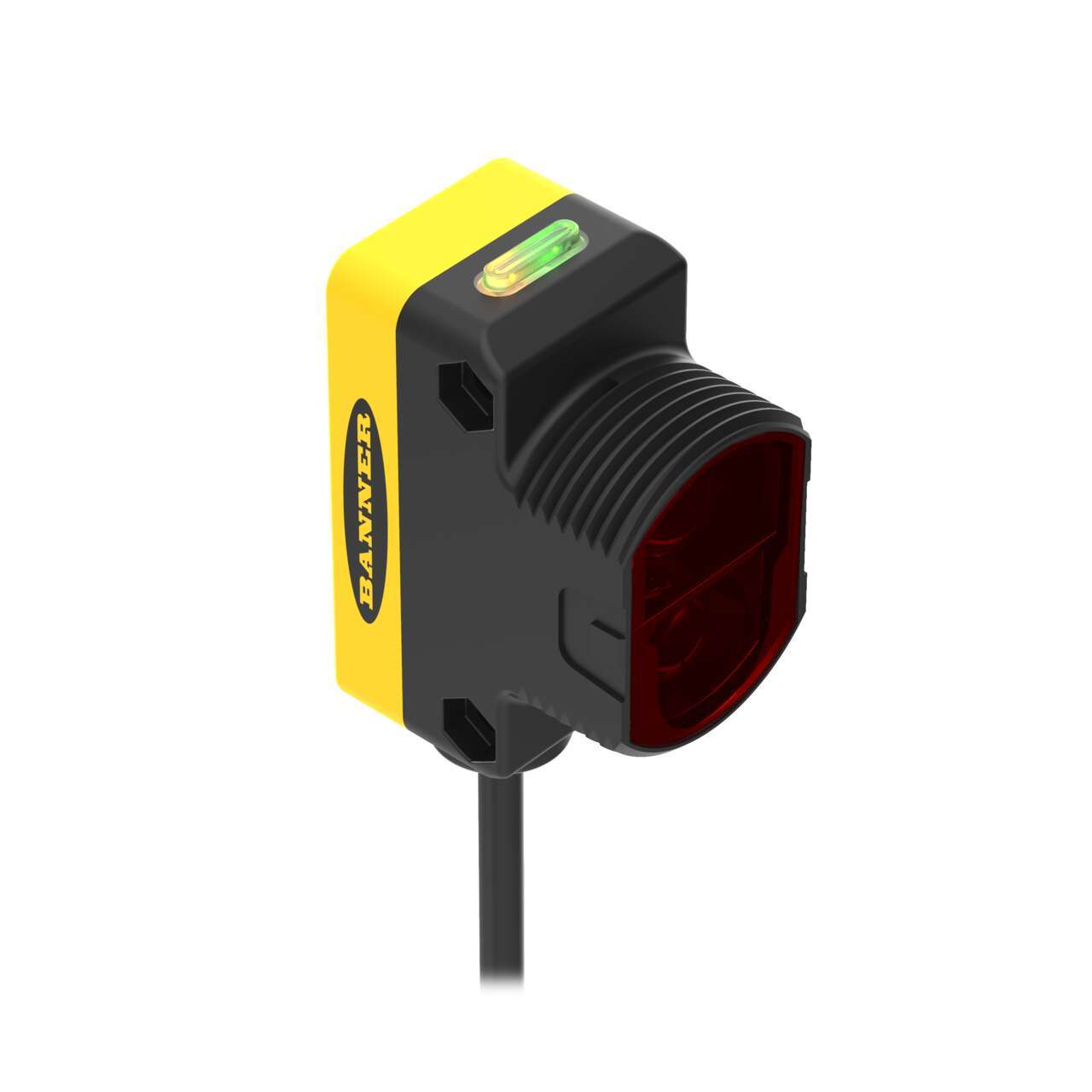

QS30D
Series: Diffuse Range: 1.0 m;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 2 m (6.5 ft) Cable
QS30VR3FF200
Series: Universal Voltage Range: 200 mm;
Input: 12-250 V dc or 24-250 V ac Output: SPDT e/m Relay 2 m (6.5 ft) Cable

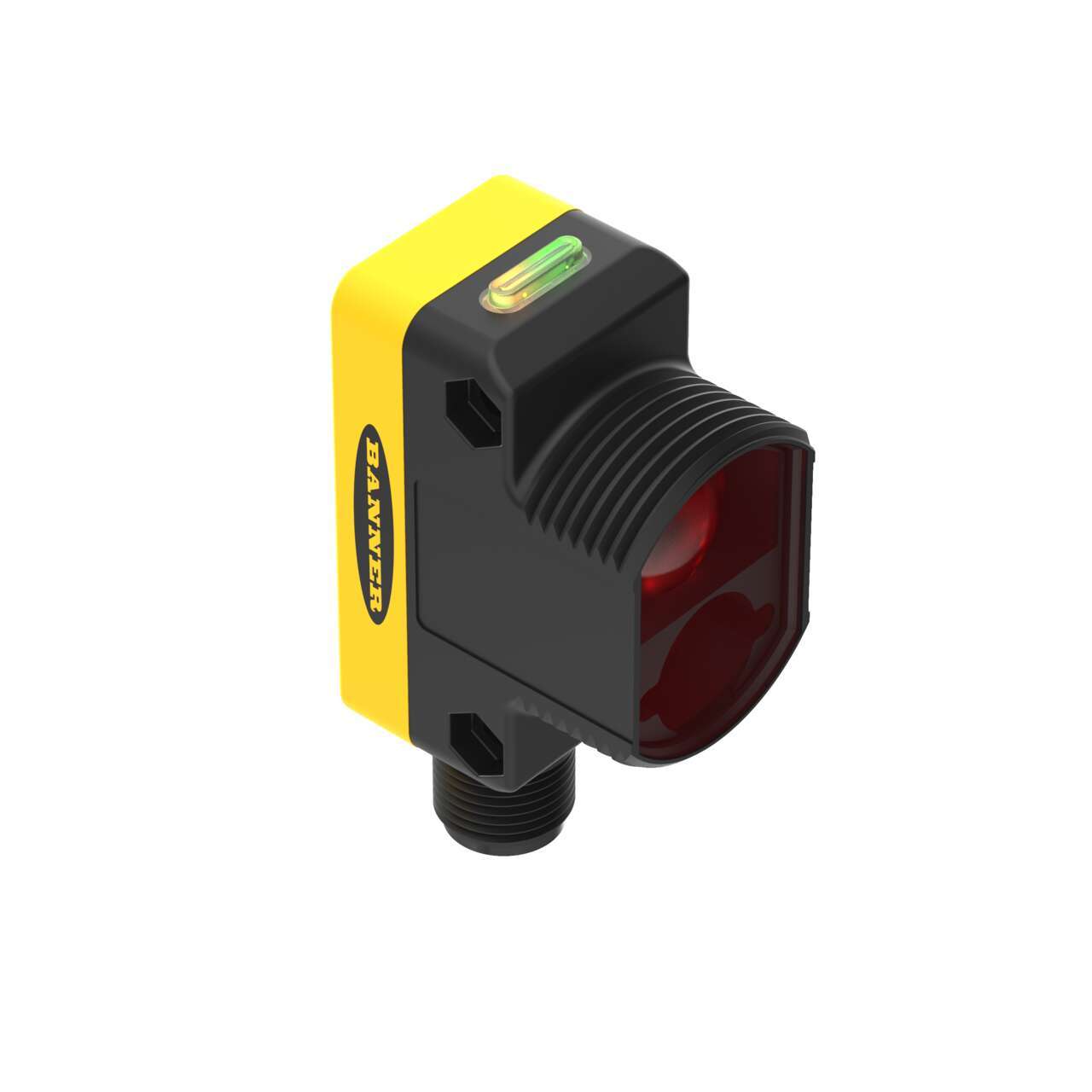

QS30AFQ
Series: Adjustable-Field Range: 50 to 300 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 5-pin M12 Integral QD
QS30RXH2OUQ5
QS30RXH2OUQ5 Serisi Fotoelektrik Sensör — Banner’ın dünya standartlarında algılama teknolojisi ile üretilmiştir.

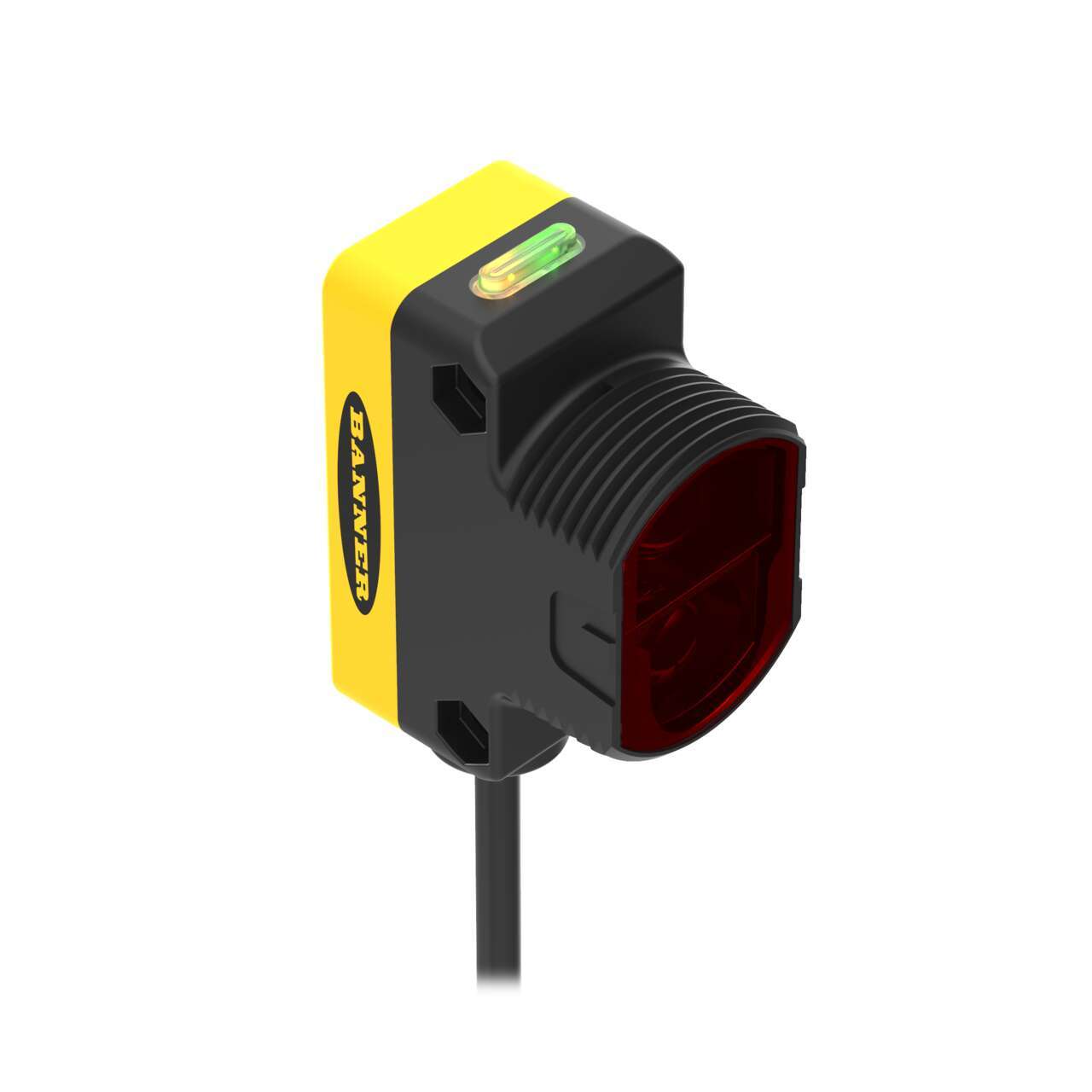

QS30FF200QPMA
WORLD-BEAM QS30: Fixed-Field Range: 200 m;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 150 mm (6 in) M12 PUR Pigtail QD
QS30EXH2O
Series: H2O HP Emitter Range: 4 m;
Input: 10-30 V dc Output: Not Applicable 2 m (6.5 ft) Cable
QS30RRXH2O
Series: H2O HP Receiver Range: 4 m;
Input: 10-30 V dc Output: DO;
Bipolar: 1 NPN;
1 PNP 2 m (6.5 ft) Cable
QS30E
Series: Emitter Range: 60 m;
Input: 10-30 V dc Output: Not Applicable 2 m (6.5 ft) Cable
QS30RRX W
Series: High-Powered Receiver Range: 213 m;
Input: 10-30 V dc Output: DO (Dark Operate) Bipolar: 1 NPN;
1 PNP 9 m (30 ft) Cable (CAR WASH)
QS30FF200QPMA16
Series: Emitter Range: 60 m;
Input: 10-30 V dc Output: Not Applicable 5-pin M12 Integral QD

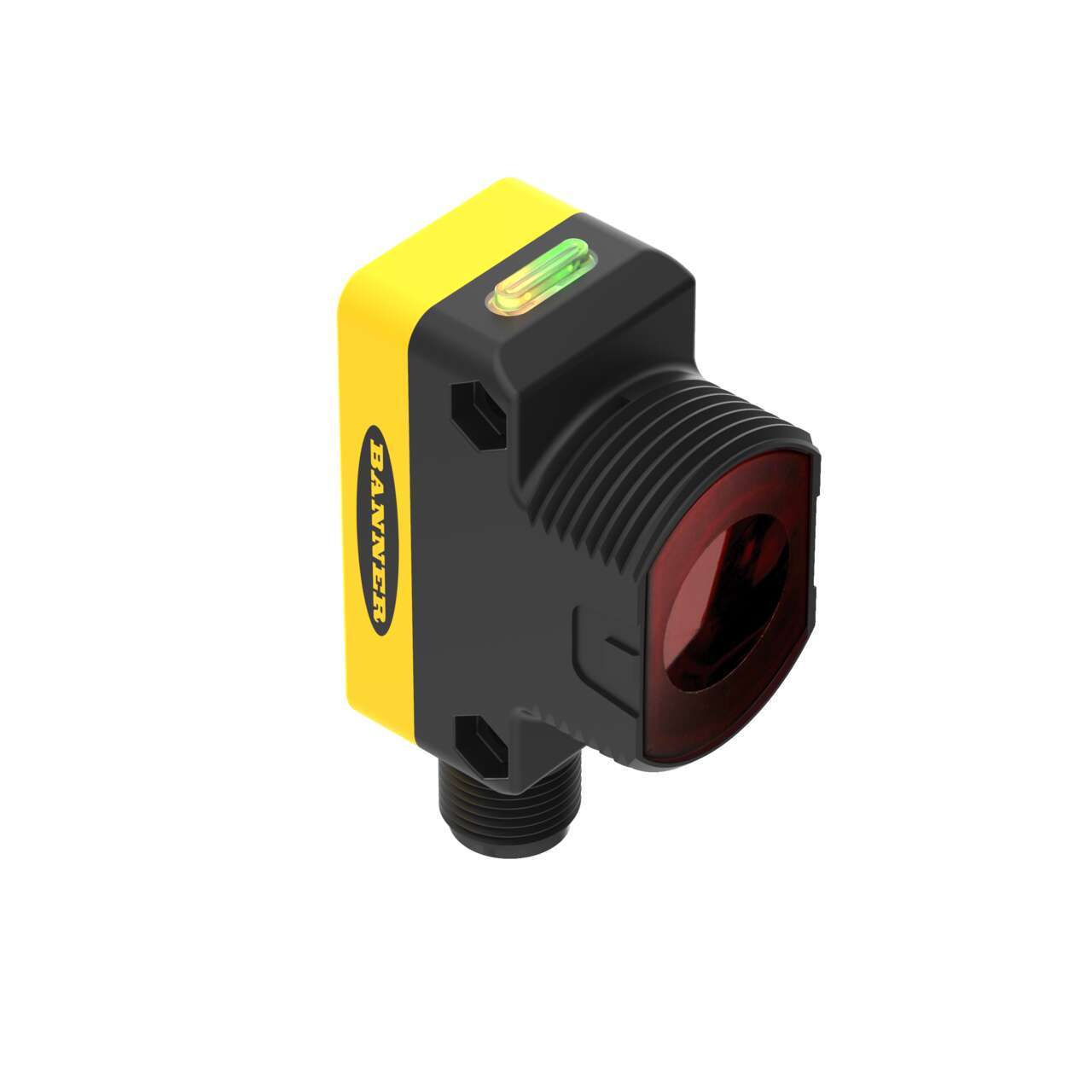

QS30EQ
Series: Emitter Range: 60 m;
Input: 10-30 V dc Output: Not Applicable 5-pin M12 Integral QD
QS30FF400QPMA16
WORLD-BEAM QS30: Fixed-Field Range: 400 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 150 mm (6 in) M12 PUR Pigtail QD;
designed for use SMBQS30YL Bracket
QS30VR3FF400QPMA16
Series: Universal Voltage – FF Range: 400 mm;
Input: 12-250 V dc or 24-250 V ac Output: SPDT e/m Relay-250 V ac 150 mm (6 in) 5-pin Micro-style PUR Pigtail QD;
designed for use SMBQS30YL Bracket
QS30E W
Series: Emitter Range: 60 m;
Input: 10-30 V dc Output: Not Applicable 9 m (30 ft) Cable

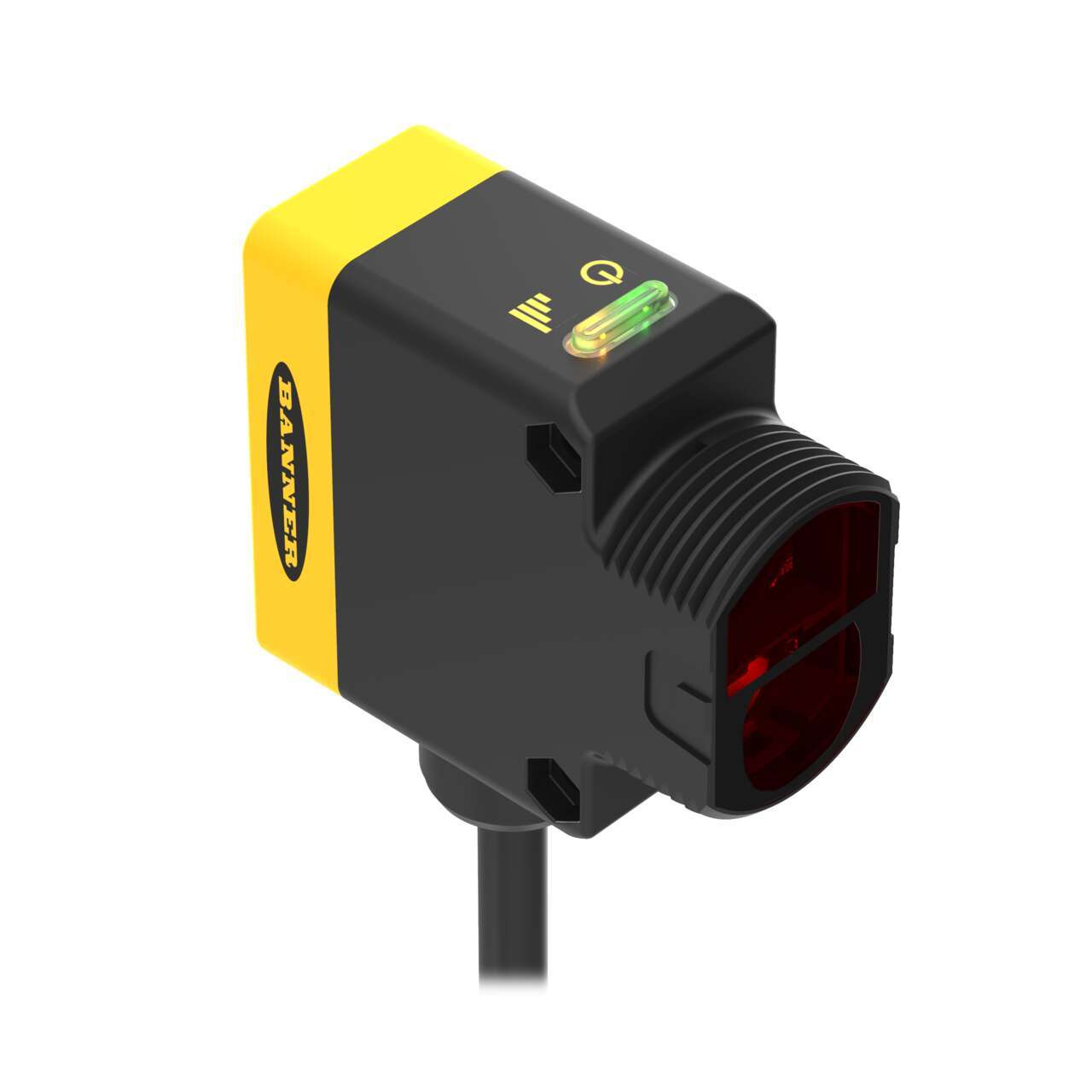

QS30VR3RQPMA21
Series: Universal Voltage – E Range: 60 m;
Input: 12-250 V dc or 24-250 V ac Output: SPDT e/m Relay-250 V ac Common Hot, 150 mm 4-pin M12 Pigtail PUR Jacket, Pin 2 Open, N/O

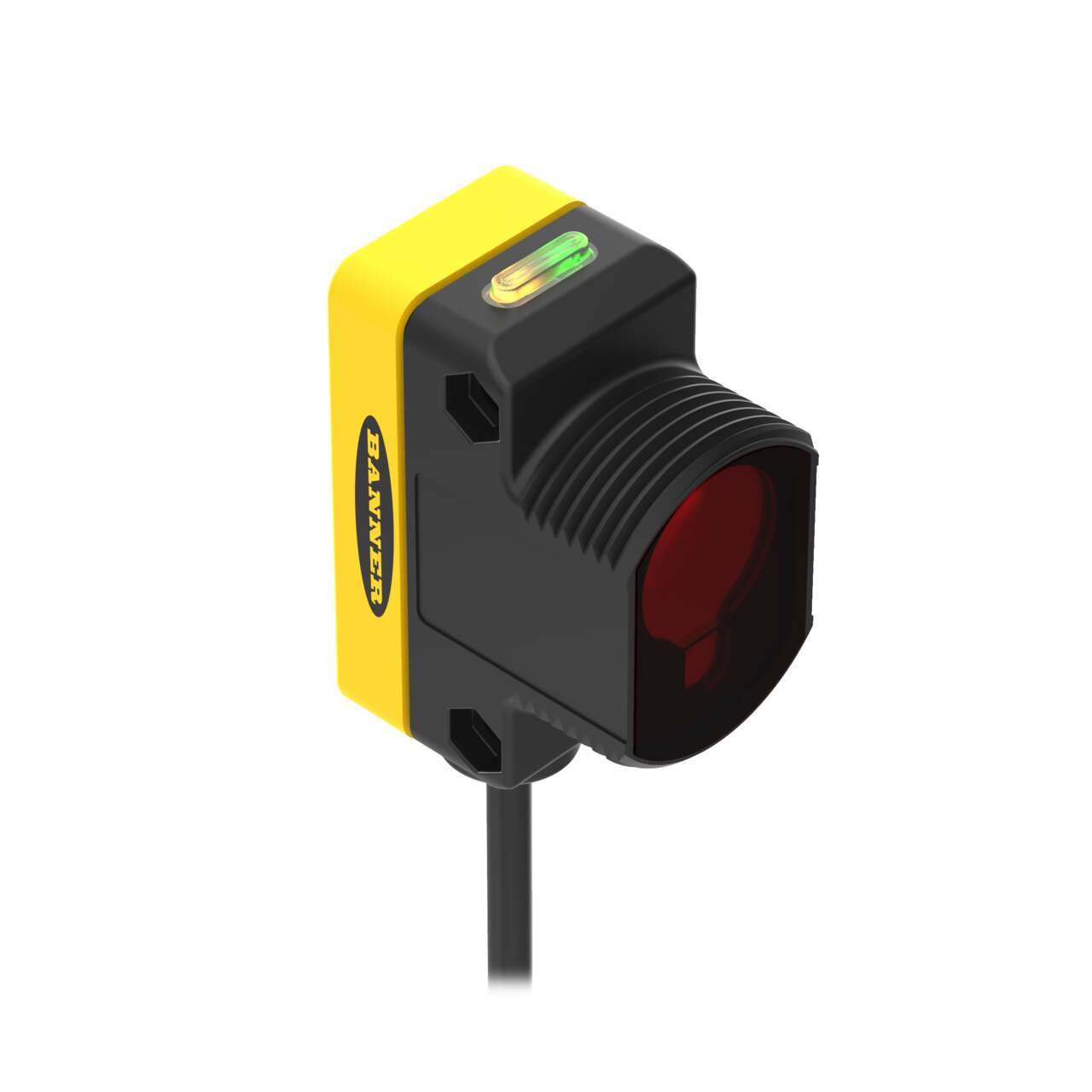

QS30LLPCQPMA
WORLD-BEAM QS30: Low Contrast Laser Polar Retro Range: 0.2-18 m;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 150 mm (6 in) M12 PUR Pigtail QD

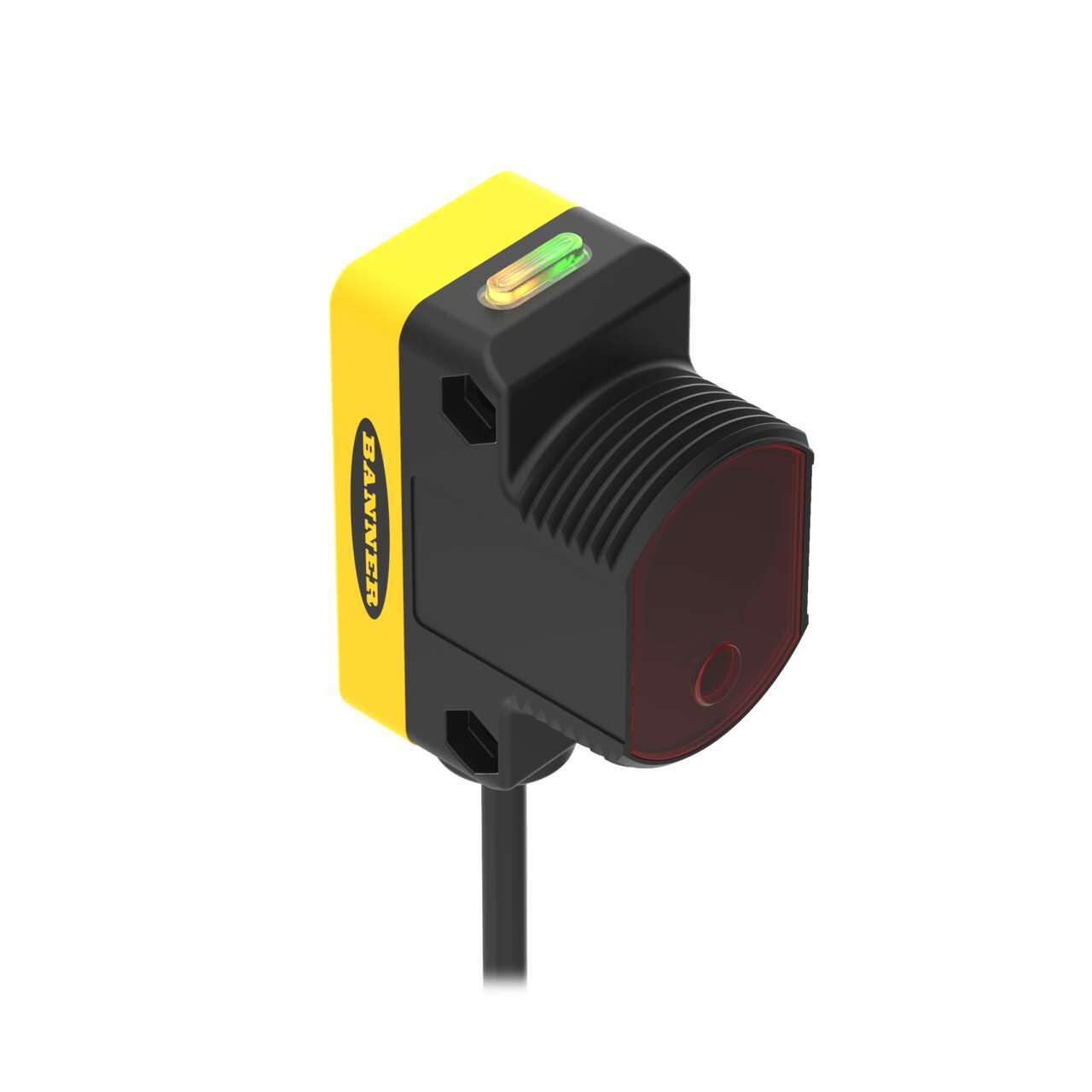

QS30LDL
Series: Laser Diffuse (Class 2) Range: 800 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 2 m (6.5 ft) Cable
QS30FF600
Series: Fixed-Field Range: 600 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 2 m (6.5 ft) Cable
QS30FF200
Series: Fixed-Field Range: 200 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 2 m (6.5 ft) Cable
QS303E W
Series: Universal Voltage Range: 60 m;
Input: 12-250 V dc or 24-250 V ac Output: Not Applicable 9 m (30 ft) Cable
QS30EQPMA
WORLD-BEAM QS30: Emitter Range: 60 m;
Input: 10-30 V dc 150 mm (6 in) M12 PUR Pigtail QD
QS30LDLQPMA
Class 2 Laser Diffuse 5-pin M12 PUR Pigtail QD
QS30VR3LP
Series: Universal Voltage Range: 8 m;
Input: 12-250 V dc or 24-250 V ac Output: SPDT e/m Relay 2 m (6.5 ft) Cable
QS30RRXSH2O
Series: H2O SHP Receiver Range: 8 m;
Input: 10-30 V dc Output: DO;
Bipolar: 1 NPN;
1 PNP 2 m (6.5 ft) Cable
QS30FF600QPMA
QS30FF600QPMA Serisi Fotoelektrik Sensör — Banner’ın dünya standartlarında algılama teknolojisi ile üretilmiştir.

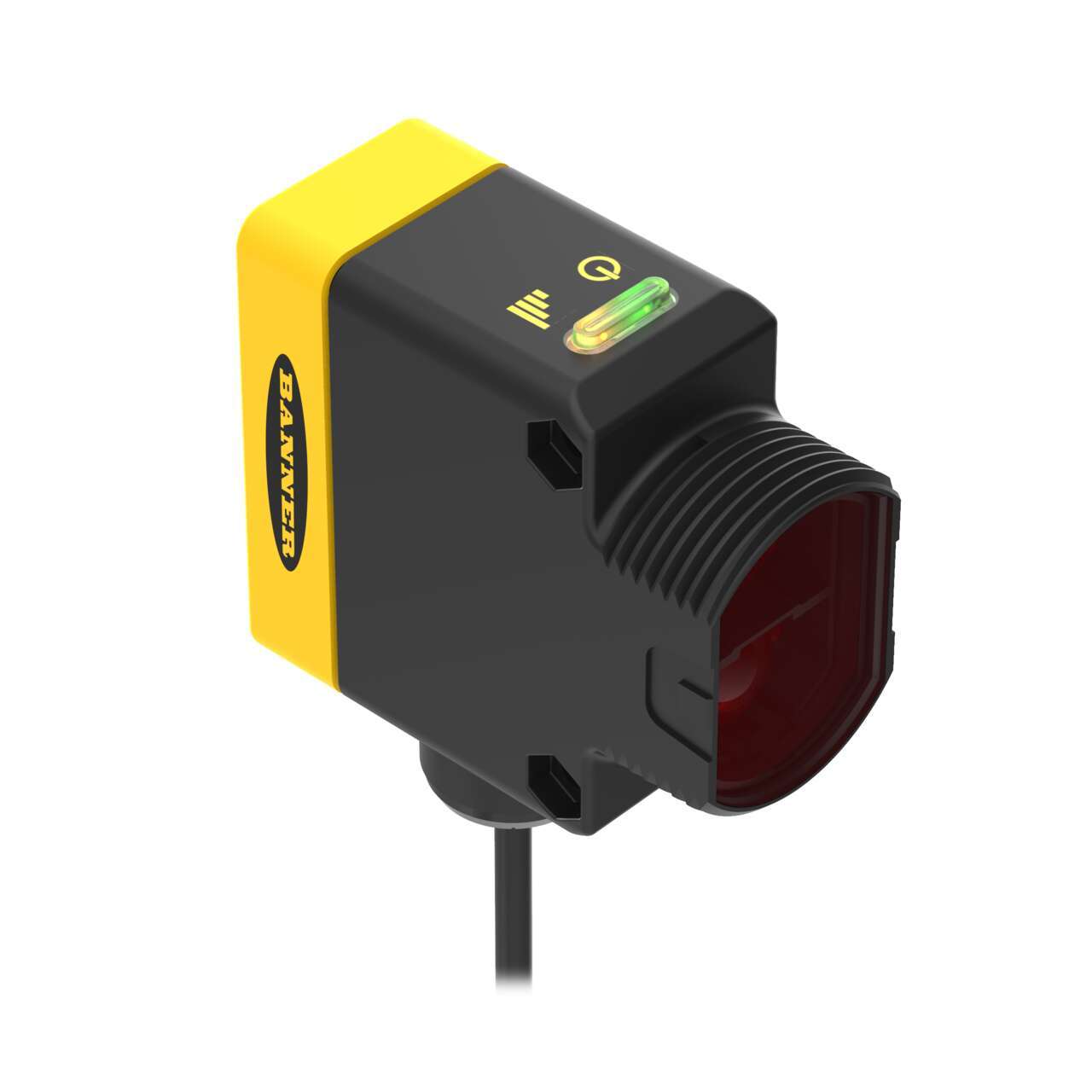

QS30AF600QPMA16
Series: Adjustable-Field Range: 50 – 600 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 150 mm (6 in) M12 PUR Pigtail QD;
designed for use SMBQS30YL Bracket

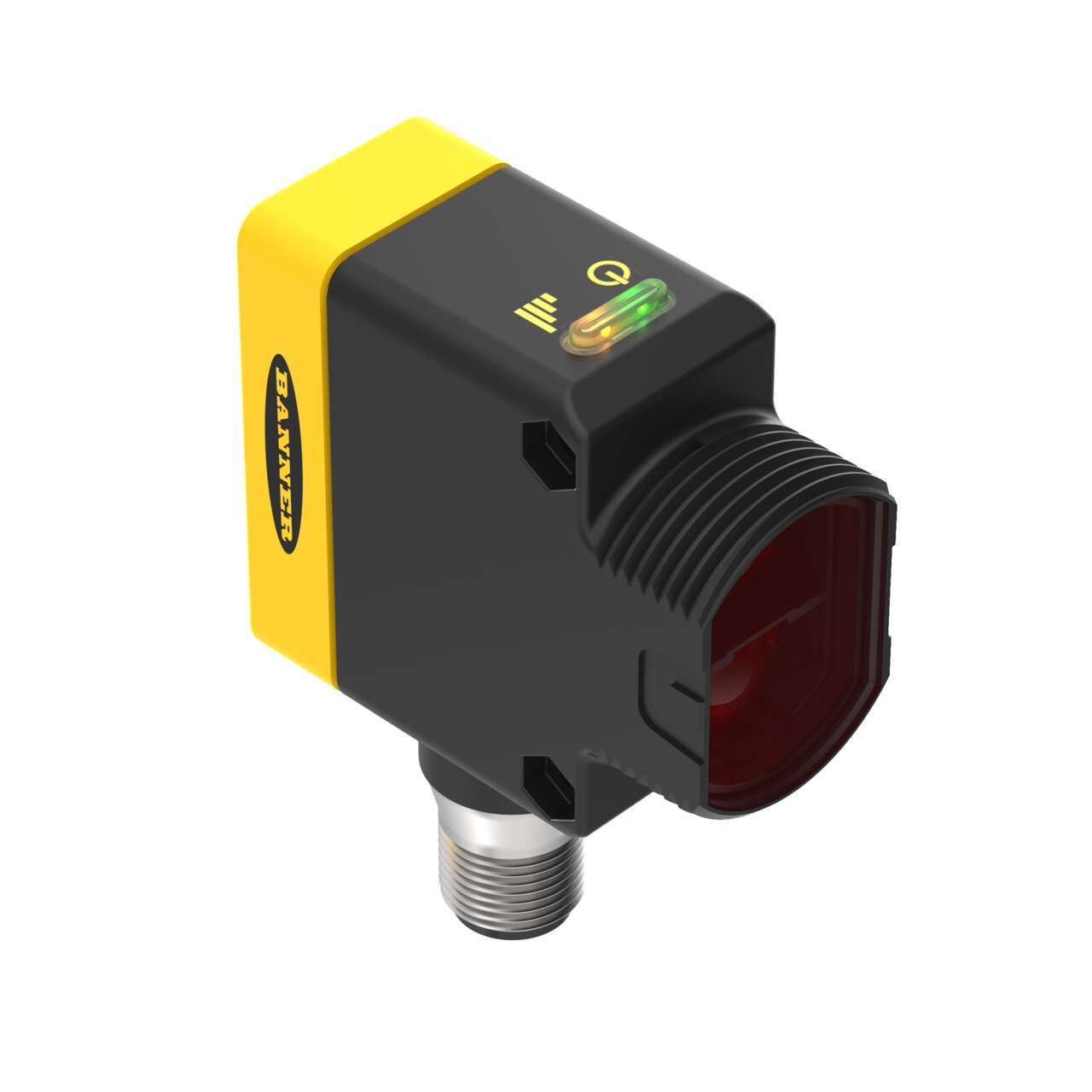

QS30AFF400Q
Series: Adj-Field Foreground Range: 50-400 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 5-pin M12 Integral QD
QS30RRXH2OQ5
Series: H2O HP Receiver Range: 4 m;
Input: 10-30 V dc Output: DO;
Bipolar: 1 NPN;
1 PNP 150 mm (6 in) 5-pin M12 Pigtail QD
QS30VR3FF600
Series: Universal Voltage Range: 600 mm;
Input: 12-250 V dc or 24-250 V ac Output: SPDT e/m Relay 2 m (6.5 ft) Cable
QS30ARXQP
Series: High-Powered Receiver Range: 213 m;
Input: 10-30 V dc Output: LO (Light Operate) Bipolar: 1 NPN;
1 PNP 150 mm (6 in) M12 Pigtail QD (CAR WASH)
QS30ARH2O
Series: H2O Receiver Range: 2 m;
Input: 10-30 V dc Output: LO;
Bipolar: 1 NPN;
1 PNP 2 m (6.5 ft) Cable

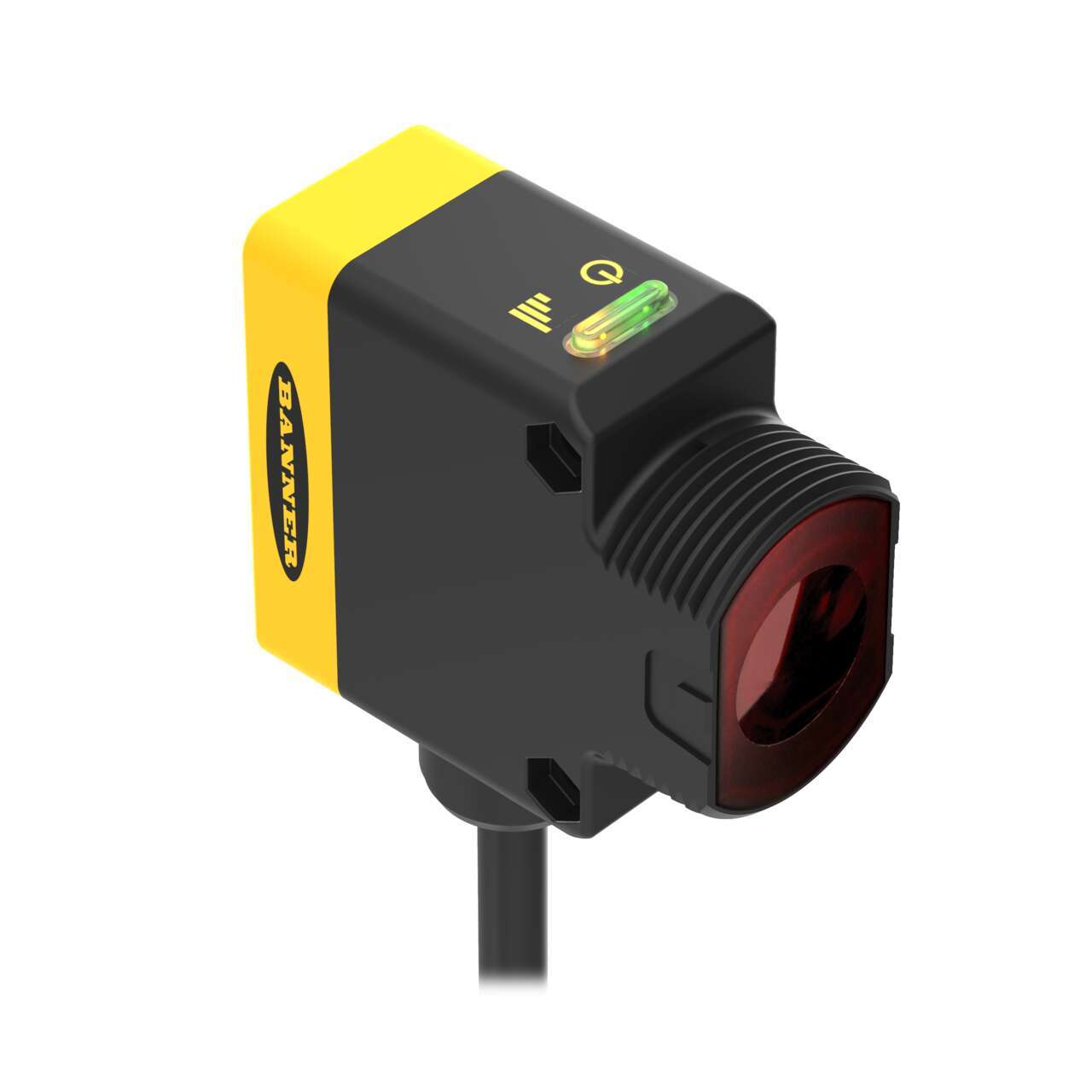

QS303EQPMA
Series: Universal Voltage – E Range: 60 m;
Input: 12-250 V dc or 24-250 V ac Output: No output 150 mm (6 in) 5-pin Micro-style PUR Pigtail QD
QS30LLPC
WORLD-BEAM QS30: Low Contrast Laser Polar Retro Range: 0.2-18 m;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1PNP 2 m (6.5 ft) Cable

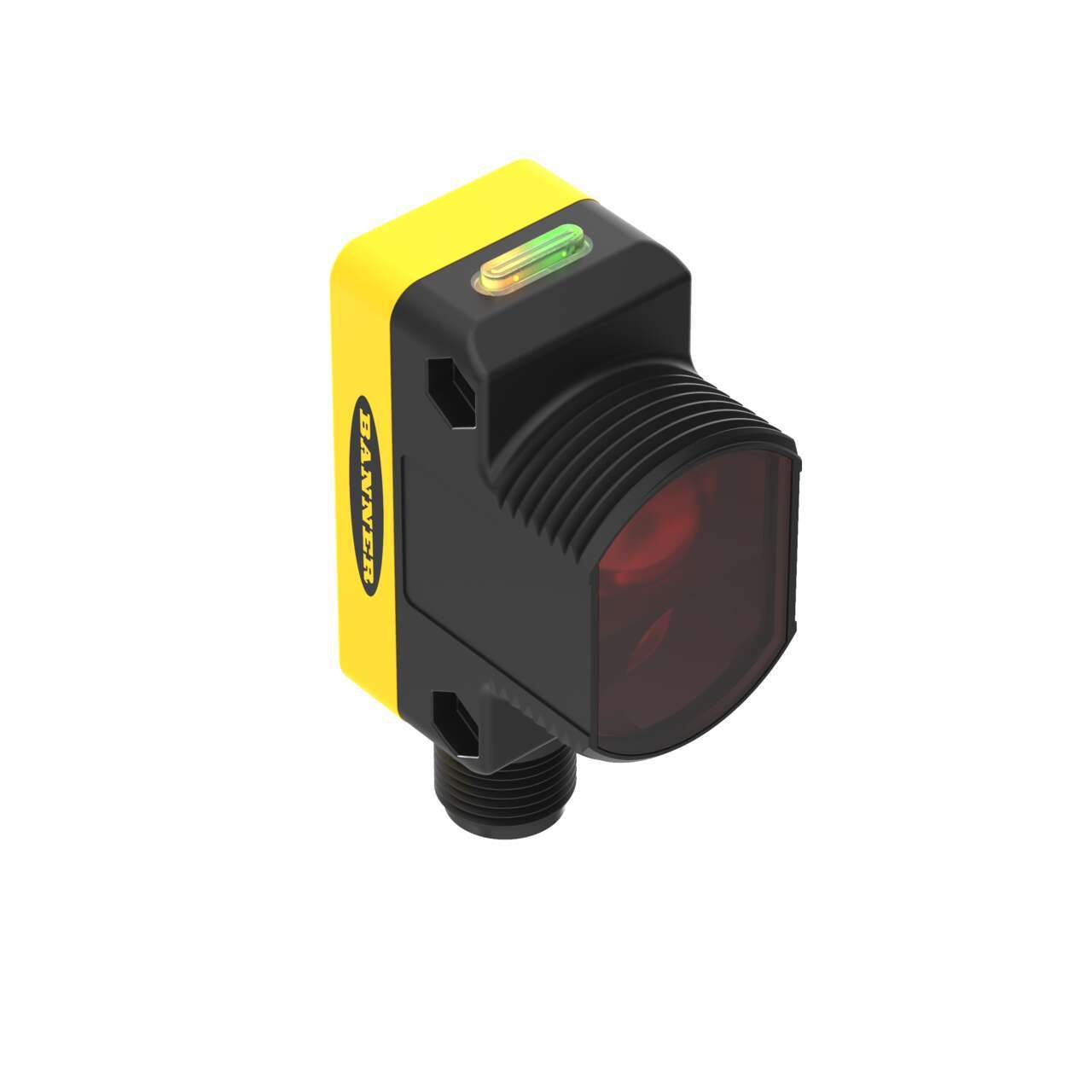

QS30ELVCQ
WORLD-BEAM QS30 Series Clear Object Sensor Range: 100 mm-2 m;
Input: 10-30 V dc Rating: IP67;
Output: Bipolar (NPN & PNP) 5-pin M12 QD
QS30LLPCQ
WORLD-BEAM QS30: Low Contrast Laser Polar Retro Range: 0.2-18 m;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1PNP 5-pin M12 Integral QD
QS30DQPMA
WORLD-BEAM QS30: Diffuse Range: 1.0 m;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 150 mm (6 in) M12 PUR Pigtail QD
QS30VR3R
Series: Universal Voltage Range: 60 m;
Input: 12-250 V dc or 24-250 V ac Output: SPDT e/m Relay 2 m (6.5 ft) Cable

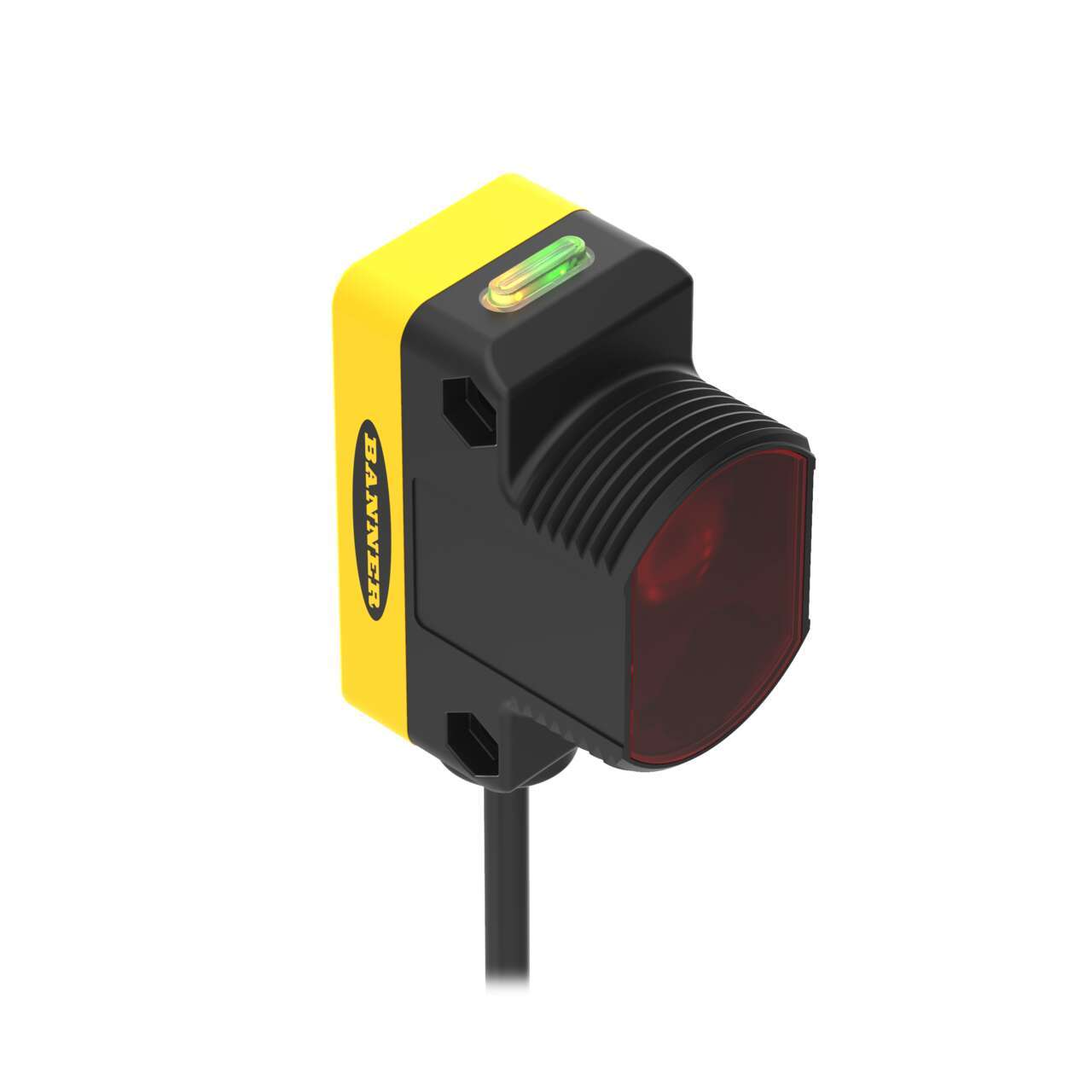

QS30EDVQPMA
WORLD-BEAM QS30 Expert Diffuse-Mode Visible Red Beam Range: High-Speed Mode: 1100 mm;
Normal Mode: 1400 mm Input: 10-30 V dc;
Output: Bipolar NPN/PNP 6 in Pigtail 5-pin M12 QD
QS30LLP W
/30 WORLD-BEAM QS30: Long Range Laser Polarized Retro Range: 0.2-18 m;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 9 m (30 ft) Cable
QS30ARX W
Series: High-Powered Receiver Range: 213 m;
Input: 10-30 V dc Output: LO (Light Operate) Bipolar: 1 NPN;
1 PNP 9 m (30 ft) Cable (CAR WASH)

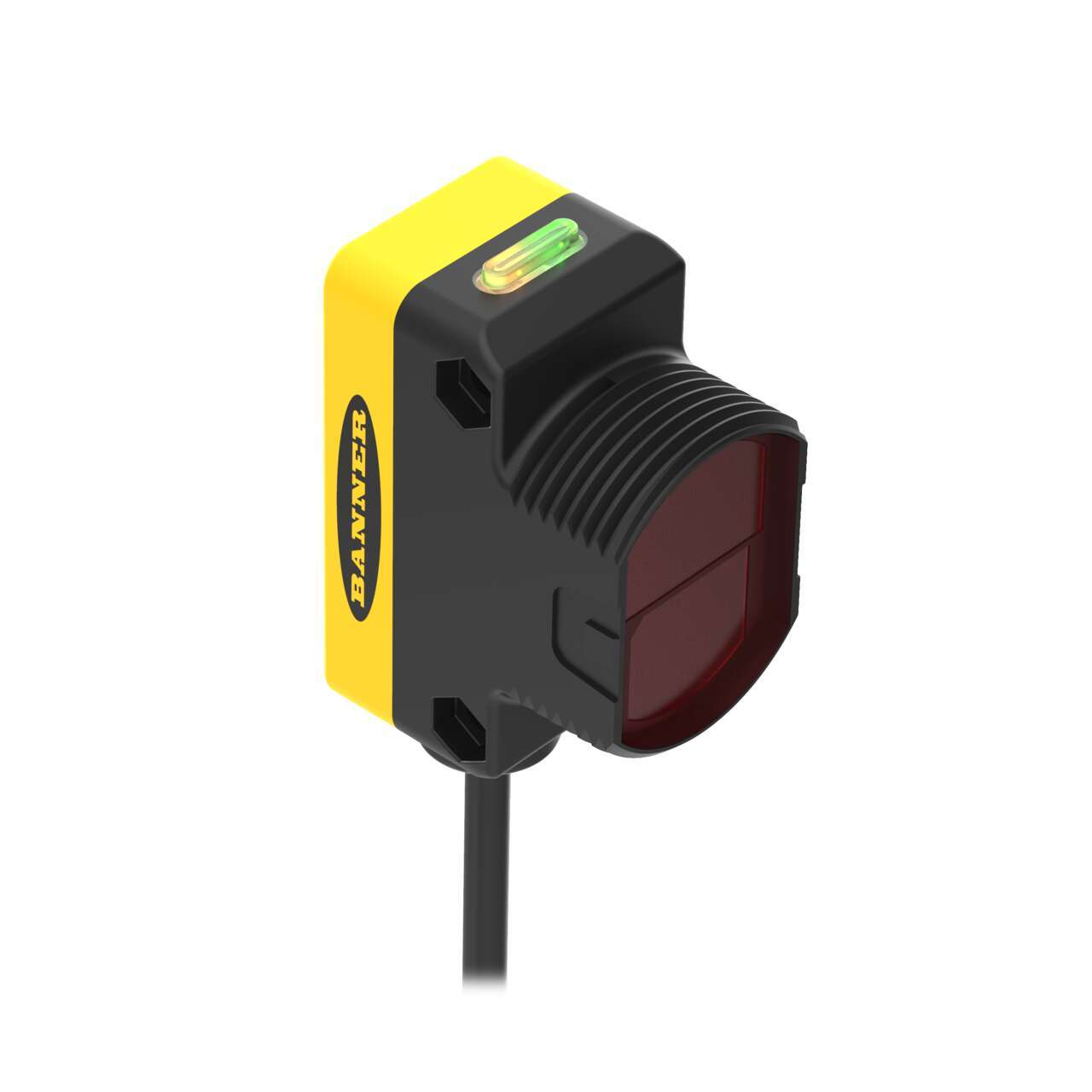

QS30LP
Series: Polarized Retro Range: 8 m;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 2 m (6.5 ft) Cable
QS30VR3FF200QPMA16
Series: Universal Voltage – FF Range: 200 mm;
Input: 12-250 V dc or 24-250 V ac Output: SPDT e/m Relay-250 V ac 150 mm (6 in) Micro-style PUR Pigtail QD;
designed for use with SMBQS30YL Bracket
QS30LV
Series: Retroreflective Range: 12 m;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 2 m (6.5 ft) Cable
QS30VR3FF400QPMA3
QS30VR3FF400QPMA3 Serisi Fotoelektrik Sensör — Banner’ın dünya standartlarında algılama teknolojisi ile üretilmiştir.

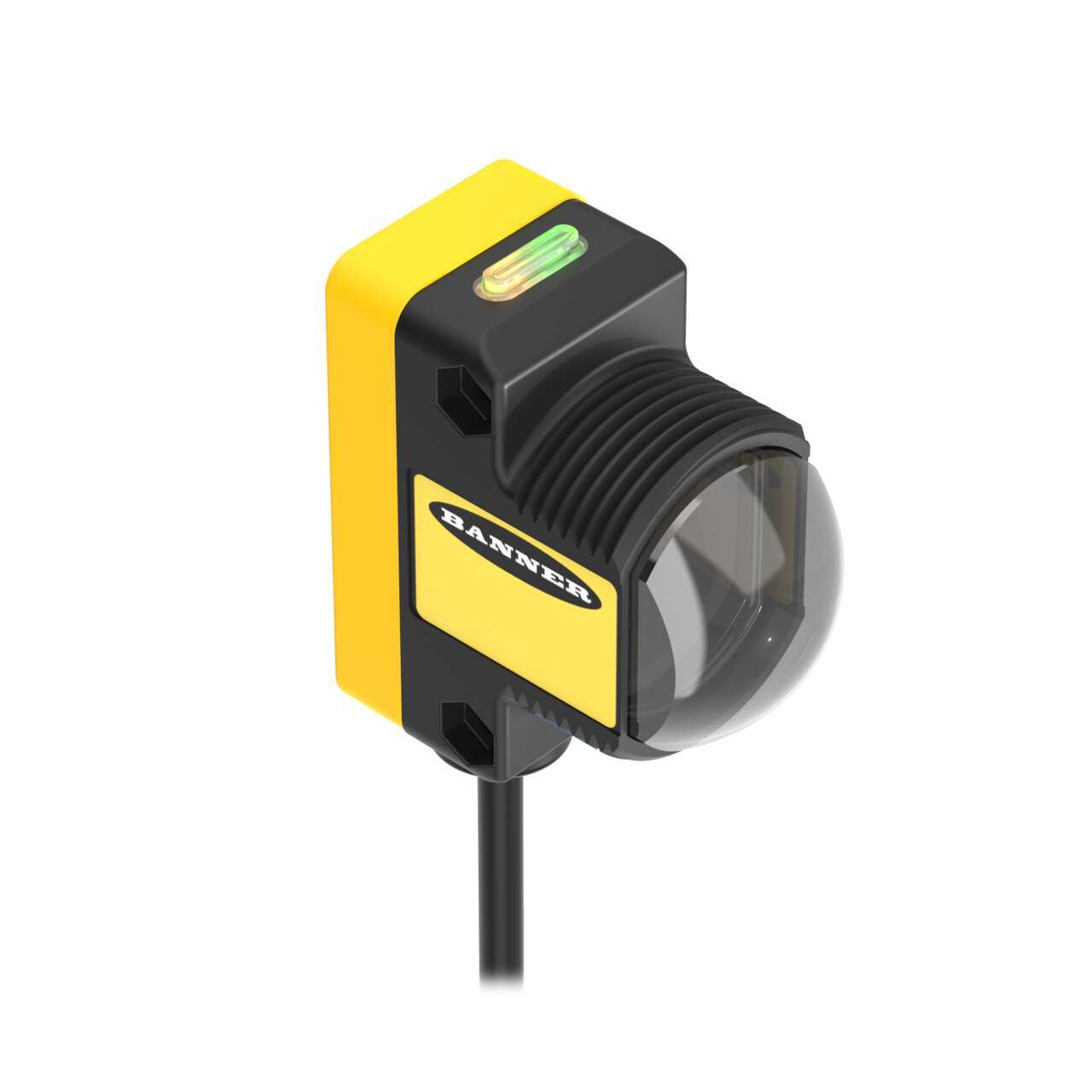

QS30EXQP
QS30EXQP Serisi Fotoelektrik Sensör — Banner’ın dünya standartlarında algılama teknolojisi ile üretilmiştir.
QS30VR3LP W
Series: Universal Voltage Range: 8 m;
Input: 12-250 V dc or 24-250 V ac Output: SPDT e/m Relay 9 m (30 ft) Cable
QS30RQ
Series: Receiver Range: 60 m;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 5-pin M12 Integral QD
QS30ARXH2OQ5
Series: H2O HP Receiver Range: 4 m;
Input: 10-30 V dc Output: LO;
Bipolar: 1 NPN;
1 PNP 150 mm (6 in) 5-pin M12 Pigtail QD
QS30ARXSH2OQ5
Series: High-Powered Receiver water detection Range: 8 m;
Input: 10-30 V dc Output: LO (Light Operate) Bipolar: 1 NPN;
1 PNP 150 mm (6 in) 5-pin M12 Pigtail QD PVC Connector
QS30EX W
Series: High-Powered Emitter Range: 213 m;
Input: 10-30 V dc Output: Not Applicable 9 m (30 ft) Cable (CAR WASH)
QS30R W
Series: Receiver Range: 60 m;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 9 m (30 ft) Cable
QS30EX
Series: High-Powered Emitter Range: 213 m;
Input: 10-30 V dc Output: Not Applicable 2 m (6.5 ft) Cable (CAR WASH)
QS30VR3FF400
Series: Universal Voltage Range: 400 mm;
Input: 12-250 V dc or 24-250 V ac Output: SPDT e/m Relay 2 m (6.5 ft) Cable
QS30LLPQPMA
WORLD-BEAM QS30: Long Range Laser Polarized Retro Range: 0.2-18 m;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 150 mm (6 in) M12 PUR Pigtail QD
QS30LPQPMA25
WORLD-BEAM QS30: Polarized Retro Range: 8 m;
Input: 10-30 V dc Output: Complementary: PNP, 150 mm (6 in) M12 PUR Pigtail QD
QS30LDQPMA
WORLD-BEAM QS30: Laser Diffuse (Class 1) Range: 400 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 150 mm (6 in) M12 PUR Pigtail QD
QS30VR3FF600QPMA16
Series: Universal Voltage – FF Range: 600 mm;
Input: 12-250 V dc or 24-250 V ac Output: SPDT e/m Relay-250 V ac 150 mm (6 in) Micro-style PUR Pigtail QD;
designed for use SMBQS30YL Bracket
QS30ELVCQ5
WORLD-BEAM QS30 Series Clear Object Sensor Range: 100 mm-2 m;
Input: 10-30 V dc Rating: IP67;
Output: Bipolar (NPN & PNP) 150 mm (6 in) Pigtail w/ 5-pin M12 QD
QS30VR3R W
Series: Universal Voltage Range: 60 m;
Input: 12-250 V dc or 24-250 V ac Output: SPDT e/m Relay 9 m (30 ft) Cable
QS30AFQPMA
Series: Universal Voltage Range: 400 mm;
Input: 12-250 V dc or 24-250 V ac Output: SPDT e/m Relay 9 m (30 ft) Cable
QS30VR3FF400 W
Series: Universal Voltage Range: 400 mm;
Input: 12-250 V dc or 24-250 V ac Output: SPDT e/m Relay 9 m (30 ft) Cable
QS30VR3FF200QPMA3
QS30VR3FF200QPMA3 Serisi Fotoelektrik Sensör — Banner’ın dünya standartlarında algılama teknolojisi ile üretilmiştir.
QS30EDV W
/30 WORLD-BEAM QS30 Expert Diffuse-Mode Visible Red Beam Range: High-Speed Mode: 1100 mm;
Normal Mode: 1400 mm Input: 10-30 V dc;
Output: Bipolar NPN/PNP 9 m (30 ft) Cable
QS30EDVQ
WORLD-BEAM QS30 Expert Diffuse-Mode Visible Red Beam Range: High-Speed Mode: 1100 mm;
Normal Mode: 1400 mm Input: 10-30 V dc;
Output: Bipolar NPN/PNP 5-pin M12 Integral QD
QS30EDV
WORLD-BEAM QS30 Expert Diffuse-Mode Visible Red Beam Range: High-Speed Mode: 1100 mm;
Normal Mode: 1400 mm Input: 10-30 V dc;
Output: Bipolar NPN/PNP 2 m (6.5 ft) Cable
QS30VR3RQPMA
Series: Universal Voltage – R Range: 60 m;
Input: 12-250 V dc or 24-250 V ac Output: SPDT e/m Relay-250 V ac 150 mm (6 in) Micro-style PUR Pigtail QD

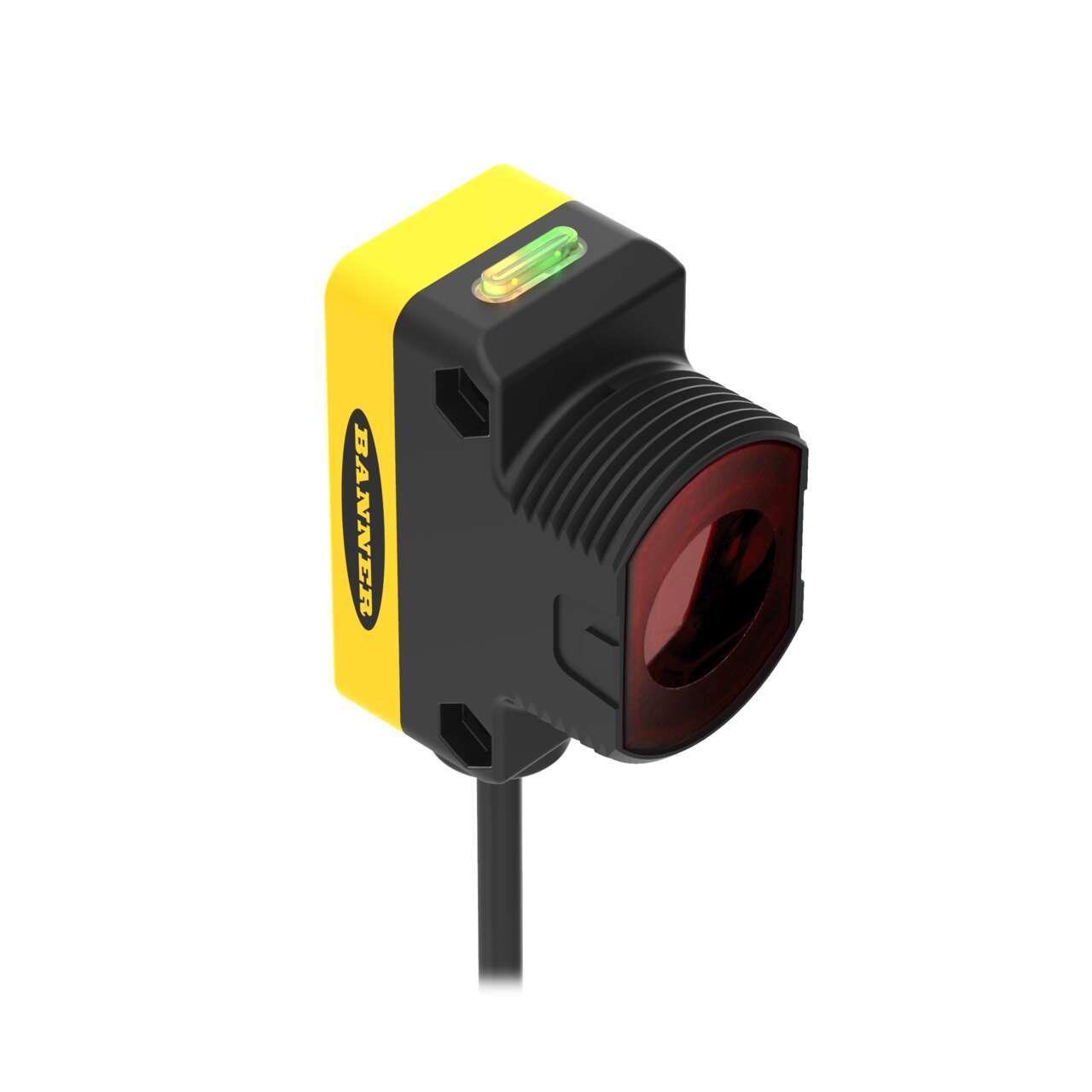

QS30RQPMA
WORLD-BEAM QS30: Receiver Range: 60 m;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 150 mm (6 in) M12 PUR Pigtail QD
QS30RRH2O
Series: H2O Receiver Range: 2 m;
Input: 10-30 V dc Output: DO;
Bipolar: 1 NPN;
1 PNP 2 m (6.5 ft) Cable
QS30LVQPMA
WORLD-BEAM QS30: Retroreflective Range: 12 m;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 150 mm (6 in) M12 PUR Pigtail QD
QS30LD
Series: Laser Diffuse (Class 1) Range: 400 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 2 m (6.5 ft) Cable
QS30RRX
Series: High-Powered Receiver Range: 213 m;
Input: 10-30 V dc Output: DO (Dark Operate) Bipolar: 1 NPN;
1 PNP 2 m (6.5 ft) Cable (CAR WASH)
QS30FF400QPMA
WORLD-BEAM QS30: Fixed-Field Range: 400 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 150 mm (6 in) M12 PUR Pigtail w/ dead zone
QS30VR3FF200 W
Series: Universal Voltage Range: 200 mm;
Input: 12-250 V dc or 24-250 V ac Output: SPDT e/m Relay 9 m (30 ft) Cable
QS30EDVQPMA8
WORLD-BEAM QS30 Expert Diffuse-Mode Visible Red Beam Range: High-Speed Mode: 1100 mm;
Normal Mode: 1400 mm Input: 10-30 V dc;
Output: Bipolar NPN/PNP
QS30VR3FF200QPMA
QS30VR3FF200QPMA Serisi Fotoelektrik Sensör — Banner’ın dünya standartlarında algılama teknolojisi ile üretilmiştir.
QS30FF600QPMA16
WORLD-BEAM QS30: Fixed-Field Range: 600 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 150 mm (6 in) M12 PUR Pigtail QD;
designed for use SMBQS30YL Bracket
QS30ARX
Series: High-Powered Receiver Range: 213 m;
Input: 10-30 V dc Output: LO (Light Operate) Bipolar: 1 NPN;
1 PNP 2 m (6.5 ft) Cable (CAR WASH)
QS30ARXH2O W
Series: H2O HP Receiver Range: 4 m;
Input: 10-30 V dc Output: LO;
Bipolar: 1 NPN;
1 PNP 9 m (30 ft) Cable
QS30ARXSH2O
Series: H2O SHP Receiver Range: 8 m;
Input: 10-30 V dc Output: LO;
Bipolar: 1 NPN;
1 PNP 2 m (6.5 ft) Cable
QS303E
Series: Universal Voltage Range: 60 m;
Input: 12-250 V dc or 24-250 V ac Output: Not Applicable 2 m (6.5 ft) Cable
QS30ELVCQPMA
WORLD-BEAM QS30 Series Clear Object Sensor Range: 100 mm-2 m;
Input: 10-30 V dc Rating: IP67;
Output: Bipolar (NPN & PNP) 150 mm (6 in) 5-pin M12 PUR Pigtail QD
QS30AF600
Series: Adjustable-Field Range: 50 – 600 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 2 m (6.5 ft) Cable
QS30FF600 W
Series: Fixed-Field Range: 600 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 9 m (30 ft) Cable
QS30LDB
Series: Laser Diffuse (Class 1) B frequency Range: 400 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 2 m (6.5 ft) Cable
QS30VR3FF600QPMA3
QS30VR3FF600QPMA3 Serisi Fotoelektrik Sensör — Banner’ın dünya standartlarında algılama teknolojisi ile üretilmiştir.
QS30LPQPMA
WORLD-BEAM QS30: Polarized Retro Range: 8 m;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 150 mm (6 in) M12 PUR Pigtail QD
QS30VR3LPQPMA
Series: Universal Voltage – LP Range: 8 m;
Input: 12-250 V dc or 24-250 V ac Output: SPDT e/m Relay-250 V ac 150 mm (6 in) Micro-style PUR Pigtail QD
QS30AFF400Q5
QS30AFF400Q5 Serisi Fotoelektrik Sensör — Banner’ın dünya standartlarında algılama teknolojisi ile üretilmiştir.
QS30LDQP
QS30LDQP Serisi Fotoelektrik Sensör — Banner’ın dünya standartlarında algılama teknolojisi ile üretilmiştir.
QS30DQ
Series: Diffuse Range: 1.0 m;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 5-pin M12 Integral QD
QS30AF
Series: Adjustable-Field Range: 50 to 300 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 2 m (6.5 ft) Cable
QS30LVQ
Series: Retroreflective Range: 12 m;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 5-pin M12 Integral QD
QS30RRXSH2OQ5
Series: H2O SHP Receiver Range: 8 m;
Input: 10-30 V dc Output: DO;
Bipolar: 1 NPN;
1 PNP 150 mm (6 in) 5-pin M12 Pigtail QD
QS30FF400
Series: Fixed-Field Range: 400 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 2 m (6.5 ft) Cable
QS30R
Series: Receiver Range: 60 m;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 2 m (6.5 ft) Cable
QS30AF600Q5
Series: Adjustable-Field Range: 50 – 600 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 150 mm (6 in) 5-pin M12 PVC Pigtail QD
QS30ELVC
WORLD-BEAM QS30 Series Clear Object Sensor Range: 100 mm – 2 m;
Input: 10-30 V dc Rating: IP67;
Output: Bipolar (NPN & PNP) 2 m (6.5 ft) Cable
QS30LLP
WORLD-BEAM QS30: Long Range Laser Polarized Retro Range: 0.2-18 m;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 2 m (6.5 ft) Cable
QS30LDL W
Series: Laser Diffuse (Class 2) Range: 800 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 9 m (30 ft) Cable
QS30AF600Q
Series: Adjustable-Field Range: 50 – 600 mm;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 5-pin M12 Integral QD
QS30LLPQP
WORLD-BEAM QS30: Long Range Laser Polarized Retro Range: 0.2-18 m;
Input: 10-30 V dc Output: Bipolar: 1 NPN;
1 PNP 150 mm (6 in) 5-pin M12 Pigtail QD
QS30ARH2OQ5
Series: H2O Receiver Range: 2 m;
Input: 10-30 V dc Output: LO;
Bipolar: 1 NPN;
1 PNP 150 mm (6 in) 5-pin M12 Pigtail QD
