Banner Q2X Serisi Fotoelektrik Sensör
Banner Q2X Serisi, kompakt boyutları ve sağlam tasarımı ile dar endüstriyel alanlara ve hassas makinelere kolayca monte edilebilen minyatür fotoelektrik sensörlerdir.
Doğru seçim için destek olabiliriz: +90 533 049 96 24
08:30 – 17.30 | Pazartesi – Cumartesi
08:30 – 17.30 | Pazartesi – Cumartesi
Ürün Özellikleri
Açıklama
Ürün Özellikleri
- Minyatür sensörler dar alanlara kolayca monte edilebilir
- Küçük parçalar için hassas ve kararlı konum tespiti
- Kanıtlanmış montaj ve bağlantı seçenekleriyle makina tasarımında esneklik
- Küçük, yüksek görünürlüklü kırmızı LED veya Sınıf 1 lazer verici (sadece ayarlanabilir menzilli modelde)
- Enerji tasarruflu ışıklara karşı gelişmiş dayanım
- Sinyal karışmasına karşı dayanım algoritması, iki sensörün yakın mesafede kullanılmasına olanak sağlar
Alt Modeller

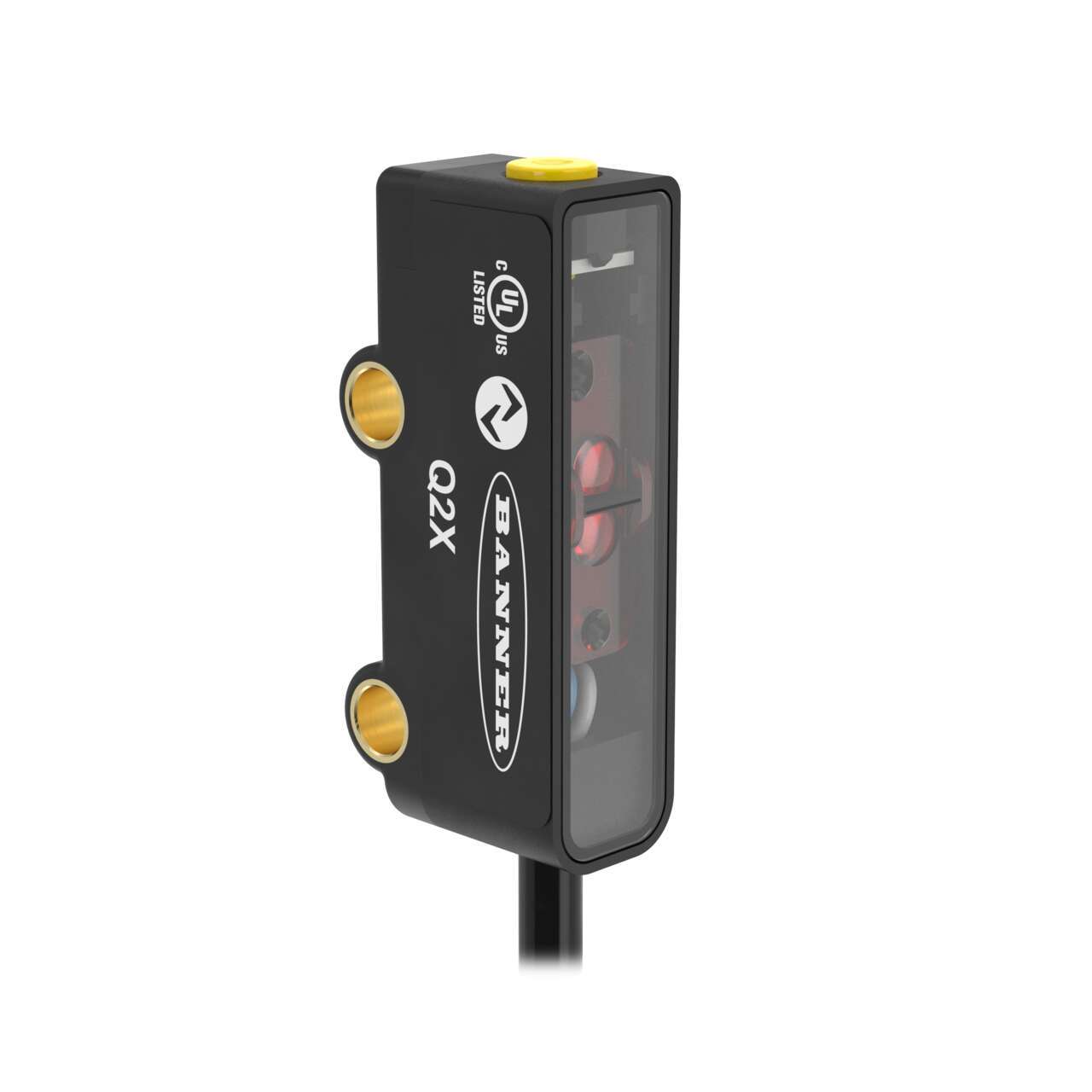

Q2XKLAF3IR-Q5
Series: IR Laser Adjustable Field Range: 20-3000 mm;
Input 10-30 V dc Output: 1 PNP with IO-Link;
1 PNP Multi-Function I/O 150 mm (6 in) M12 Pigtail QD

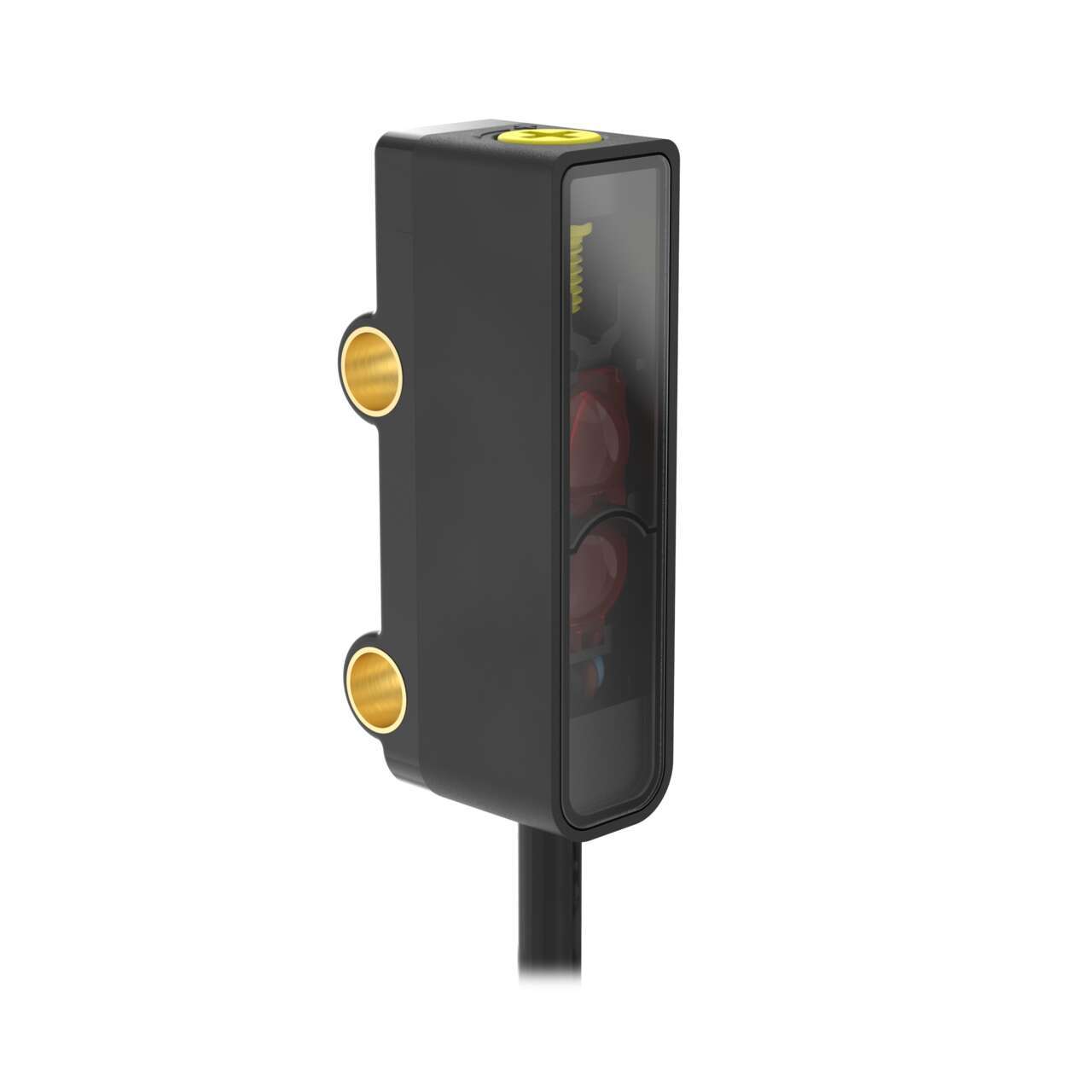

Q2XABLAF100-Q5
Series: Laser Adjustable Field Sensor Range: 18-100 mm;
Input 10-30 V dc Output: LO (Light Operate) Bipolar: 1 NPN, 1 PNP 150 mm (6 in) 4-pin M12 Pigtail QD

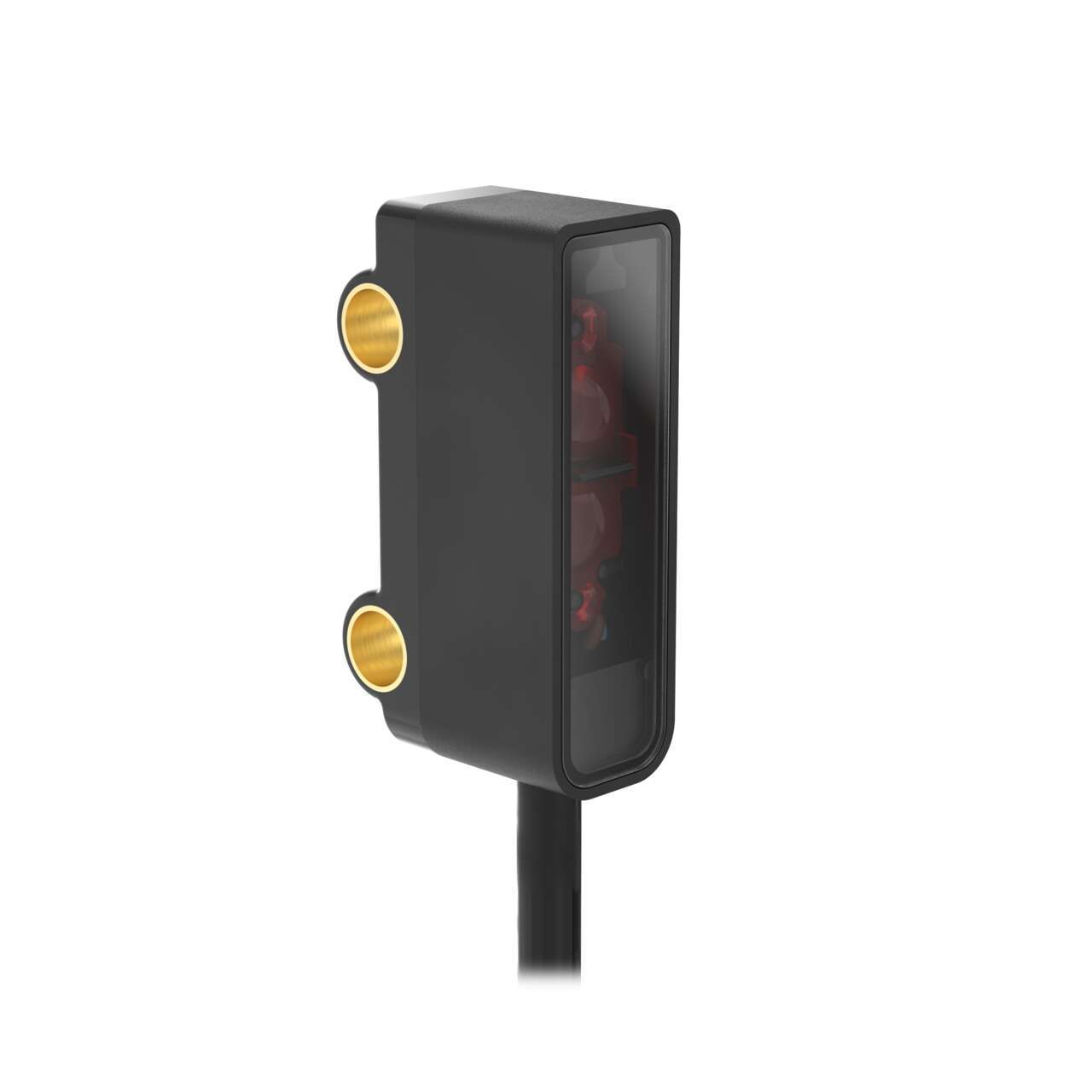

Q2XRBLPF-Q5
Q2X Polarized Retroreflective Range: 3300 mm;
Input 10-30 V dc Output: DO (Dark Operate), Bipolar: 1 NPN, 1 PNP 150 mm (6 in) 4-pin M12 Pigtail QD
Q2XNAE-Q5
Series: Emitter Range: 3000 mm;
Input 10-30 V dc Output: Not Applicable 150 mm (6 in) 4-pin M12 Pigtail QD
Q2XRBR-Q5
Series: Receiver Range: 3000 mm;
Input 10-30 V dc Output: DO (Dark Operate), Bipolar: 1 NPN, 1 PNP 150 mm (6 in) 4-pin M12 Pigtail QD

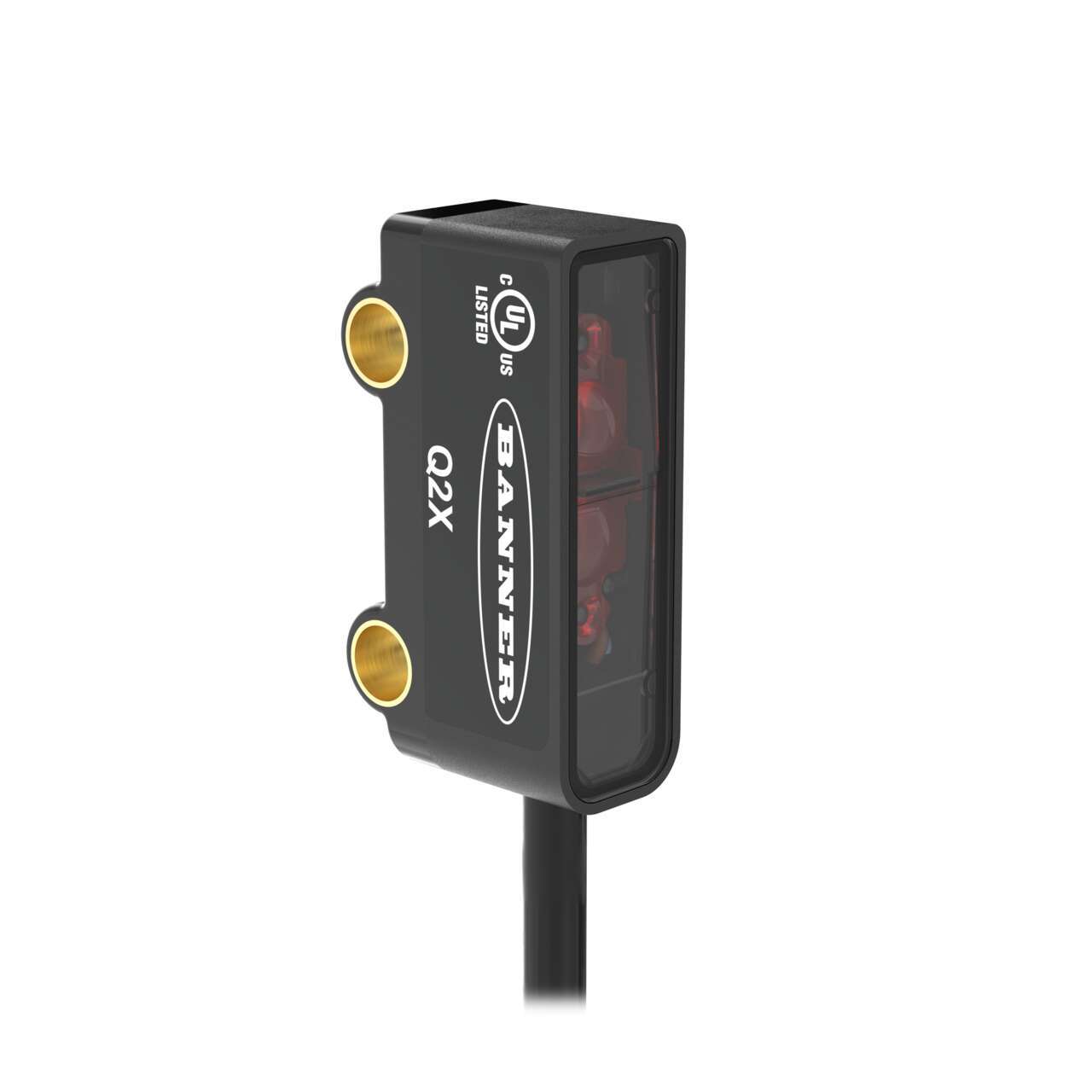

Q2XABFF30-Q
Q2X Fixed Field Range: 30 mm;
Input 10-30 V dc Output: LO (Light Operate), Bipolar: 1 NPN, 1 PNP 150 mm (6 in) 4-pin M8 Pigtail QD
Q2XABFF30-Q5
Q2X Fixed Field Range: 30 mm;
Input 10-30 V dc Output: LO (Light Operate), Bipolar: 1 NPN, 1 PNP 150 mm (6 in) 4-pin M12 Pigtail QD
Q2XABAF150-Q5
Series: Adjustable Field Sensor Range: 18-150 mm;
Input 10-30 V dc Output: LO (Light Operate) Bipolar: 1 NPN, 1 PNP 150 mm (6 in) 4-pin M12 Pigtail QD
Q2XKLAF2IR-Q5
Series: IR Laser Adjustable Field Range: 20-2000 mm;
Input 10-30 V dc Output: 1 PNP with IO-Link;
1 PNP Multi-Function I/O 150 mm (6 in) M12 Pigtail QD
Q2XANLAF100-2M
Series: Laser Adjustable Field Sensor Range: 18-100 mm;
Input 10-30 V dc Output: LO (Light Operate), 1 NPN 2 m (6.5 ft) Cable
Q2XABR-Q
Series: Receiver Range: 3000 mm;
Input 10-30 V dc Output: LO (Light Operate), Bipolar: 1 NPN, 1 PNP 150 mm (6 in) 4-pin M8 Pigtail QD
Q2XAPR-Q3
Series: Receiver Range: 3000 mm;
Input 10-30 V dc Output: LO (Light Operate), 1 PNP 150 mm (6 in) 3-pin M8 Pigtail QD
Q2XANR-Q3
Series: Receiver Range: 3000 mm;
Input 10-30 V dc Output: LO (Light Operate), 1 NPN 150 mm (6 in) 3-pin M8 Pigtail QD
Q2XANLPF-2M
Q2X Polarized Retroreflective Range: 3300 mm;
Input 10-30 V dc Output: LO (Light Operate), 1 NPN 2 m (6.5 ft) Cable
Q2XRNLPF-Q3
Q2X Polarized Retroreflective Range: 3300 mm;
Input 10-30 V dc Output: DO (Dark Operate), 1 NPN 150 mm (6 in) 3-pin M8 Pigtail QD
Q2XNAE-2M
Series: Emitter Range: 3000 mm;
Input 10-30 V dc Output: Not Applicable 2 m (6.5 ft) Cable
Q2XAPAF150-2M
Series: Adjustable Field Sensor Range: 18-150 mm;
Input 10-30 V dc Output: LO (Light Operate), 1 PNP 2 m (6.5 ft) Cable
Q2XABFF15-Q
Q2X Fixed Field Range: 15 mm;
Input 10-30 V dc Output: LO (Light Operate), Bipolar: 1 NPN, 1 PNP 150 mm (6 in) 4-pin M8 Pigtail QD
Q2XABFF50-Q5
Q2X Fixed Field Range: 50 mm;
Input 10-30 V dc Output: LO (Light Operate), Bipolar: 1 NPN, 1 PNP 150 mm (6 in) 4-pin M12 Pigtail QD
Q2XABLPF-Q5
Q2X Polarized Retroreflective Range: 3300 mm;
Input 10-30 V dc Output: LO (Light Operate), Bipolar: 1 NPN, 1 PNP 150 mm (6 in) 4-pin M12 Pigtail QD
Q2XANR-2M
Series: Receiver Range: 3000 mm;
Input 10-30 V dc Output: LO (Light Operate), 1 NPN 2 m (6.5 ft) Cable
Q2XAPLPF-2M
Q2X Polarized Retroreflective Range: 3300 mm;
Input 10-30 V dc Output: LO (Light Operate), 1 PNP 2 m (6.5 ft) Cable
Q2XANAF150-2M
Series: Adjustable Field Sensor Range: 18-150 mm;
Input 10-30 V dc Output: LO (Light Operate), 1 NPN 2 m (6.5 ft) Cable
Q2XABFF30-2M
Q2X Fixed Field Range: 30 mm;
Input 10-30 V dc Output: LO (Light Operate), Bipolar: 1 NPN, 1 PNP 2 m (6.5 ft) Cable
Q2XABAF150-Q
Series: Adjustable Field Sensor Range: 18-150 mm;
Input 10-30 V dc Output: LO (Light Operate) Bipolar: 1 NPN, 1 PNP 150 mm (6 in) 4-pin M8 Pigtail QD
Q2XAPLAF100-2M
Series: Laser Adjustable Field Sensor Range: 18-100 mm;
Input 10-30 V dc Output: LO (Light Operate), 1 PNP 2 m (6.5 ft) Cable
Q2XRBLAF100-Q5
Series: Laser Adjustable Field Sensor Range: 18-100 mm;
Input 10-30 V dc Output: DO (Dark Operate) Bipolar: 1 NPN, 1 PNP 150 mm (6 in) 4-pin M12 Pigtail QD
Q2XABLAF100-Q
Series: Laser Adjustable Field Sensor Range: 18-100 mm;
Input 10-30 V dc Output: LO (Light Operate) Bipolar: 1 NPN, 1 PNP 150 mm (6 in) 4-pin M8 Pigtail QD
Q2XKLAF3IR-Q
Series: IR Laser Adjustable Field Range: 20-3000 mm;
Input 10-30 V dc Output: 1 PNP with IO-Link;
1 PNP Multi-Function I/O 150 mm (6 in) M8 Pigtail QD
Q2XRPR-2M
Series: Receiver Range: 3000 mm;
Input 10-30 V dc Output: DO (Dark Operate), 1 PNP 2 m (6.5 ft) Cable
Q2XRBAF150-Q5
Series: Adjustable Field Sensor Range: 18-150 mm;
Input 10-30 V dc Output: DO (Dark Operate)Bipolar: 1 NPN, 1 PNP 150 mm (6 in) 4-pin M12 Pigtail QD
Q2XAPR-2M
Series: Receiver Range: 3000 mm;
Input 10-30 V dc Output: LO (Light Operate), 1 PNP 2 m (6.5 ft) Cable
Q2XRBLPF-Q
Q2X Polarized Retroreflective Range: 3300 mm;
Input 10-30 V dc Output: DO (Dark Operate), Bipolar: 1 NPN, 1 PNP 150 mm (6 in) 4-pin M8 Pigtail QD
Q2XANAF150-Q3
Series: Adjustable Field Sensor Range: 18-150 mm;
Input 10-30 V dc Output: LO (Light Operate), 1 NPN 150 mm (6 in) 3-pin M8 Pigtail QD
Q2XABFF15-2M
Q2X Fixed Field Range: 15 mm;
Input 10-30 V dc Output: LO (Light Operate), Bipolar: 1 NPN, 1 PNP 2 m (6.5 ft) Cable
Q2XRNR-2M
Series: Receiver Range: 3000 mm;
Input 10-30 V dc Output: DO (Dark Operate), 1 NPN 2 m (6.5 ft) Cable
Q2XKLAF2IR-Q
Series: IR Laser Adjustable Field Range: 20-2000 mm;
Input 10-30 V dc Output: 1 PNP with IO-Link;
1 PNP Multi-Function I/O 150 mm (6 in) M8 Pigtail QD
Q2XNAE-Q3
Series: Emitter Range: 3000 mm;
Input 10-30 V dc Output: Not Applicable 150 mm (6 in) 3-pin M8 Pigtail QD
Q2XANLPF-Q3
Q2X Polarized Retroreflective Range: 3300 mm;
Input 10-30 V dc Output: LO (Light Operate), 1 NPN 150 mm (6 in) 3-pin M8 Pigtail QD
Q2XABR-Q5
Series: Receiver Range: 3000 mm;
Input 10-30 V dc Output: LO (Light Operate), Bipolar: 1 NPN, 1 PNP 150 mm (6 in) 4-pin M12 Pigtail QD
Q2XRPLAF100-Q3
Series: Laser Adjustable Field Sensor Range: 18-100 mm;
Input 10-30 V dc Output: DO (Dark Operate), 1 PNP 150 mm (6 in) 3-pin M8 Pigtail QD
Q2XRPR-Q3
Series: Receiver Range: 3000 mm;
Input 10-30 V dc Output: DO (Dark Operate), 1 PNP 150 mm (6 in) 3-pin M8 Pigtail QD
Q2XRBR-Q
Series: Receiver Range: 2000 mm;
Input 10-30 V dc Output: DO (Dark Operate), Bipolar: 1 NPN, 1 PNP 150 mm (6 in) 4-pin M8 Pigtail QD
Q2XANLAF100-Q3
Series: Laser Adjustable Field Sensor Range: 18-100 mm;
Input 10-30 V dc Output: LO (Light Operate), 1 NPN 150 mm (6 in) 3-pin M8 Pigtail QD
Q2XAPLPF-Q3
Q2X Polarized Retroreflective Range: 3300 mm;
Input 10-30 V dc Output: LO (Light Operate), 1 PNP 150 mm (6 in) 3-pin M8 Pigtail QD
Q2XRPLPF-Q3
Q2X Polarized Retroreflective Range: 3300 mm;
Input 10-30 V dc Output: DO (Dark Operate), 1 PNP 150 mm (6 in) 3-pin M8 Pigtail QD
Q2XABLPF-Q
Q2X Polarized Retroreflective Range: 3300 mm;
Input 10-30 V dc Output: LO (Light Operate), Bipolar: 1 NPN, 1 PNP 150 mm (6 in) 4-pin M8 Pigtail QD
Q2XRPLAF100-2M
Series: Laser Adjustable Field Sensor Range: 18-100 mm;
Input 10-30 V dc Output: DO (Dark Operate), 1 PNP 2 m (6.5 ft) Cable
Q2XABFF50-2M
Q2X Fixed Field Range: 50 mm;
Input 10-30 V dc Output: LO (Light Operate), Bipolar: 1 NPN, 1 PNP 2 m (6.5 ft) Cable
Q2XABFF50-Q
Q2X Fixed Field Range: 50 mm;
Input 10-30 V dc Output: LO (Light Operate), Bipolar: 1 NPN, 1 PNP 150 mm (6 in) 4-pin M8 Pigtail QD
Q2XABFF15-Q5
Series: Laser Adjustable Field Sensor Range: 18-100 mm;
Input 10-30 V dc Output: LO (Light Operate), 1 PNP 150 mm (6 in) 3-pin M8 Pigtail QD
Q2XAPLAF100-Q3
Series: Laser Adjustable Field Sensor Range: 18-100 mm;
Input 10-30 V dc Output: LO (Light Operate), 1 PNP 150 mm (6 in) 3-pin M8 Pigtail QD
Q2XRNR-Q3
Series: Receiver Range: 3000 mm;
Input 10-30 V dc Output: DO (Dark Operate), 1 NPN 150 mm (6 in) 3-pin M8 Pigtail QD
