Banner T18-2 Serisi Fotoelektrik Sensör
Banner T18-2 Serisi, IP69K epoxy encapsulated gövdesi ve FDA sınıfı plastik yapısı ile wash-down (yıkama) ve termal şok ortamlarına uygun dayanıklı fotoelektrik sensörlerdir.
Doğru seçim için destek olabiliriz: +90 533 049 96 24
08:30 – 17.30 | Pazartesi – Cumartesi
08:30 – 17.30 | Pazartesi – Cumartesi
Ürün Özellikleri
Açıklama
Ürün Özellikleri
- IP69K epoxy encapsulated (epoksi kaplı) devre kartı
- Gövde tamamen sertifikalı FDA sınıfı plastikten üretilmiştir
- Sensör, aynı malzemeden tek parça oluşturacak şekilde ultrasonik olarak kaynaklanmıştır; hızla değişen sıcaklıklara sahip ortamlar için idealdir
- Daha hijyenik bir sensör için pürüzsüz, iyileştirilmiş tasarım
- Tamamen sızdırmaz ve kaçak yapmayan yapı
- -40 ile +70 °C arasında çalışır
- Çift fonksiyonlu güç ve stabilite göstergeleri
- IR modelleri hariç, kolay hizalamanız ve kurulumunuz için görünür kırmızı verici
Alt Modeller

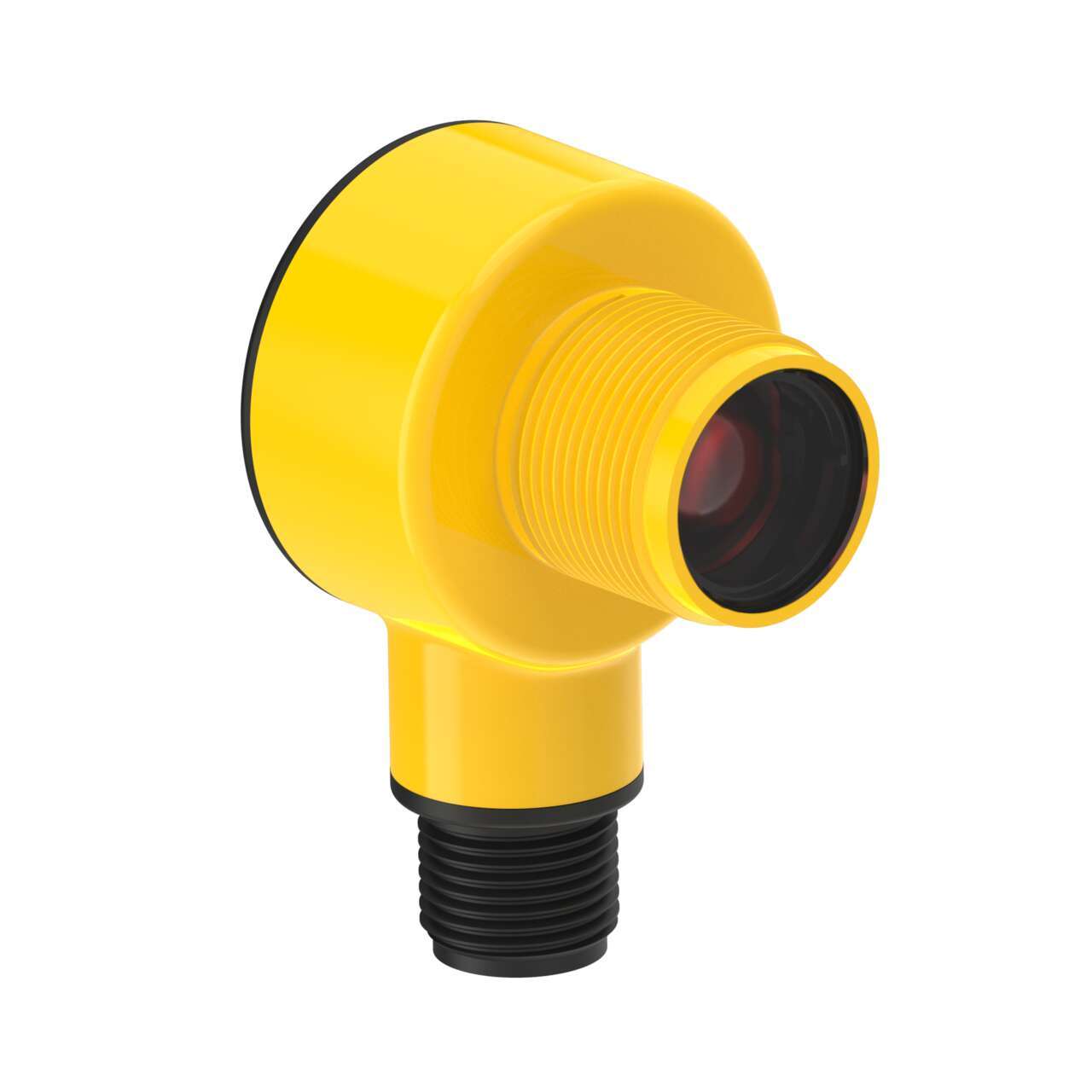

T18-2VNFF50IR-Q8
T18-2 Series: IR Fixed Field Range: 50 mm;
Input: 10-30 V dc Outputs: Complementary NPN 4-pin M12 Integral QD
T18-2VNFF100-Q8
T18-2 Series: Fixed Field Range: 100 mm;
Input: 10-30 V dc Outputs: Complementary NPN 4-pin M12 Integral QD
T18-2VPFF100IR-Q8
T18-2 Series: IR Fixed Field Range: 100 mm;
Input: 10-30 V dc Outputs: Complementary PNP 4-pin M12 Integral QD
T18-2VNLP-Q8
T18-2 Series: Polarized Retroreflective Range: 6 m;
Input: 10-30 V dc Outputs: Complementary NPN 4-pin M12 Integral QD
T18-2VNRL-Q8
T18-2 Series: Receiver Range: 25 m;
Input: 10-30 V dc Outputs: Complementary NPN 4-pin M12 Integral QD
T18-2VNFF100IR-Q8
T18-2 Series: IR Fixed Field Range: 100 mm;
Input: 10-30 V dc Outputs: Complementary NPN 4-pin M12 Integral QD
T18-2VPFF30IR-Q8
T18-2 Series: IR Fixed Field Range: 30 mm;
Input: 10-30 V dc Outputs: Complementary PNP 4-pin M12 Integral QD

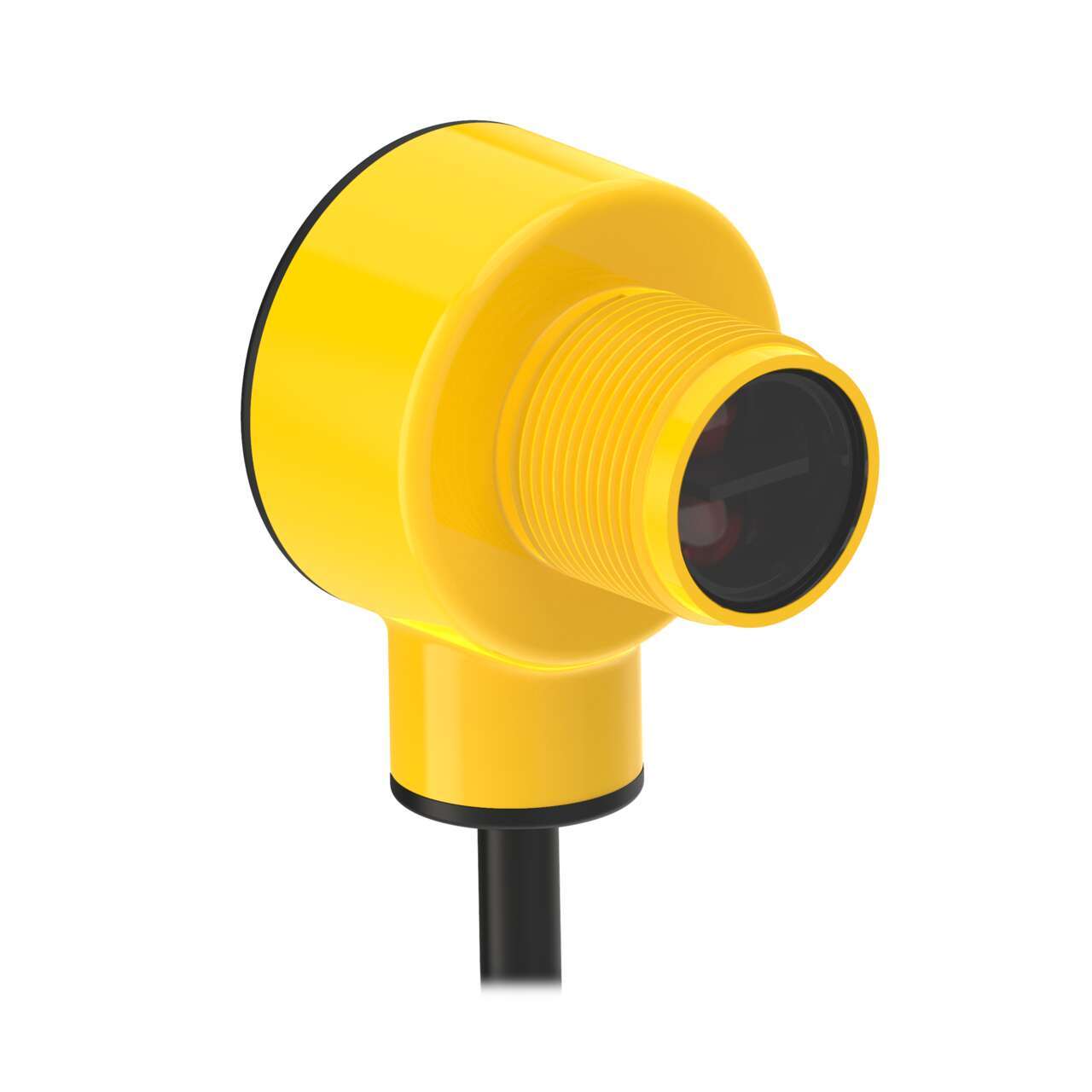

T18-2VNDL-2M
T18-2 Series: Diffuse Reflective with Pot Range: 750 mm;
Input: 10-30 V dc Outputs: complementary NPN 2 m 4-conductor PVC Cable
T18-2VNLPC-Q8
T18-2 Series: Polarized Retroreflective with pot Range: Variable to 6 m;
Input: 10-30 V dc Outputs: Complementary NPN 4-pin M12 Integral QD
T18-2VNLPC-2M
T18-2 Series: Polarized Retroreflective with pot Range: variable to 6 m;
Input: 10-30 V dc Outputs: complementary NPN 2 m 4-conductor PVC Cable

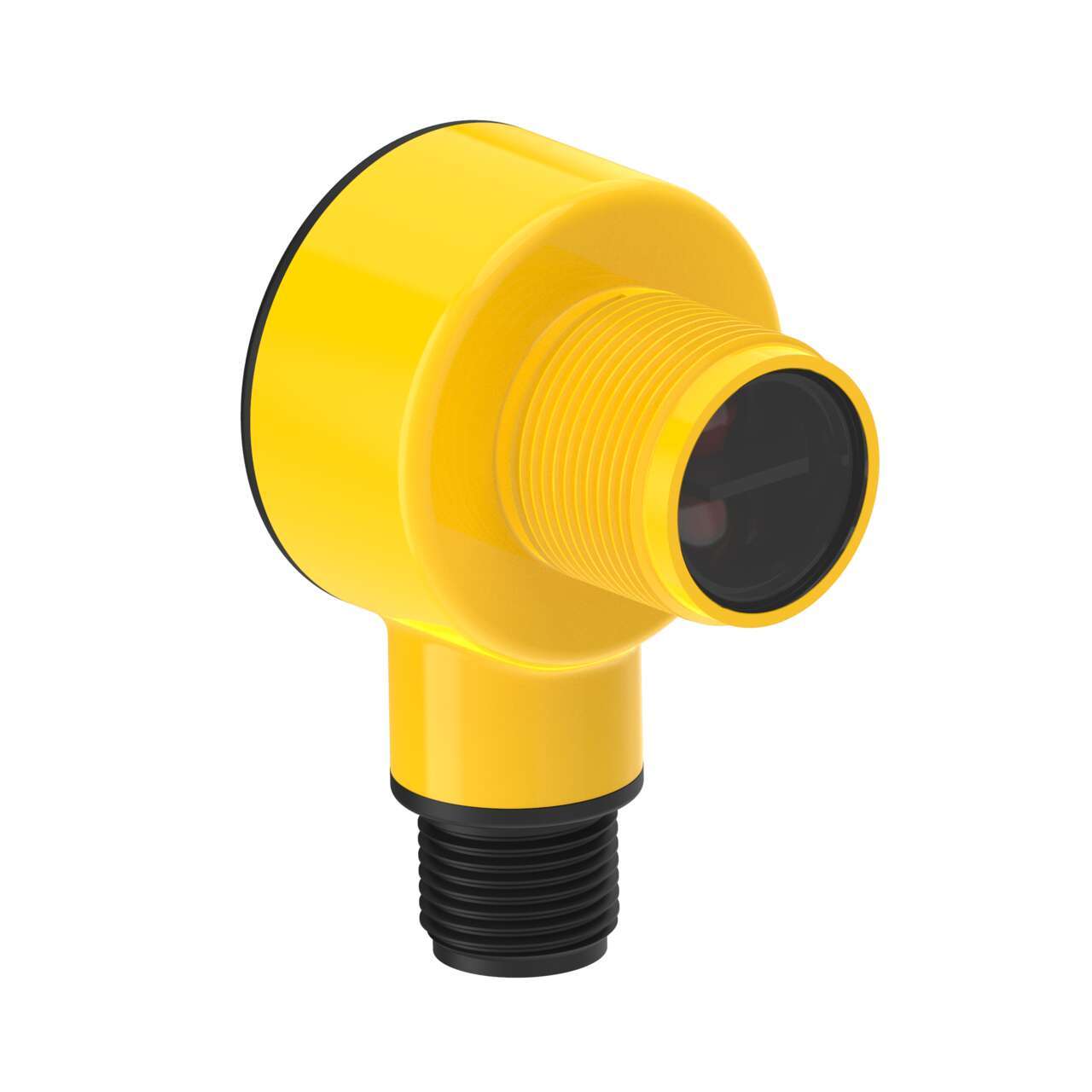

T18-2VPDLIR-Q8
T18-2 Series: IR Photoelectric Input: 10-30 V dc Outputs: Complementary NPN 4-pin M12 Integral QD
T18-2VPFF50IR-Q8
T18-2 Series: IR Fixed Field Range: 50 mm;
Input: 10-30 V dc Outputs: Complementary PNP 4-pin M12 Integral QD
T18-2VPDL-Q8
T18-2 Series: Diffuse Reflective with Pot Range: 750 mm;
Input: 10-30 V dc Outputs: Complementary PNP 4-pin M12 Integral QD
T18-2VPLP-Q8
T18-2 Series: Polarized Retroreflective Range: 6 m;
Input: 10-30 V dc Outputs: Complementary PNP 4-pin M12 Integral QD
T18-2NAEL-Q8
T18-2 Series: Emitter;
Long Range Range: 25 m;
Input: 10-30 V dc Outputs: None 4-pin M12 Integral QD
T18-2VPRL-Q8
T18-2 Series: Receiver Range: 25 m;
Input: 10-30 V dc Outputs: Complementary PNP 4-pin M12 Integral QD
T18-2VPLPC-Q8
T18-2 Series: Polarized Retroreflective with pot Range: Variable to 6 m;
Input: 10-30 V dc Outputs: Complementary PNP 4-pin M12 Integral QD
T18-2NAELIR-Q8
T18-2 Series: IR Emitter;
Long Range Range: 25 m;
Input: 10-30 V dc Outputs: None 4-pin M12 Integral QD
T18-2VPFF100-Q8
T18-2 Series: Fixed Field Range: 100 mm;
Input: 10-30 V dc Outputs: Complementary PNP 4-pin M12 Integral QD

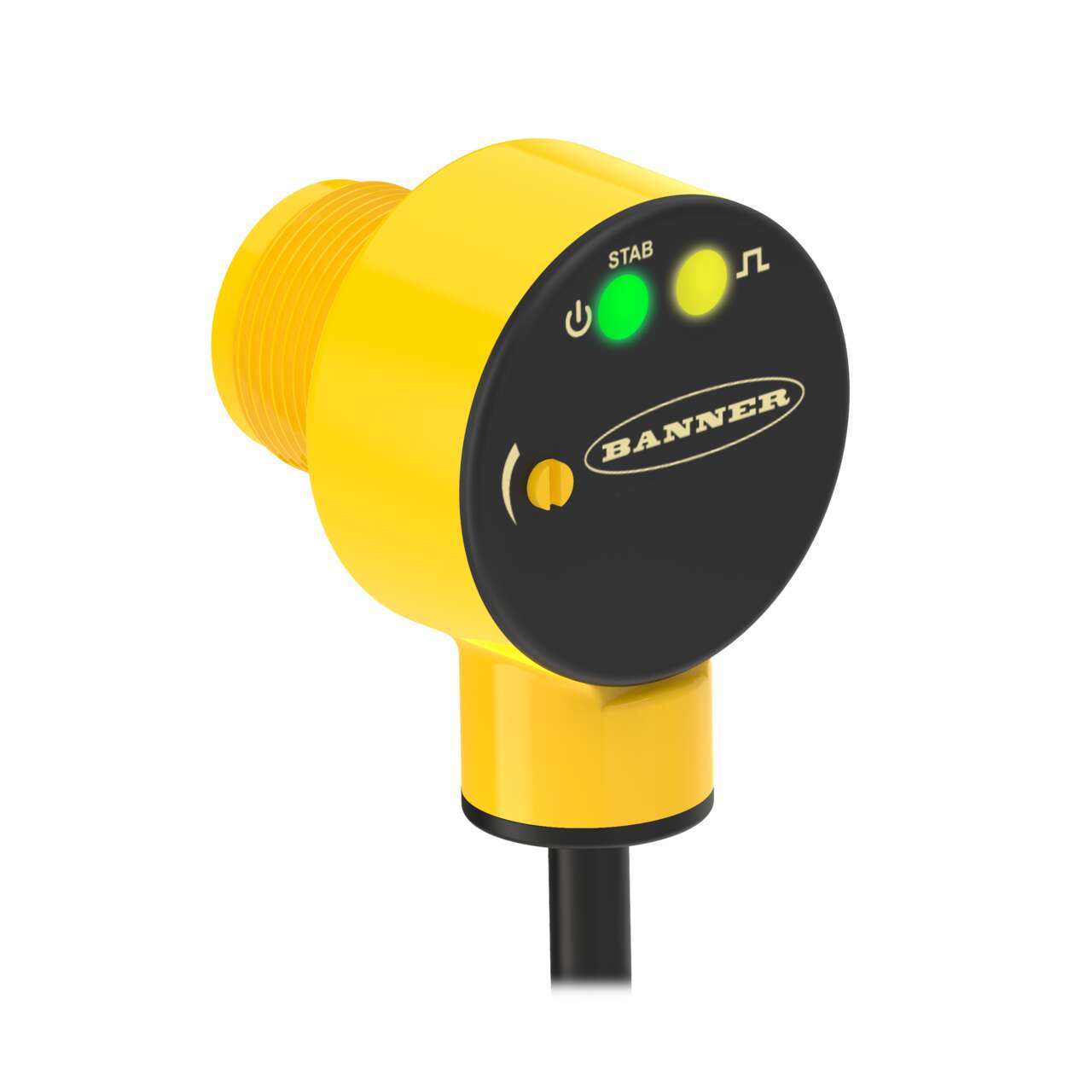

T18-2VPDLIR-2M
T18-2 Series: Diffuse Reflective with Pot IR Range: 750 mm;
Input: 10-30 V dc Outputs: complementary PNP 2 m 4-conductor PVC Cable
T18-2VPFF200IR-Q8
T18-2 Series: IR Fixed Field Range: 200 mm;
Input: 10-30 V dc Outputs: Complementary NPN 4-pin M12 Integral QD

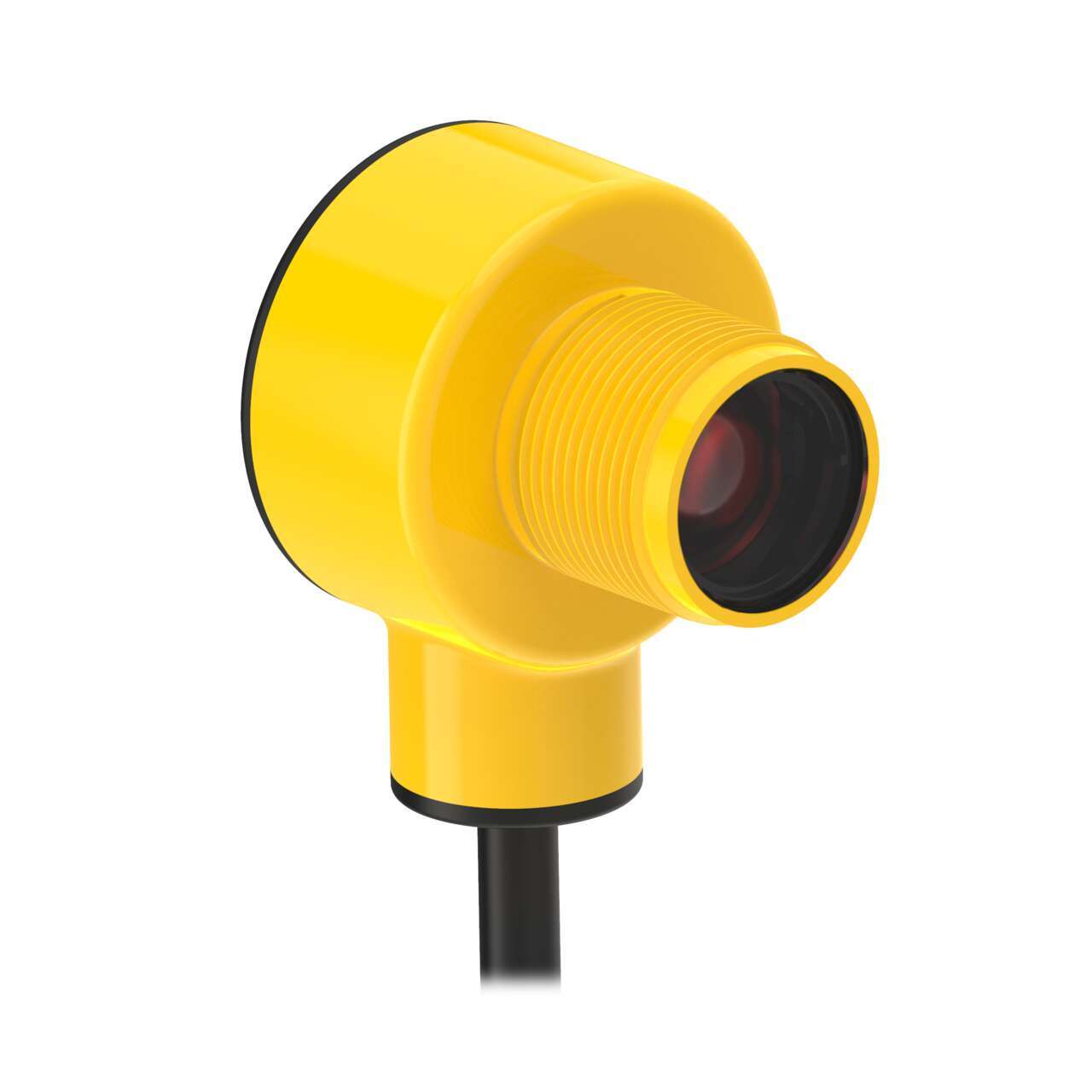

T18-2VPFF100IR-9M
T18-2 Series: IR Fixed Field Range: 100 mm;
Input: 10-30 V dc Outputs: complementary PNP 9 m 4-conductor PVC Cable
T18-2VPFF100IR-2M
T18-2 Series: IR Fixed Field Range: 100 mm;
Input: 10-30 V dc Outputs: complementary PNP 2 m 4-conductor PVC Cable
T18-2VPFF30-2M
T18-2 Series: Fixed Field Range: 30 mm;
Input: 10-30 V dc Outputs: complementary PNP 2 m 4-conductor PVC Cable
T18-2VPDS-2M
T18-2 Series: Diffuse Short Range Reflective with Pot Range: 300 mm;
Input: 10-30 V dc Outputs: complementary PNP 2 m 4-conductor PVC Cable
T18-2VPLP-9M
T18-2 Series: Polarized Retroreflective Range: 6 m;
Input: 10-30 V dc Outputs: complementary PNP 9 m 4-conductor PVC Cable
T18-2VPRL-9M
T18-2 Series: Receiver Range: 25 m;
Input: 10-30 V dc Outputs: complementary PNP 9 m 4-conductor PVC Cable
T18-2VNFF200-2M
T18-2 Series: Fixed Field Range: 200 mm;
Input: 10-30 V dc Outputs: complementary NPN 2 m 4-conductor PVC Cable
T18-2VNDL-Q8
T18-2 Series: Diffuse Reflective with Pot Range: 750 mm;
Input: 10-30 V dc Outputs: Complementary NPN 4-pin M12 Integral QD
T18-2VPRS-2M
T18-2 Series: Receiver with pot Range: variable to 25 m;
Input: 10-30 V dc Outputs: complementary PNP 2 m 4-conductor PVC Cable
T18-2VPFF50IR-2M
T18-2 Series: IR Fixed Field Range: 50 mm;
Input: 10-30 V dc Outputs: Complementary NPN 2 m cable
T18-2VPFF200-Q8
T18-2 Series: Fixed Field Range: 200 mm;
Input: 10-30 V dc Outputs: Complementary PNP 4-pin M12 Integral QD
T18-2VPFF50-Q8
T18-2 Series: Fixed Field Range: 50 mm;
Input: 10-30 V dc Outputs: Complementary PNP 4-pin M12 Integral QD
T18-2VPDS-Q8
T18-2 Series: Diffuse Short Range Reflective with Pot Range: 300 mm;
Input: 10-30 V dc Outputs: Complementary PNP 4-pin M12 Integral QD
T18-2NAES-Q8
T18-2 Series: Emitter with Pot Range: Variable to 25 m;
Input: 10-30 V dc Outputs: None 4-pin M12 Integral QD
T18-2VPFF30-Q5
T18-2 Series: Fixed Field Range: 30 mm;
Input: 10-30 V dc Outputs: Complementary PNP 6 in Pigtail 4-pin M12
T18-2VPDLIR-5M
T18-2 Series: Diffuse Reflective with Pot IR Range: 750 mm;
Input: 10-30 V dc Outputs: complementary PNP 5 m 4-conductor PVC Cable
T18-2VNDLIR-Q8
Diffuse Reflective with Pot IR Range: 750 mm;
Input: 10-30 V dc Outputs: Complementary NPN 4-pin M12 Integral QD
T18-2VPRL-Q8-G4
T18-2 Series: Reduced Gain (1/16) Receiver Range: 6 m;
Input: 10-30 V dc Outputs: Complementary PNP 4-pin M12 Integral QD
T18-2VPFF150IR-Q8
T18-2 Series: IR Fixed Field Range: 150 mm;
Input: 10-30 V dc Outputs: Complementary PNP 4-pin M12 Integral QD
T18-2VPFF200IR-2M
T18-2 Series: IR Fixed Field Range: 200 mm;
Input: 10-30 V dc Outputs: Complementary NPN 2 m cable
T18-2VNFF200IR-Q8
T18-2 Series: IR Fixed Field Range: 200 mm;
Input: 10-30 V dc Outputs: Complementary NPN 4-pin M12 Integral QD
T18-2VNFF100IR-9M
T18-2 Series: IR Fixed Field Range: 100 mm;
Input: 10-30 V dc Outputs: complementary NPN 9 m 4-conductor PVC Cable
T18-2VNFF150IR-Q8
T18-2 Series: IR Fixed Field Range: 150 mm;
Input: 10-30 V dc Outputs: Complementary NPN 4-pin M12 Integral QD
T18-2VNFF100IR-2M
T18-2 Series: IR Fixed Field Range: 100 mm;
Input: 10-30 V dc Outputs: complementary NPN 2 m 4-conductor PVC Cable
T18-2VPFF75IR-Q8
T18-2 Series: IR Fixed Field Range: 75 mm;
Input: 10-30 V dc Outputs: Complementary PNP 4-pin M12 Integral QD
T18-2VNFF50IR-2M
T18-2 Series: IR Fixed Field Range: 50 mm;
Input: 10-30 V dc Outputs: complementary NPN 2 m 4-conductor PVC Cable
T18-2VPFF50IR-9M
T18-2 Series: IR Fixed Field Range: 50 mm;
Input: 10-30 V dc Outputs: complementary PNP 9 m 4-conductor PVC Cable
T18-2VNFF200-Q8
T18-2 Series: Fixed Field Range: 200 mm;
Input: 10-30 V dc Outputs: Complementary NPN 4-pin M12 Integral QD
T18-2VNFF200-9M
T18-2 Series: Fixed Field Range: 200 mm;
Input: 10-30 V dc Outputs: complementary NPN 9 m 4-conductor PVC Cable
T18-2VPFF30IR-2M
T18-2 Series: IR Fixed Field Range: 30 mm;
Input: 10-30 V dc Outputs: Complementary NPN 2 m cable
T18-2VNFF30IR-Q8
T18-2 Series: IR Fixed Field Range: 30 mm;
Input: 10-30 V dc Outputs: Complementary NPN 4-pin M12 Integral QD
T18-2VNFF30IR-2M
T18-2 Series: IR Fixed Field Range: 30 mm;
Input: 10-30 V dc Outputs: complementary NPN 2 m 4-conductor PVC Cable
T18-2VNFF150-Q8
T18-2 Series: Fixed Field Range: 150 mm;
Input: 10-30 V dc Outputs: Complementary NPN 4-pin M12 Integral QD
T18-2VPFF150-2M
T18-2 Series: Fixed Field Range: 150 mm;
Input: 10-30 V dc Outputs: complementary PNP 2 m 4-conductor PVC Cable
T18-2VPFF150-Q8
T18-2 Series: Fixed Field Range: 150 mm;
Input: 10-30 V dc Outputs: Complementary PNP 4-pin M12 Integral QD
T18-2VPFF100-9M
T18-2 Series: Fixed Field Range: 100 mm;
Input: 10-30 V dc Outputs: complementary PNP 9 m 4-conductor PVC Cable
T18-2VPFF100-2M
T18-2 Series: Fixed Field Range: 100 mm;
Input: 10-30 V dc Outputs: complementary PNP 2 m 4-conductor PVC Cable
T18-2VPFF50-2M
T18-2 Series: Fixed Field Range: 50 mm;
Input: 10-30 V dc Outputs: complementary PNP 2 m 4-conductor PVC Cable
T18-2VPFF75-Q8
T18-2 Series: Fixed Field Range: 75 mm;
Input: 10-30 V dc Outputs: Complementary PNP 4-pin M12 Integral QD
T18-2VNFF100-9M
T18-2 Series: Fixed Field Range: 100 mm;
Input: 10-30 V dc Outputs: Complementary NPN 9 m cable
T18-2VNFF100-2M
T18-2 Series: Fixed Field Range: 100 mm;
Input: 10-30 V dc Outputs: complementary NPN 2 m 4-conductor PVC Cable
T18-2VNFF75-Q8
T18-2 Series: Fixed Field Range: 75 mm;
Input: 10-30 V dc Outputs: Complementary NPN 4-pin M12 Integral QD
T18-2VNFF50-Q8
T18-2 Series: Fixed Field Range: 50 mm;
Input: 10-30 V dc Outputs: Complementary NPN 4-pin M12 Integral QD
T18-2VNFF50-2M
T18-2 Series: Fixed Field Range: 50 mm;
Input: 10-30 V dc Outputs: complementary NPN 2 m 4-conductor PVC Cable
T18-2VPFF30-Q8
T18-2 Series: Fixed Field Range: 30 mm;
Input: 10-30 V dc Outputs: Complementary PNP 4-pin M12 Integral QD
T18-2VNFF30-Q8
T18-2 Series: Fixed Field Range: 30 mm;
Input: 10-30 V dc Outputs: Complementary NPN 4-pin M12 Integral QD
T18-2VPDL-9M
T18-2 Series: Diffuse Reflective with Pot Range: 750 mm;
Input: 10-30 V dc Outputs: complementary PNP 9 m 4-conductor PVC Cable
T18-2VPDL-2M
T18-2 Series: Diffuse Reflective with Pot Range: 750 mm;
Input: 10-30 V dc Outputs: complementary PNP 2 m 4-conductor PVC Cable
T18-2VPLPC-9M
T18-2 Series: Polarized Retroreflective with pot Range: variable to 6 m;
Input: 10-30 V dc Outputs: complementary PNP 9 m 4-conductor PVC Cable
