Cognex In-Sight 2000
Hatasız üretim için yüksek değer, basit kurulum ve modüler tasarım
- Varlık/yokluk ve renk doğrulama gibi temel denetim görevleri için hem monokrom hem de renkli sensör seçenekleri
- Otomatik odaklama (autofocus) teknolojisi sayesinde hat değişimlerinde manuel ayar gerektirmeyen kesintisiz çalışma
- Mini form faktörüyle en dar ve kısıtlı montaj alanlarında bile tam performanslı görüntüleme
Doğru seçim için destek olabiliriz: +90 533 049 96 24
08:30 – 17.30 | Pazartesi – Cumartesi
08:30 – 17.30 | Pazartesi – Cumartesi
Ürün Özellikleri
Açıklama
In-Sight 2000 Series Vision Sensors

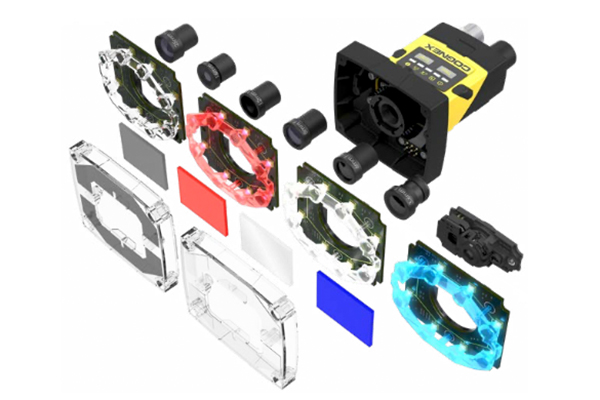

Modular design with field-changeable parts
A powerful combination of proven In-Sight vision tools and a modular design featuring field-changeable lighting and optics. This design provides maximum flexibility to mount in tight spaces and minimizes the need for new mechanical fixtures.
Simple setup with EasyBuilder interface
The In-Sight Explorer™ EasyBuilder interface provides fast, step-by-step application setup[cite: 5]. It allows even novice users to achieve extremely reliable inspection performance in nearly any production environment.
Autofocus lens for rapid changeovers
The integrated autofocus lens eliminates the need to manually refocus or adjust the mounting height of the sensor during line changeovers.
Compact and Mini form factors
Available in two form factors, including the In-Sight 2000 Mini which has a smaller footprint, making it ideal for mounting in extremely tight spaces.

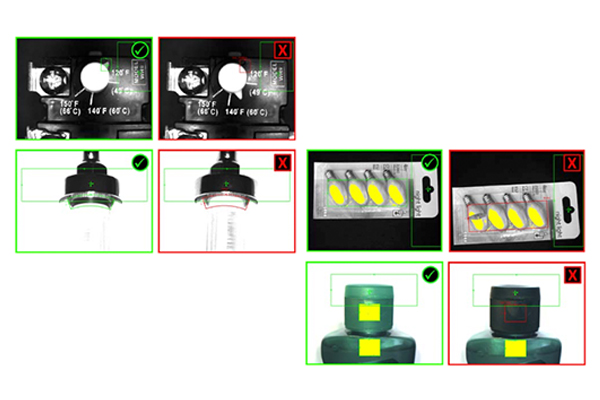

A solution for any industry
Reliable pass/fail results
In-Sight 2000 series vision sensors deliver simple pass/fail results across a wide range of applications in multiple industries[cite: 67]. Powerful vision tools deliver robust inspection results for parts in all shapes and sizes.
- Electronics: Detect the presence of gaskets in sub-assemblies.
- Automotive: Identify QA marks on automotive parts using pixel count tools.
- Food and Beverage: Inspect proper packaging for products using color pixel count tools.
Teknik Özellikler
Teknik Özellikler
In-Sight 2000 Series Specifications
| Specifications | 2000-110 | 2000-120 | 2000-130 | 2000-23M | 2000-120C | 2000-130C |
|---|---|---|---|---|---|---|
| User Interface | In-Sight Explorer EasyBuilder, Cognex VisionView PC Software and VisionView 900 HMI touchscreen panel | |||||
| 1/3″ CMOS Imager | Monochrome | Monochrome | Monochrome | Monochrome | Color | Color |
| S-Mount/M12 Lenses | Standard: Autofocus (liquid lens) 6.2 mm or manual focus 8 mm Optional: Manual focus 3.6 mm, 6 mm, 12 mm, 16 mm, 25 mm |
|||||
| Image Modes: 640 x 480 (standard) | Yes | Yes | Yes | Yes | Yes | Yes |
| Image Modes: 640 x 480 (2x magnification) | No | Yes | Yes | Yes | Yes | Yes |
| Image Modes: 800 x 600 (2x magnification) | No | No | Yes | Yes | No | Yes |
| Maximum Acquisition Speed | 40 fps | 75 fps | 75 fps | 75 fps | 55 fps | 55 fps |
| Relative Processing Speed | 1x | 2x | 2x | 2x | 2x | 2x |
| Location Tools (Pattern) | Yes | Yes | Yes | Yes | Yes | Yes |
| Location Tools (Edge, Circle) | No | No | Yes | Yes | No | Yes |
| Inspection Tools (Pixel Count) | No | Grayscale | Grayscale | Grayscale | Color | Color |
| Communications Protocols | EtherNet/IP, PROFINET, SLMP, SLMP Scanner, Modbus TCP, TCP/IP, UDP, FTP, Telnet (Native Mode), RS-232 | |||||
| Connectors | (1) Industrial M12 Ethernet, (1) M12 Power & I/O | |||||
| Dimensions | In-line: 92mm x 60mm x 52mm | Right-angle: 61mm x 60mm x 52mm | |||||
| Material and Protection | Painted aluminum, IP65-rated housing | |||||
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | |||||
