Cognex In-Sight 3800
Tam otomasyon için yüksek hız, yüksek çözünürlük ve yüksek esneklik
- Yapay zeka ve yüksek hızlı veri işleme ile güçlendirilmiş hızlandırılmış performans
- Gelişmiş görüntüleme ve optik teknolojisiyle rakipsiz hassasiyet
- Bütünleşik bir yazılım platformu tarafından desteklenen kolay ölçeklenebilirlik
Doğru seçim için destek olabiliriz: +90 533 049 96 24
08:30 – 17.30 | Pazartesi – Cumartesi
08:30 – 17.30 | Pazartesi – Cumartesi
Ürün Özellikleri
Açıklama

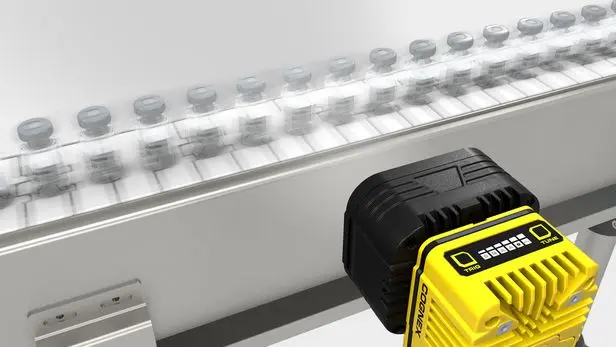

Accommodate the fastest line speeds
With 2X the processing power of previous vision systems, the In-Sight 3800 offers ultimate performance for any manufacturing application. Fast tool speeds keep pace with your operations, allowing you to maximize output and get the most out of your automation.

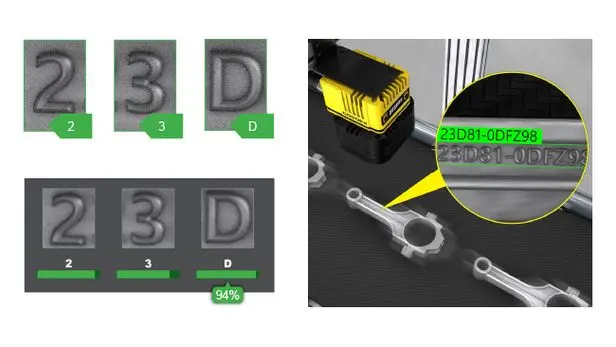

Automate in minutes with easy-to-use AI
In-Sight 3800 enables both beginners and experts to deploy reliable automation using simple, example-based training. With no need for advanced programming or AI expertise, users can train applications using as few as 5 to 10 sample images.

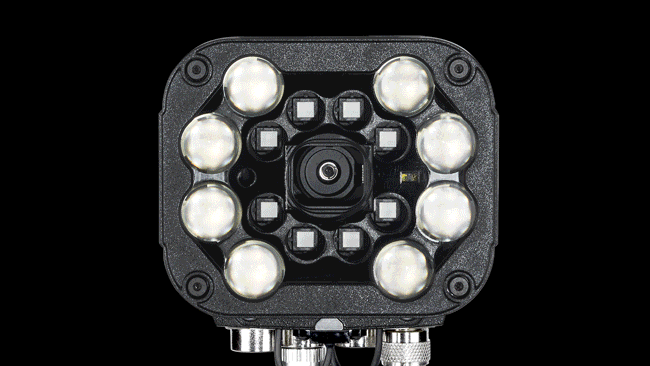

Meet higher quality standards with powerful image formation
Multi-color lighting (RGBW)
Capture high-resolution images in any environment with integrated multi-color lighting (RGBW and IR) that provides excellent contrast and illumination. Quickly adjust light color with a single click to enhance image quality and ensure accurate inspections across a range of applications.
HDR+ technology supports 80% faster line speeds
HDR+ automatically enhances contrast and image uniformity in a single acquisition, allowing you to see features that were not previously visible. By reducing exposure times, it also supports up to 80% faster line speeds, without compromising image quality.
Advanced lighting for long-range applications
Robust illumination, designed for the high-resolution In-Sight 3800, delivers stronger light intensity for sharper, higher-quality images. Available in red and white, these lights maximize scanning coverage and minimize exposure times to boost inspection speed and throughput.

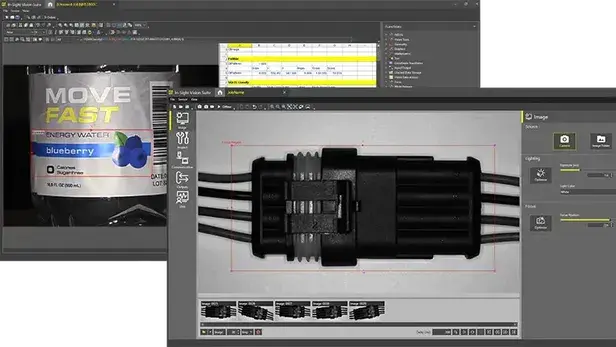

Unified software platform for all In-Sight devices
In-Sight Vision Suite delivers a unified, user-friendly software experience across all In-Sight vision systems. By working within a single, consistent environment, your team can reduce training time, streamline deployment, and scale automation effortlessly.

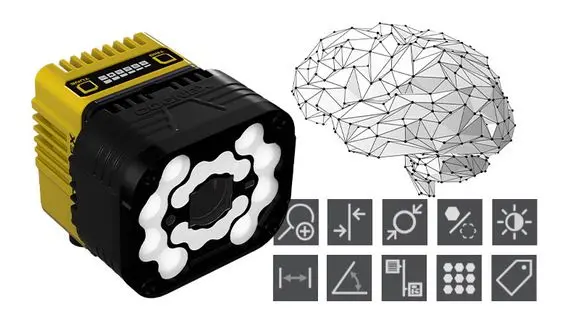

Simplify vision integration at any scale
Extensive toolset addresses tasks of varying complexity
Combine AI and rule-based tools to handle both simple and complex inspection tasks. Tools can be used individually or chained together for advanced logic and decision-making.
AI for everyone
Pre-trained AI simplifies automation across a range of inspection tasks, from basic presence/absence detection to advanced classification and text reading. Embedded AI tools deliver fast, reliable results in real time, helping you boost throughput, keep pace with your operations, and scale with ease.
AI-powered segmentation
Segment images to isolate specific regions for targeted inspection, from identifying unwanted defects to verifying critical components. Simply mark the region of interest, assign it a class, and the system reliably segments the correct features, even on varied parts and complex backgrounds.
AI-powered classification
Automatically sort parts or defects into categories based on user-defined features. This tool can distinguish between similar-looking objects and lets you inspect multiple areas at once.
AI-powered optical character recognition (OCR)
Read a wide range of text and font types, even on challenging surfaces like curved, reflective, or low-contrast materials. Choose from a ready-to-use mode for simple jobs or train it for more complex reading tasks.
Solve advanced jobs with proven rule-based tools
The In-Sight 3800 features a full set of industry-proven, rule-based tools that handle everything from measuring distances and angles to detecting patterns, counting pixels, reading codes, guiding robots, and performing math and logic operations.
Teknik Özellikler
Teknik Özellikler
Imaging and Performance
| Specifications | In-Sight 3801 | In-Sight 3803 | In-Sight 3805 | In-Sight 3808 | In-Sight 3812 | In-Sight 3816 |
|---|---|---|---|---|---|---|
| Pixel Size (µm square pixels) | 3.45 | – | – | – | – | – |
| Image Resolution (MP) | 1.6 | 3 | 5 | 8 | 12 | 16 |
| Lens Mount Type | C-Mount | C-Mount | C-Mount | C-Mount | C-Mount | C-Mount |
| Acquisition Speed (fps) | 125 | 47 | 32 | 24 | 22 | 18 |
| Light Type | Integrated or External | Integrated or External | Integrated or External | Integrated or External | Integrated or External | Integrated or External |
Connectivity and Communications
| Specifications | In-Sight 3801 | In-Sight 3803 | In-Sight 3805 | In-Sight 3808 | In-Sight 3812 | In-Sight 3816 |
|---|---|---|---|---|---|---|
| Discrete Inputs | 1 opto-isolated, acquisition trigger input. Up to 3 general-purpose inputs when connected to the Breakout cable. | 1 opto-isolated, acquisition trigger input. Up to 3 general-purpose inputs when connected to the Breakout cable. | 1 opto-isolated, acquisition trigger input. Up to 3 general-purpose inputs when connected to the Breakout cable. | 1 opto-isolated, acquisition trigger input. Up to 3 general-purpose inputs when connected to the Breakout cable. | 1 opto-isolated, acquisition trigger input. Up to 3 general-purpose inputs when connected to the Breakout cable. | 1 opto-isolated, acquisition trigger input. Up to 3 general-purpose inputs when connected to the Breakout cable. |
| Discrete Outputs | Up to 4 high-speed outputs when connected to the Breakout cable. | Up to 4 high-speed outputs when connected to the Breakout cable. | Up to 4 high-speed outputs when connected to the Breakout cable. | Up to 4 high-speed outputs when connected to the Breakout cable. | Up to 4 high-speed outputs when connected to the Breakout cable. | Up to 4 high-speed outputs when connected to the Breakout cable. |
| Status Outputs | Lights | Lights | Lights | Lights | Lights | Lights |
| Connectors | M12 12 Pin A-Coded | M12 12 Pin A-Coded | M12 12 Pin A-Coded | M12 12 Pin A-Coded | M12 12 Pin A-Coded | M12 12 Pin A-Coded |
| Network Communications | Link-local IP address configuration., 10/100/1000 BaseT with auto MDIX., IEEE 802.3 TCP/IP Protocol, 2 Ethernet ports, 1 USB-C port | Link-local IP address configuration., 10/100/1000 BaseT with auto MDIX., IEEE 802.3 TCP/IP Protocol, 2 Ethernet ports, 1 USB-C port | Link-local IP address configuration., 10/100/1000 BaseT with auto MDIX., IEEE 802.3 TCP/IP Protocol, 2 Ethernet ports, 1 USB-C port | Link-local IP address configuration., 10/100/1000 BaseT with auto MDIX., IEEE 802.3 TCP/IP Protocol, 2 Ethernet ports, 1 USB-C port | Link-local IP address configuration., 10/100/1000 BaseT with auto MDIX., IEEE 802.3 TCP/IP Protocol, 2 Ethernet ports, 1 USB-C port | Link-local IP address configuration., 10/100/1000 BaseT with auto MDIX., IEEE 802.3 TCP/IP Protocol, 2 Ethernet ports, 1 USB-C port |
| Communication Protocols | SLMP, RS-232, SFTP, TCP/IP, Ethernet/IP, Modbus TCP, PROFINET | SLMP, RS-232, SFTP, TCP/IP, Ethernet/IP, Modbus TCP, PROFINET | SLMP, RS-232, SFTP, TCP/IP, Ethernet/IP, Modbus TCP, PROFINET | SLMP, RS-232, SFTP, TCP/IP, Ethernet/IP, Modbus TCP, PROFINET | SLMP, RS-232, SFTP, TCP/IP, Ethernet/IP, Modbus TCP, PROFINET | SLMP, RS-232, SFTP, TCP/IP, Ethernet/IP, Modbus TCP, PROFINET |
Physical and Environmental
| Specifications | In-Sight 3801 | In-Sight 3803 | In-Sight 3805 | In-Sight 3808 | In-Sight 3812 | In-Sight 3816 |
|---|---|---|---|---|---|---|
| Maximum Operating Temperature (°C) | 40 | 40 | 40 | 40 | 40 | 40 |
| Minimum Operating Temperature (°C) | 0 | 0 | 0 | 0 | 0 | 0 |
| Materials | Die-cast Zinc housing | Die-cast Zinc housing | Die-cast Zinc housing | Die-cast Zinc housing | Die-cast Zinc housing | Die-cast Zinc housing |
Reliability and Compliance
| Specifications | In-Sight 3801 | In-Sight 3803 | In-Sight 3805 | In-Sight 3808 | In-Sight 3812 | In-Sight 3816 |
|---|---|---|---|---|---|---|
| Certifications | TÜV SÜD NRTL, CE, EU RoHS, FCC, KCC, China RoHS | TÜV SÜD NRTL, CE, EU RoHS, FCC, KCC, China RoHS | TÜV SÜD NRTL, CE, EU RoHS, FCC, KCC, China RoHS | TÜV SÜD NRTL, CE, EU RoHS, FCC, KCC, China RoHS | TÜV SÜD NRTL, CE, EU RoHS, FCC, KCC, China RoHS | TÜV SÜD NRTL, CE, EU RoHS, FCC, KCC, China RoHS |
Memory & Storage
| Specifications | In-Sight 3801 | In-Sight 3803 | In-Sight 3805 | In-Sight 3808 | In-Sight 3812 | In-Sight 3816 |
|---|---|---|---|---|---|---|
| Job Program Memory | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
