In-Sight SnAPP
Hatasız üretim için yüksek değer, basit kurulum ve modüler tasarım
- Varlık/yokluk ve renk doğrulama gibi temel denetim görevleri için hem monokrom hem de renkli sensör seçenekleri
- Otomatik odaklama (autofocus) teknolojisi sayesinde hat değişimlerinde manuel ayar gerektirmeyen kesintisiz çalışma
- Mini form faktörüyle en dar ve kısıtlı montaj alanlarında bile tam performanslı görüntüleme
Doğru seçim için destek olabiliriz: +90 533 049 96 24
08:30 – 17.30 | Pazartesi – Cumartesi
08:30 – 17.30 | Pazartesi – Cumartesi
Ürün Özellikleri
Açıklama
Streamline quality control with a smart, all-in-one vision sensor
Embedded AI
Simplify setup and find subtle, variable anomalies.
Real-time training feedback
View results in real time to verify performance and identify potential issues early.
1-click image optimization
Capture high-resolution images in a single click.
Fixturing capabilities
Fix your region of interest to locate parts and features in any position.
Compact size
Easily add automation anywhere in your facility.

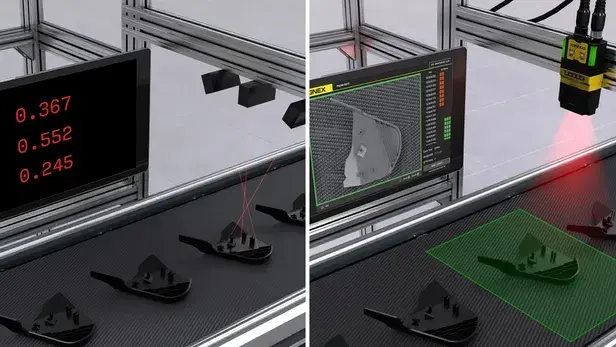

Overcome the limitations of lasers with machine vision
Powered by AI and image-based analysis, In-Sight SnAPP vision sensors outperform traditional photoelectric, proximity, and optical sensors. These capabilities help you improve product quality and optimize machine performance.
- Finding subtle anomalies
- Eliminating false positives/negatives
- Handling variation
- Locating features and parts in any position
Limitations of laser sensors
- Multi-device setup increases maintenance time and costs
- Narrow region of interest means alignment must be precisely on target
- Knowledge of mechanical fixturing required
- Use case is only presence/absence detection
Benefits of using In-Sight SnAPP
- Single device setup pinpoints source of errors for faster maintenance
- Wide region of interest handles misalignment and positional changes
- No technical expertise required
- Wide range of use cases including: Sortation, Counting, OCR, and Assembly verification
Solve inspections with ease
Guided setup
Reduce downtime with fast, intuitive setup.
Web-based UI
Plug in and run In-Sight SnAPP from anywhere, no software needed.
No code training
Train jobs using a few sample images.
Streamlined integration
Replace multiple laser-based sensors with a single vision sensor.

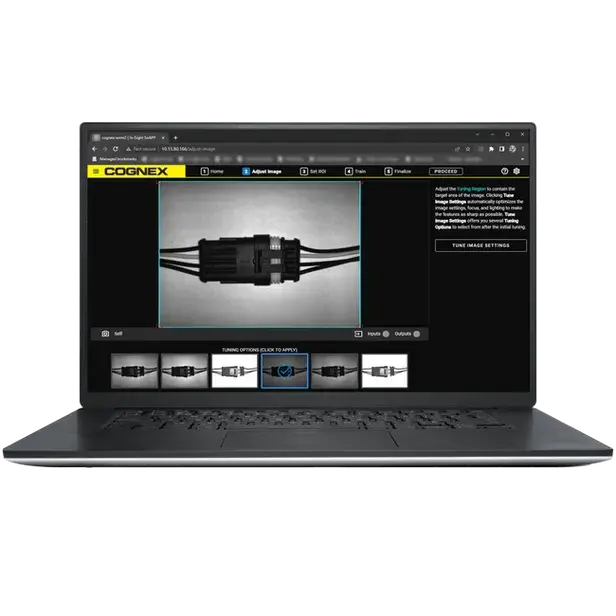

Take the complexity out of training
In-Sight SnAPP vision sensors are trained through a web-based user interface (UI), which eliminates the need to download and install software. Using the browser of your choice, you can access the training UI from anywhere and immediately begin building your application.

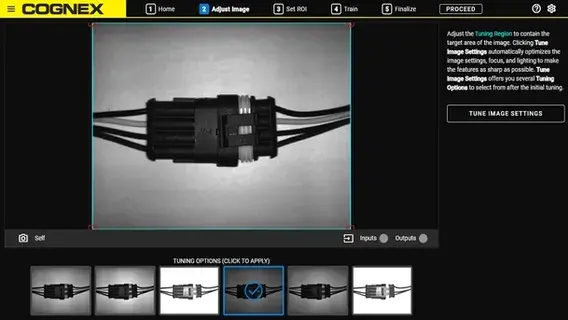

The user-friendly interface guides you step-by-step through setup, from image capture to final result.
Teknik Özellikler
Teknik Özellikler
Imaging and Performance
| Specifications | In-Sight SP2801 SnAPP |
|---|---|
| Image Resolution (MP) | 1.6 |
| Lens Mount Type | Integrated |
| Acquisition Speed (fps) | 10 |
| Light Type | Integrated |
Connectivity and Communications
| Specifications | In-Sight SP2801 SnAPP |
|---|---|
| Discrete Inputs | VIL: ≤ ± 6 V VIH: ≥ ± 12 V I TYP: 4.2 mA @ 24 V |
| Discrete Outputs | I MAX: 50 mA VOL: ≤ ± 3 V @ 50 mA |
| Connectors | M12 12 Pin A-Coded |
| Communication Protocols | Ethernet 10/100/1000. Full duplex or half duplex |
Physical and Environmental
| Specifications | In-Sight SP2801 SnAPP |
|---|---|
| Maximum Operating Temperature (°C) | 40 |
Reliability and Compliance
| Specifications | In-Sight SP2801 SnAPP |
|---|---|
| Certifications | CE, EU RoHS, FCC, KCC, TUV, UK CA |
