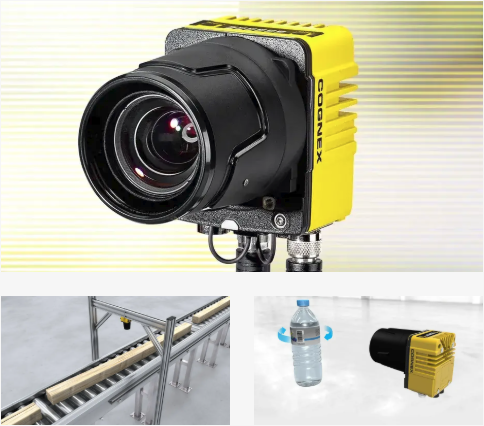

Cognex In-Sight 3800 Line Scan
Yapay Zeka Destekli, Yüksek Hızlı ve Yüksek Çözünürlüklü Line Scan Kamerası
In-Sight 3800 Line Scan, zorlu üretim uygulamaları için özel olarak tasarlanmış yüksek hızlı ve yüksek çözünürlüklü bir kameradır. Gelişmiş yapay zeka ve ultra hızlı işleme kapasitesi sayesinde, en küçük ayrıntıları ve kusurları üretim hattı hızında dahi kusursuz bir şekilde tespit eder. Sürekli üretim hatları (web), silindirik yüzeyler, büyük parçalar ve karmaşık geometrilere sahip nesneler üzerindeki detaylı denetim süreçlerini kolaylıkla yönetir.
Doğru seçim için destek olabiliriz: +90 533 049 96 24
08:30 – 17.30 | Pazartesi – Cumartesi
08:30 – 17.30 | Pazartesi – Cumartesi
Ürün Özellikleri
Açıklama
Line scan vs. area scan technology: choosing the right solution for your application
When it comes to industrial imaging, understanding the differences between line scan and area scan technology is crucial for selecting the right solution. Here’s a breakdown of how each technology works and their intended use cases.
Line scan technology
- How it works: Builds images line-by-line as objects move past the sensor, ideal for fast or continuously moving objects.
- Best use cases: Inspecting continuous materials like webs and textiles, cylindrical objects, complex surfaces, and large parts.
Area scan technology
- How it works: Captures the entire image in a single snapshot, ideal for static or objects moving at a moderate pace.
- Best use cases: Inspecting parts on a production line where items remain stationary for short periods.
Enhance quality control with image overlap technology
The In-Sight 3800 Line Scan uses advanced image overlap technology to deliver full-coverage, highly detailed inspections, ensuring superior quality control on fast-moving production lines.
- Improved accuracy: Capture overlapping sections for complete inspection coverage, reducing the risk of missed defects and ensuring consistent product quality.
- Seamless high-speed inspection: Perfect for high-speed production environments, ensuring no areas are overlooked, even with fast-moving lines.
Simplify deployment with a unified software and complete toolset
One software experience across all In-Sight systems
The In-Sight 3800 Line Scan uses In-Sight Vision Suite, a common platform that simplifies how you build, deploy, and manage vision applications. With a consistent interface across all In-Sight devices, users can cut down on training, accelerate setup, and expand automation efforts with ease.
Comprehensive toolset for every automation need
From basic inspections to specialized applications, the In-Sight 3800 Line Scan brings AI and traditional vision tools together in one high-performance system. Use the tools individually for simple tasks, or combine them to tackle more complex automation challenges.
AI tools
With powerful AI tools running directly on the device, the In-Sight 3800 Line Scan enables real-time decision-making and easy setup, even for users without prior experience.
- Segmentation: Highlight and separate defects, regions, and objects from complex parts and backgrounds.
- Classification: Identify and sort parts based on unique features or characteristics.
- Optical character recognition (OCR): Read characters on reflective, low-contrast, and non-flat surfaces.
Rule-based tools
The In-Sight 3800 Line Scan also includes a full library of industry-proven, traditional vision tools and algorithms – such as Measure Distance, Pixel Count, Count Patterns, and Math and Logic tools – providing reliable performance for a wide range of inspection tasks.
Teknik Özellikler
Teknik Özellikler
Imaging and Performance
| Specifications | In-Sight 3800L | In-Sight 3802L | In-Sight 3804L |
|---|---|---|---|
| Image Sensor | 1″ CMOS, 14 µm x 14 µm square pixels | 1″ CMOS, 7 µm x 7 µm square pixels | 1″ CMOS, 3.45 x 3.45 µm square pixels |
| Image Resolution (K) | 1 | 2 | 4 |
| Image Resolution (MP) | – | 2048 | 4096 |
| Lens Mount Type | C-Mount | C-Mount | C-Mount |
| Acquisition Speed (fps) | 169000 | 169000 | 84000 |
| Light Type | External | External | External |
Connectivity and Communications
| Specifications | In-Sight 3800L | In-Sight 3802L | In-Sight 3804L |
|---|---|---|---|
| Discrete Inputs | 1 opto-isolated, acquisition trigger input. Up to 3 general-purpose inputs when connected to the Breakout cable. | 1 opto-isolated, acquisition trigger input. Up to 3 general-purpose inputs when connected to the Breakout cable. | 1 opto-isolated, acquisition trigger input. Up to 3 general-purpose inputs when connected to the Breakout cable. |
| Discrete Outputs | Up to 4 high-speed outputs when connected to the Breakout cable. | Up to 4 high-speed outputs when connected to the Breakout cable. | Up to 4 high-speed outputs when connected to the Breakout cable. |
| Status Outputs | Lights | Lights | Lights |
| Connectors | M12 12 Pin A-Coded | M12 12 Pin A-Coded | M12 12 Pin A-Coded |
| Network Communications | Link-local IP address configuration., 10/100/1000 BaseT with auto MDIX., IEEE 802.3 TCP/IP Protocol, 2 Ethernet ports, 1 USB-C port | Link-local IP address configuration., 10/100/1000 BaseT with auto MDIX., IEEE 802.3 TCP/IP Protocol, 2 Ethernet ports, 1 USB-C port | Link-local IP address configuration., 10/100/1000 BaseT with auto MDIX., IEEE 802.3 TCP/IP Protocol, 2 Ethernet ports, 1 USB-C port |
| Communication Protocols | SLMP, RS-232, SFTP, TCP/IP, Ethernet/IP, Modbus TCP, PROFINET | SLMP, RS-232, SFTP, TCP/IP, Ethernet/IP, Modbus TCP, PROFINET | SLMP, RS-232, SFTP, TCP/IP, Ethernet/IP, Modbus TCP, PROFINET |
Physical and Environmental
| Specifications | In-Sight 3800L | In-Sight 3802L | In-Sight 3804L |
|---|---|---|---|
| Maximum Operating Temperature (°C) | 40 | 40 | 40 |
| Minimum Operating Temperature (°C) | 0 | 0 | 0 |
| Materials | Die-cast Zinc housing | Die-cast Zinc housing | Die-cast Zinc housing |
Reliability and Compliance
| Specifications | In-Sight 3800L | In-Sight 3802L | In-Sight 3804L |
|---|---|---|---|
| Certifications | – | TÜV SÜD NRTL, CE, EU RoHS, FCC, KCC, China RoHS | TÜV SÜD NRTL, CE, EU RoHS, FCC, KCC, China RoHS |
Memory & Storage
| Specifications | In-Sight 3800L | In-Sight 3802L | In-Sight 3804L |
|---|---|---|---|
| Job Program Memory | 7.2 | 7.2 | 7.2 |
